    PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW
    PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW
    PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW
    PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW

    PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW

    Power output (continuous): 60 kVA
    Peak power (5s): 120 kW
    Voltage: 400/230 V
    Frequency: 50 Hz
    Phases: 3
    Battery specifications
    Battery (type): Li-Ion LFP
    Nominal battery voltage: 48 V
    Battery life (at 90% DoD): 6000 cycles
    Nominal battery capacity (size): 96 kWh
    AC-side usable energy (@90% DoD): 82 kWh
    System throughput: 125 A
    Length (L): 2240 mm
    Width (W): 1160 mm
    Height (H): 2018 mm
    Weight: 2250 kg
    Discharge temperature range: -10...45 °C
    Charging temperature range: 0...45 °C

    Custom Quote
    Product: PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW

    PERSONAL DATA


    Ask a question
    Product: PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW
    Offer on letterhead
    Product: PRAMAC OFF GRID LX LFP 60/100 PORTABLE BATTERY 100KW
    PRAMAC
    YH600T2T000

    Data sheet

    Phase
    Single phase / Three phase
    Maximum power three phase (KW)
    120
    Continuous power three phase (KVA)
    60
    Frequency (Hz)
    50
    Voltage (V)
    230 / 400
    Battery type
    Li-Ion NMC LFP
    Length (mm)
    1160
    Width (mm)
    1160
    Height (mm)
    2018
    Battery voltage (V)
    48
    Weight (Kg)
    2250
    AC-side usable energy (@90% DoD)
    82 kWh
    Nominal battery capacity
    96 kWh
    System passage capacity
    125 A
    Discharge temperature range
    -10...45 °C
    Charging temperature range
    0...45 °C

    Specific References

    New

    PRAMAC OFF GRID LX 60/100 LFP PORTABLE BATTERY 100KW

    PRAMAC Off Grid LX LFP PORTABLE BATTERY: the ideal battery energy storage system for every need

    PRAMAC Off Grid LX LFP is a universal energy storage system (BESS) ideal for a wide range of applications. It provides reliable energy in the most economical and environmentally friendly way, thanks to its innovative features and versatility.

    Main features PRAMAC Off Grid LX LFP

    PRAMAC Off Grid LFP lithium-ion deep cycle battery module: PRAMAC Off Grid LX LFP is a state-of-the-art technology that guarantees high energy density, long life and excellent safety.

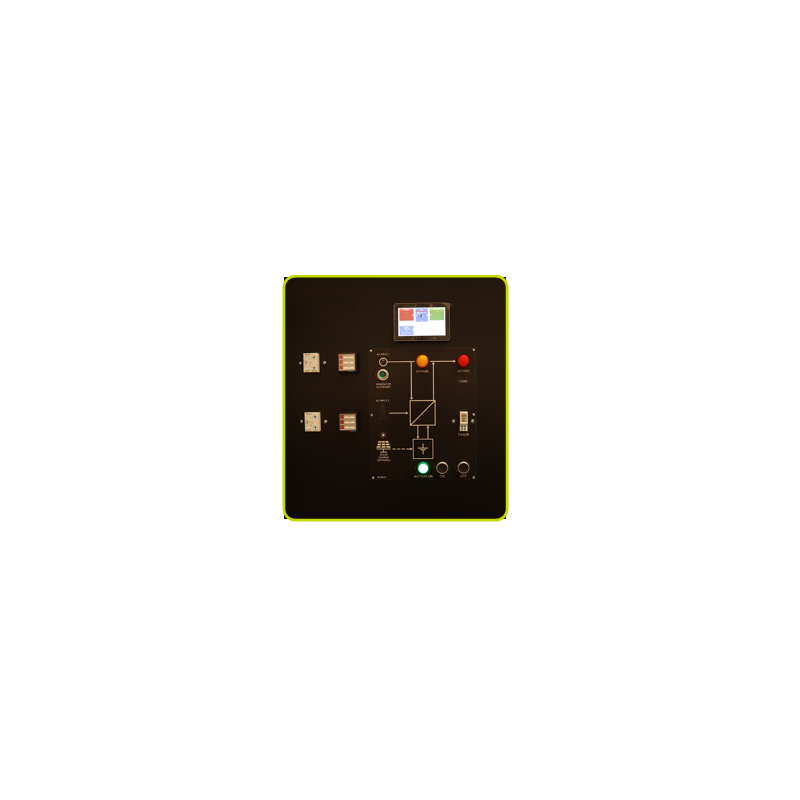

    Advanced control with touch screen display: Pramac Off Grid LX LFP is equipped with an intuitive control panel for quick and easy monitoring and performance management.

    Remote monitoring via GSM can be monitored remotely via a dedicated app, allowing you to check performance anytime and from anywhere.

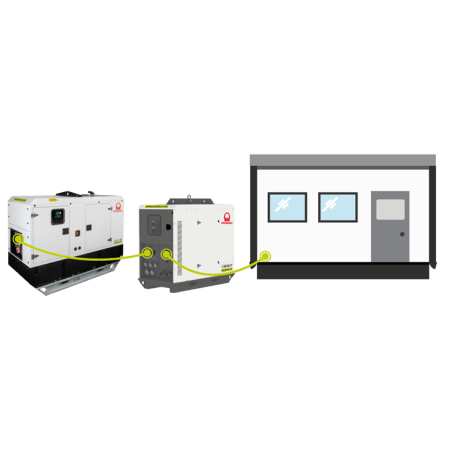

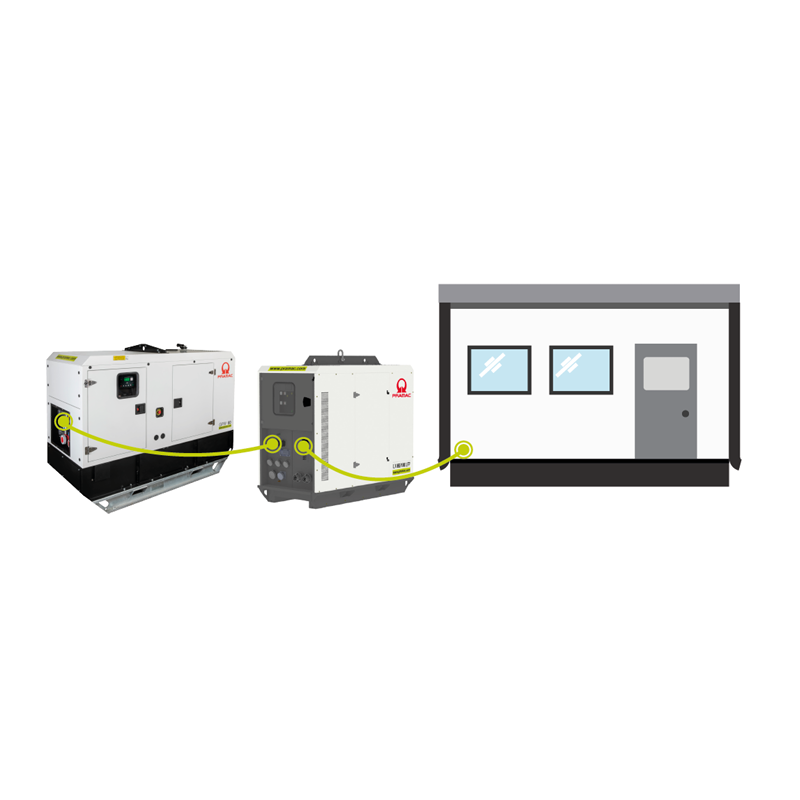

    PRAMAC Off Grid PORTABLE BATTERY  LX LFP Full system auto bypass: in the event of a system failure, power is automatically supplied from the grid or diesel generator.

    PRAMAC off Grid Auto remote generator call: Pramac in the event of a power failure, the system can automatically call a diesel generator to restore power.

    Technical Specifications PRAMAC Off Grid LX LFP:

    Power output (continuous): 60 kVA
    Peak power (5s): 120 kW
    Voltage: 400/230 V
    Frequency: 50 Hz
    Phases: 3
    Battery specifications
    Battery (type): Li-Ion LFP
    Nominal battery voltage: 48 V
    Battery life (at 90% DoD): 6000 cycles
    Nominal battery capacity (size): 96 kWh
    AC-side usable energy (@90% DoD): 82 kWh
    System throughput: 125 A
    Length (L): 2240 mm
    Width (W): 1160 mm
    Height (H): 2018 mm
    Weight: 2250 kg
    Discharge temperature range: -10...45 °C
    Charging temperature range: 0...45 °C

    Instruments, controls and connections

    Inverter protection: short circuit, overload, overtemperature

    Discover the full range the entire range of PRAMAC off Grid storage systems or portable batteries or other specialized brands. Visit the dedicated section by clicking HERE.

    The images and technical data are not binding and may be subject to revisions by the manufacturer.
