FENZI G4 Tank 1000LT

FENZI G4 1000L Tank

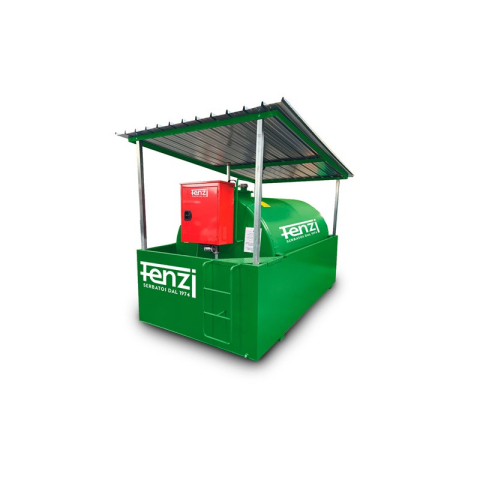

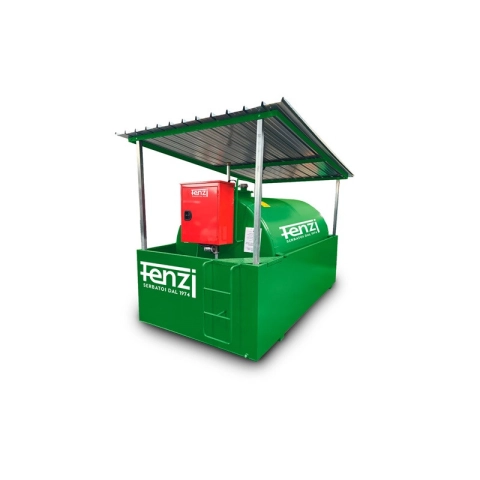

The FENZI G4 E50 V 1000 CUBE50 is a diesel fuel tank approved in accordance with Italian Ministerial Decree D.M. 31/07/1934, Title I No. XVII, and authorised by the Ministry of the Interior in compliance with D.M. 22/11/2017. It is an ideal solution for farms, construction sites, workshops and small vehicle fleets that need to store and dispense diesel fuel safely and conveniently.

The vertical-axis tank has a nominal capacity of 975 litres and features a 110% containment bund, green paint finish, Ø 400 mm manhole with bolted cover and gasket, lockable 3” quick-fill connection and an approved overfill prevention valve set at 90% of the geometric capacity.

The tank is complete with an external fuel level indicator, vent outlet positioned 240 cm above the walking surface, anti-roll feet, anchoring brackets, bottom drain with safety cap and raised external suction point to facilitate fuel settling. It also includes a non-return valve, ball valve and an earth bonding/grounding connection point.

The supply includes the CUBE 50 dispensing unit, housed in a powder-coated metal cabinet with key lock. The unit features a self-priming vane pump with bypass, 230 V power supply, 50 litres/minute flow rate, line filter, non-commercial flow meter with resettable partial counter and progressive totaliser, 4-metre rubber hose and automatic dispensing nozzle.

The IP55 electrical control panel includes an on/off switch, emergency push button and pump shut-off system at minimum fuel level. Overall dimensions: 1400 × 1250 × H 1790 mm. Weight: 350 kg.

Images and technical data are for guidance only. Always check the product configuration, supplied equipment and documentation before purchasing.

If you are looking for a product similar to the FENZI G4 1000L Tank but with different features, click HERE.

Images and technical data are for guidance only.

```
