ELE11 TANK

Reference ELE11

Product type. Tank for fuels and flammable materials
Axis: Horizontal
Capacity: 1100 Litres
Diameter: 1100 mm
Length: 1226 mm
Width: 1230 mm
Height: 715 mm
With 110% retention basin

Product Details
Description

Fluid type: Diesel
Diameter (Ø): 1100 mm
Tank capacity (L): 1100
Length (mm): 1400
Width (mm): 1300
Height (mm): 1100
Oil fuel transfer pump: Optional

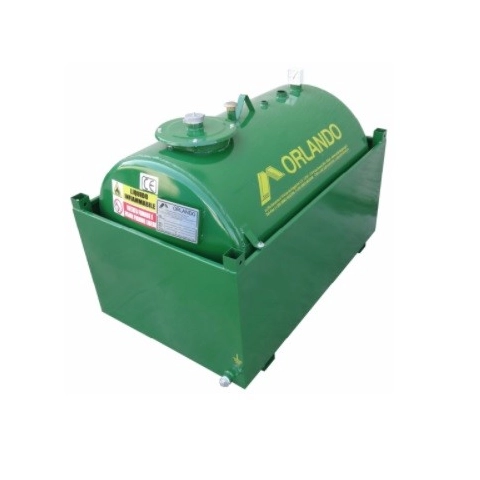

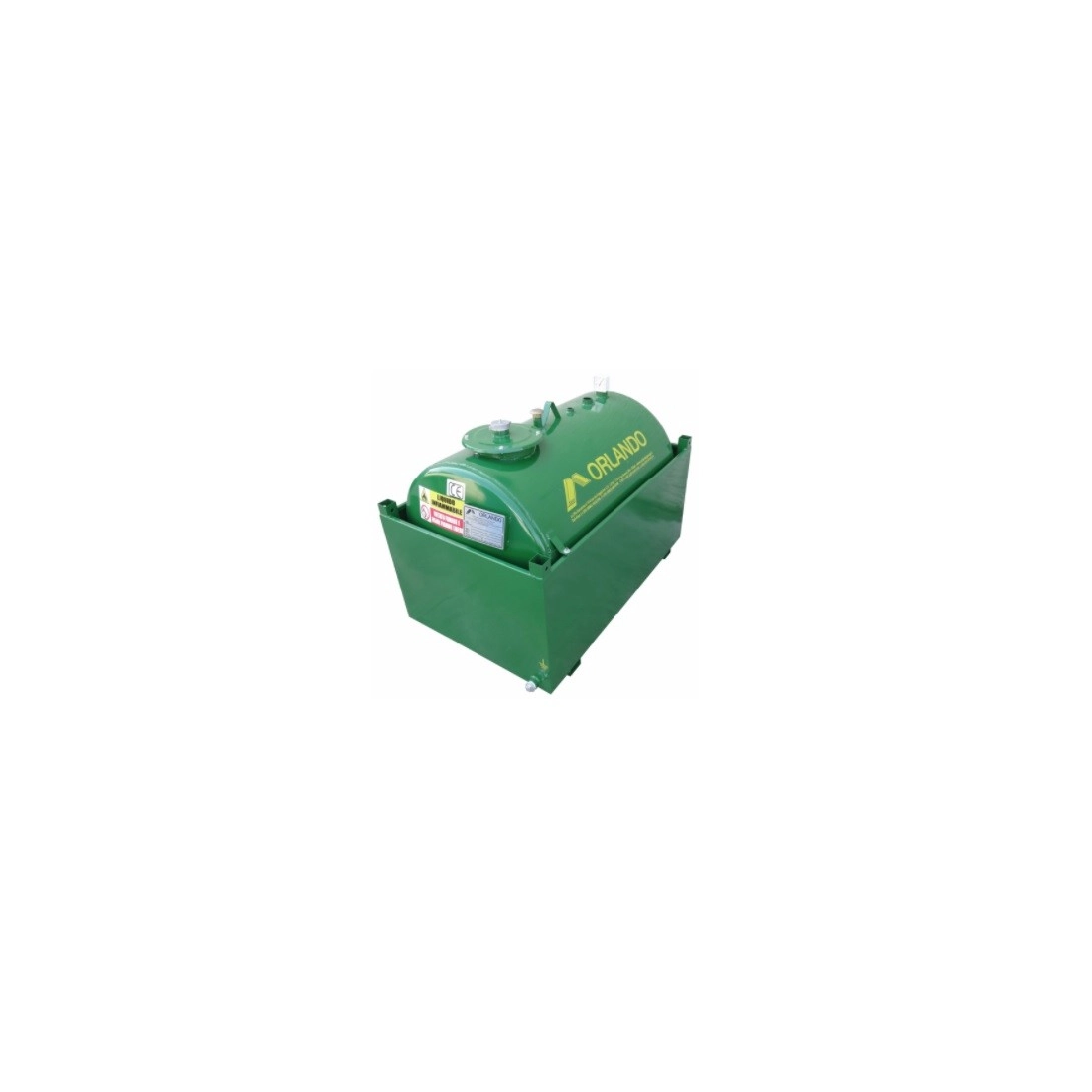

ELE11 TANK FOR FLAMMABLE LIQUIDS AND FUEL CAPACITY 1100 LITRES

ELE11 is a large tank for flammable liquids and fuel, with horizontal axis, 1100 Litres capacity, suitable for storage, powering generators, burners and heating.

ELE11 is a cylindrical tank with horizontal or vertical axis in S235JR carbon steel sheet (UNI-EN 10025) with a thickness of 20/10 0 30/10 mm, externally treated against corrosion by pickling the sheets, zinc chrome anti-rust primer and finishing with bi-component enamel.
The painting of ELE11 is carried out in the spray booth with scrupulous reduction of polluting agents in respect of the environment.

ELE11 is complete with containment basin with a volumetric capacity equal to 110% of that of the tank.

TECHNICAL CHARACTERISTICS OF ELE11

Product type. Tank for fuels and flammable materials
Axis: Horizontal
Capacity: 1100 Litres
Diameter: 1100 mm
Length: 1226 mm
Width: 1230 mm
Height: 715 mm
With 110% retention basin

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
