TELAIR TSP 130W

Name: TELAIR TSP 130W
Brand: TELAIR
SKU: 19735
Price: 256.2 EUR
Availability: InStock

Reference 19735

Rated power (Pmax): 130W
Rated voltage Pmax (Vmp): 18.36V
Rated current Pmax (Imp): 7.10A
Open circuit voltage (Voc): 22.03V
Short-circuit current (Isc): 7.80A
Maximum system voltage: 1000VDC (IEC)
Class of application: Class A
Maximum overcurrent: 15 A
Operating temperature: 85% Rh -40°C~ +85°C
Nominal cell operating temperature (NOCT): 47 ± 2°C
Front cover: 3.2 mm tempered glass
Monocrystalline cells (pcs and dimensions): 36 - 156x156mm
Frame: anodized aluminum alloy
Junction box (degree of protection): IP65
Cable (length/section): 650 mm/4 mm2
Connector (degree of protection): IP65
Module dimensions (WxHxD) (without feet): 1160x830x35 mm
STC| radiation 1000W/m2, cell temperature 25°C, air mass AM 1.5 according to EN60904-3
Average efficiency reduction: 4.5% at 200W/m2 according to EN60904-1
Weight: 11.6 Kg

List price

313.54 € tax incl.

257.00 € tax excl.

Discounted Price

256.20 € tax incl.

210.00 € tax excl.

Shipping from 24.40 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 19735

Data sheet

Nominal voltage Umpp STC 25°C (V): 18.36
Nominal current Impp STC 25°C (A): 7.10
Net power (kW): 0.13
Length (mm): 1160
Width (mm): 550
Height (mm): 35
Cell composition: Monocristalline 156x156 mm
Weight (Kg): 11.7

Specific References

Condition New

Solar panel 130W, with 6 mt cable, accessories kit (4 feet inABS+spoiler, aluminium cable gland, 10A/12V battery charger regulator for 1 battery, and cleaning and fixing kit(TEROSON MS930)

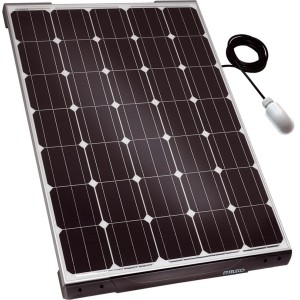

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
