TELAIR TSP 100W SOLAR PANEL FOR VEHICLES
15925
DISCONTINUED PRODUCT
Rated power (Pmax): 100W
Rated voltage Pmax (Vmp): 18.5V
Rated current Pmax (Imp): 5.41A
Open circuit voltage (Voc): 22.7V
Short-circuit current (Isc): 5.75A
Maximum system voltage: 1000VDC (IEC)
Class of application: Class A
Maximum overcurrent: 10 A
Operating temperature: 85% Rh -40°C~ +85°C
Nominal cell operating temperature (NOCT): 46 ± 2°C
Front cover: 3.2 mm tempered glass
Monocrystalline cells (pcs and dimensions): 36 - 125x125mm
Frame: anodized aluminum alloy
Junction box (degree of protection): IP65
Cable (length/section): 650 mm/4 mm2
Connector (degree of protection): IP65
Module dimensions (WxDxH) (without feet): 1195x550x40 mm
STC| radiation 1000W/m2, cell temperature 25°C, air mass AM 1.5 according to EN60904-3
Average efficiency reduction: 4.5% at 200W/m2 according to EN60904-1
Weight: 7.75 Kg
Prezzo
262.00 € tax excl.
319.64 € tax incl.
Shipping from 24.40 € to Italy buy it today.
Calculate Shipping Cost
15925
Data sheet
- Nominal voltage Umpp STC 25°C (V)
- 18.5
- Nominal current Impp STC 25°C (A)
- 5.41
- Net power (kW)
- 0.1
- Length (mm)
- 1195
- Width (mm)
- 550
- Height (mm)
- 40
- Cell composition
- Monocrystalline 125x125 mm
- Weight (Kg)
Specific References
100W solar panel, with 6 mt cable, accessory kit (4 feet in ABS+spoiler, aluminium cable gland, 10A/12V battery charger regulator for 1 battery, and cleaning and fixing kit (TEROSON MS930)

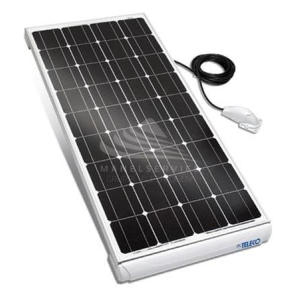

The image is purely indicative.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.4 other products in the same category:
