Mobile Energy Storage System for Rent Three-Phase
SAEMTN
Continuous power [kW] 11
Peak power 15
Battery capacity (Wh) 22
Discharge time [h] 2 (100% load)
Discharge time [h] 4 (50% of the load)
Nominal Battery Voltage [V]. 44
Output voltage [V] 400 (AC) 50 Hz
Frequency (Hz) 50
Output current [A] 3P 16A
Output socket CEE 1P+N+PE (16A)
Charging socket CEE 1P+N+PE (16-32 A)
Type of magazine Embedded
Charging power [kW] 3,5-7
Charging time [h] 3,142857143
Connectivity LTE-MQTT
Remote panel LED + Connected App
Battery type Li-Ion NMC
Product dimensions (mm) 1040 x 610 x 400
Weight (Kg) 115
Temperature [°C] -10+40
IP Protection IP31
Guaranteed cycles (80%) 1500
SAEMTN
Data sheet
- Frequency (Hz)
- 50
- Product dimensions (mm)
- 1040 x 610 x 400
- Battery capacity (Wh)
- 22
- Remote panel
- LED + Connected App
- Weight (Kg)
- 115
- Peak power
- 15
- Continuous power [kW]
- 11
- Discharge time [h]
- 2 (100% load)
- Discharge time [h]
- 4 (50% of the load)
- Nominal Battery Voltage [V].
- 44
- Output voltage [V]
- 400 (AC) 50 Hz
- Output current [A]
- 3P 16A
- Output socket
- CEE 1P+N+PE (16A)
- Charging socket
- CEE 1P+N+PE (16-32 A)
- Type of magazine
- Embedded
- Charging power [kW]
- 3,5-7
- Charging time [h]
- 3,142857143
- Connectivity
- LTE-MQTT
- Battery type
- Li-Ion NMC
- Temperature [°C]
- -10+40
- IP Protection
- IP31
- Guaranteed cycles (80%)
- 1500
Specific References

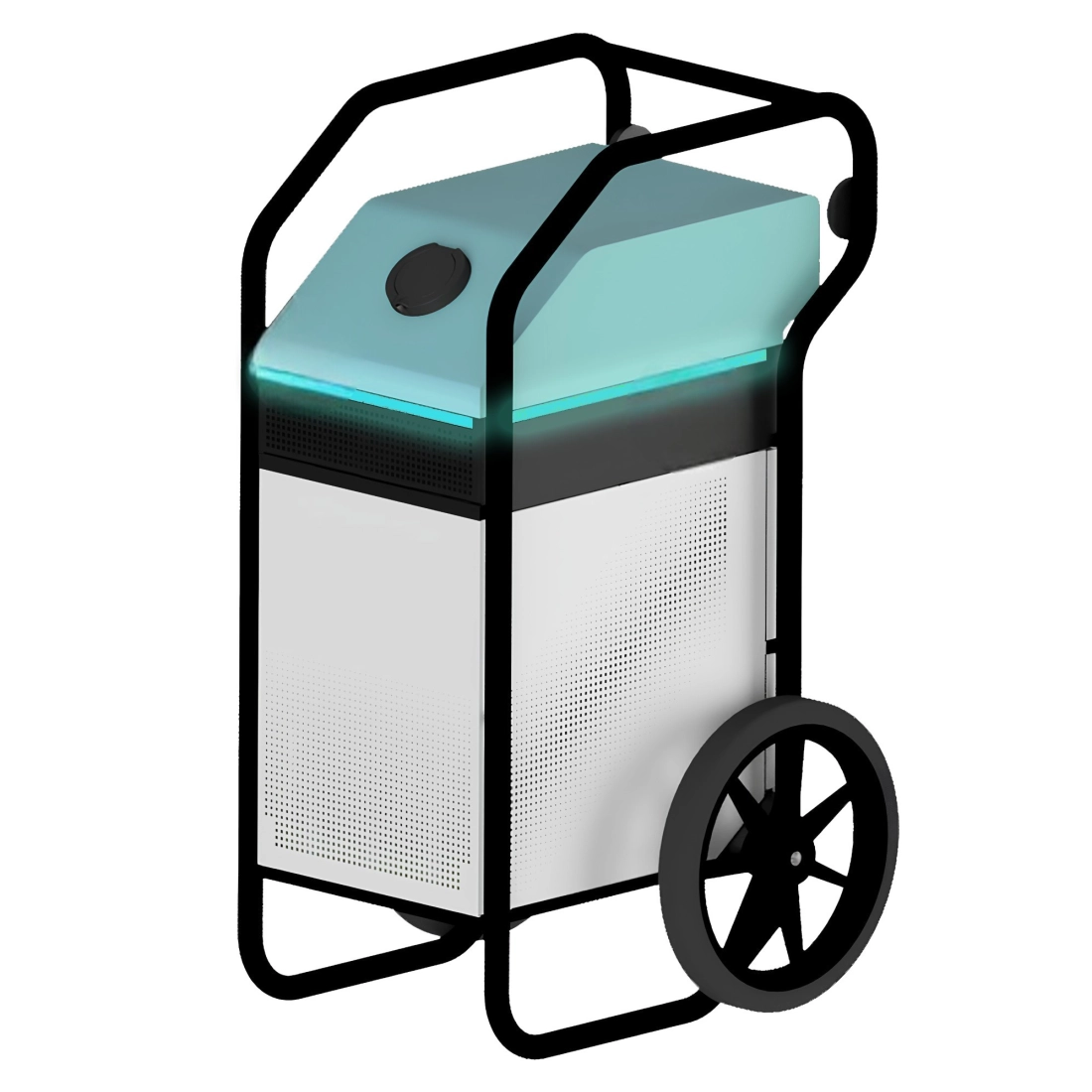

Mobile Energy Storage System for Rent Three-Phase
Mobile Energy Storage System for Rent Three-Phase: Mobile Energy, Evolved Power
Mobile Energy Storage System for Rent Three-Phase represents the evolution of portable energy storage systems, offering even higher performance and flexibility to meet the most demanding requirements. Designed for professional applications, this innovative device is the ideal solution to ensure power supply anywhere, anytime.
Key Features:
Increased Power: With a continuous power output of 7.4 kW and a peak power output of 10 kW, the Mobile Energy Storage System for Rent Three-Phase offers superior power delivery, ideal for powering a wide range of equipment and tools.
Increased Capacity: With a capacity of 22 kWh, the Mobile Energy Storage System for Rent Three-Phase provides greater autonomy, allowing extended use without the need for frequent recharging.
Rapid Recharge: The integrated 3.5-7 kW charger allows the battery to be fully recharged in just over 3 hours, ensuring a rapid return to operation.
Advanced Connectivity: LTE-MQTT connectivity and a dedicated app allow constant monitoring of the battery status and remote management of the system.
Robustness and Durability: Built with high quality materials and designed to withstand demanding operating conditions, the Mobile Energy Storage System for Rent Three-Phase ensures reliability and long life.
Safety: The integrated battery management system (BMS) ensures maximum safety during use and charging.
Caratteristiche Tecniche Mobile Energy Storage System for Rent Three-Phase:
Potenza Continua[kW] 11
Potenza di picco 15
Capacità batterie (Wh) 22
Tempo di scarica [h] 2 (100% del carico)
Tempo di scarica [h] 4 (50% del carico)
Tensione Nominale Batteria [V] 44
Tensione in uscita [V] 400 (AC) 50 Hz
Frequenza (Hz) 50
Corrente in uscita [A] 3P 16A
Presa di uscita CEE 1P+N+PE (16A)
Presa di ricarica CEE 1P+N+PE (16-32 A)
Tipo di caricatore Embedded
Potenza di ricarica [kW] 3,5-7
Tempo di ricarica [h] 3,142857143
Connettività LTE-MQTT
Pannello di controllo LED + Connected App
Tipo batterie Li-Ion NMC
Dimensioni prodotto (mm) 1040 x 610 x 400
Peso (Kg) 115
Temperatura [°C] -10+40
Protezione IP IP31
Cicli garantiti (80%) 1500
If you are looking for a product with similar characteristics CLICK HERE.
Images and technical data are purely indicative.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
