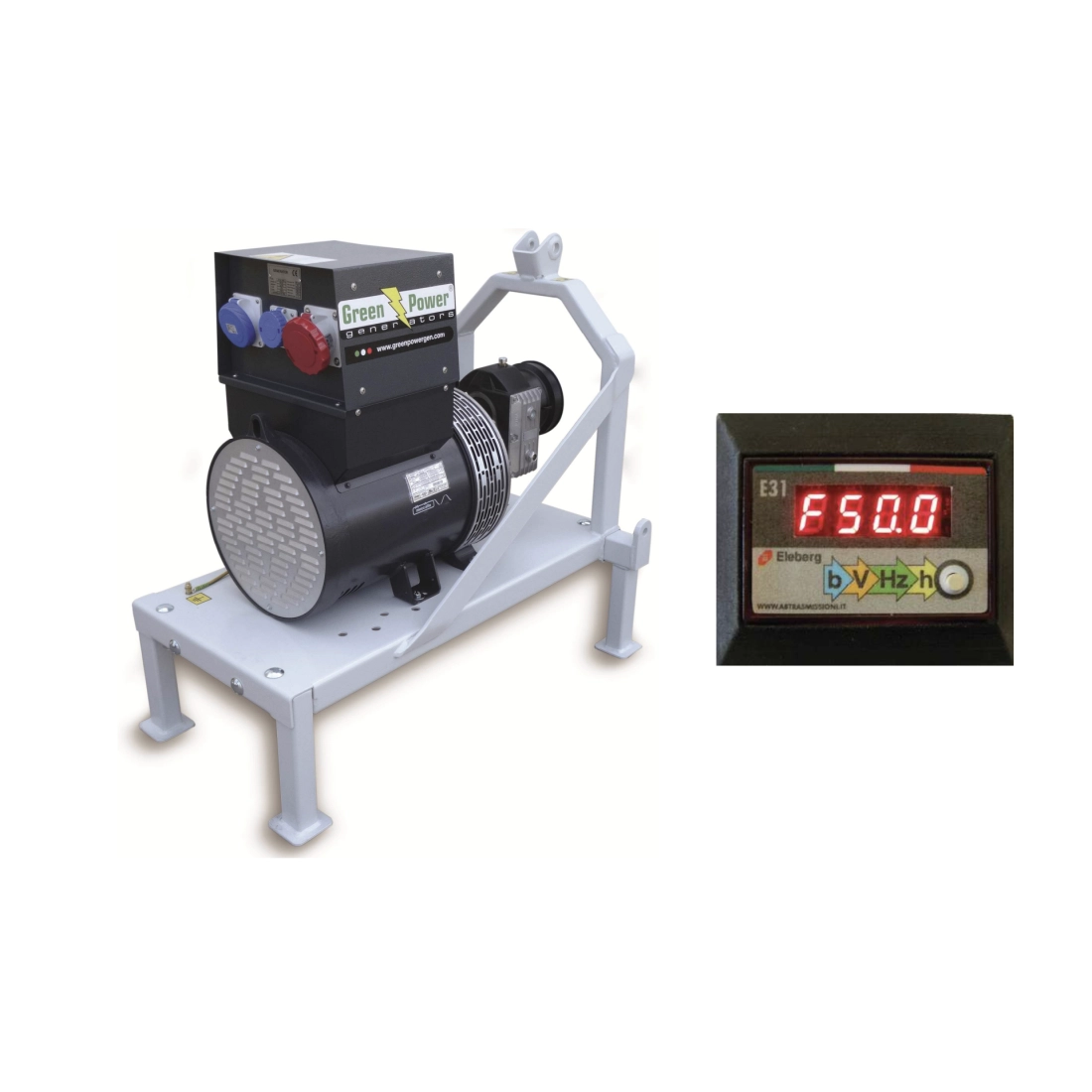

Green Power PTO Generator 20KVA 400/230V

The Green Power PTO Generator 20KVA 400/230V is a robust and versatile power unit, ideal for applications requiring stable three-phase power. With a maximum power of 20 kVA (equivalent to 13 kW) for continuous use, this Green Power generator is capable of handling significant loads in agricultural or industrial environments. The unit is designed to operate at a standard frequency of 50 Hz and offers a dual output voltage of 400/230 V, allowing it to power both three-phase machinery and single-phase consumers. The heart of the system is a high-quality MECC ALTE ECP28-M/4 4-pole alternator, which operates at a controlled speed of 1500 rpm to ensure reliability and long life. Despite its performance, the generator maintains relatively compact dimensions (805 mm long, 580 mm wide, and 985 mm high) and a dry weight of just 175 kg, facilitating positioning. Finally, it features an IP23 protection rating, which makes it resistant to light atmospheric agents and ensures safe operation in various operating contexts.

Technical Features Green Power 20KVA PTO Generator :

Phase type: Single-phase / Three-phase

Continuous three-phase power (KW):13

Continuous three-phase power (KVA):20

Frequency (Hz):50

Voltage (V):400/230

Engine speed (rpm): 1500

Alternator: MECC ALTE ECP28-M/4 (*)

Number of poles: 4

Length (mm): 805

Width (mm): 580

Height (mm): 985

Dry weight (Kg): 175

Protection rating: IP23

Are you looking for a cardan shaft generator with different technical characteristics? HERE you can find the entire range or other brands specialized in the sector.
