AGROWATT AWB 4-32X PTO Generator Single Phase/ Three Phase 32.4 kVA AVR

Brand: AGROWATT

Reference: 113904

Condition: New product

Phase type: Single-phase / Three-phase
Engine revs (rpm): 1500
Minimum tractor power (Hp): 95
Maximum single phase power (kVA): 13
Maximum power Three-phase (kVA): 32.4
PTO rpm: 430
Voltage (V): 230 / 400
Frequency (Hz): 50
Length (mm): 1135
Width (mm): 640
Height (mm): 915
Weight (Kg): 248
AVR

Technical features

Phase: Single phase / Three phase
Maximum power single phase (KVA): 13
Maximum power three phase (KVA): 32.5
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration
Engine rpm (rpm): 1500
Poles: 4
Protection degree: IP44
PTO speed (round/min): 430
Minimum tractor output (HP): 95
Transmission ratio: 1 : 3.5
Length (mm): 1135
Width (mm): 640
Height (mm): 915
Dry weight (Kg): 248
Brushes: No
Voltage regulator: AVR

Details

- For outdoor applications (field and home), in case of blackouts and in areas not served by the power grid
- Supplied with multiplier kit and protection, support with 3-point attachment (patented design), electrical panel with multifunction digital display for real-time data reading (voltmeter, frequency meter, ammeter, hour meter)
- Durability over time and maximum protection (thermal-magnetic and differential)
- Warranty 24 months
- Easy packaging and subsequent storage

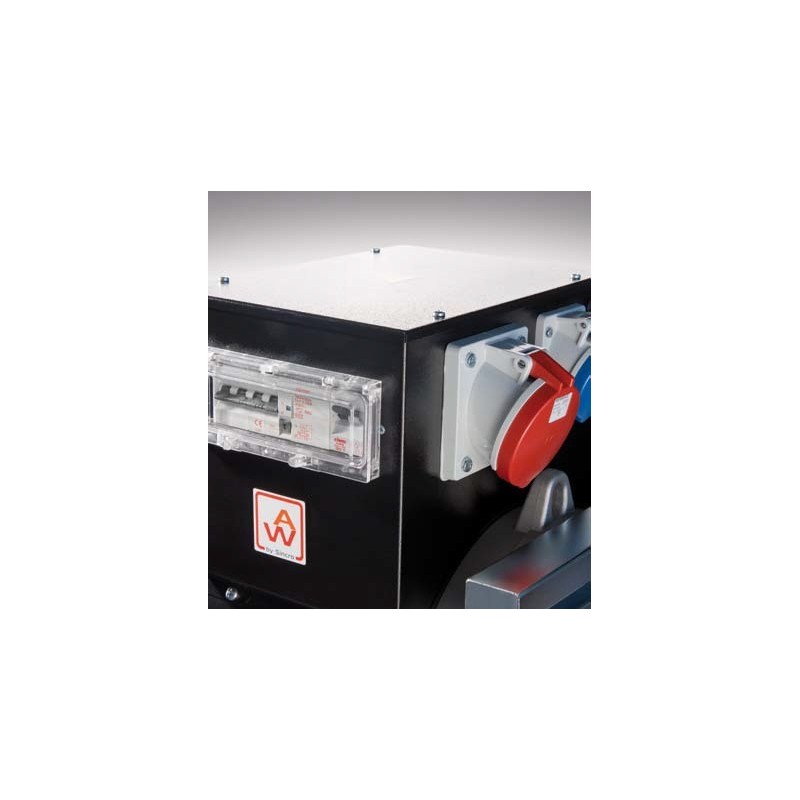

Control Panel with:

• 1 CEE 400V (3P+N+E) 63A
• 1 CEE 230V (2P+E) 32A
• 1 schuko
• single phase thermal protection
• 4-pole magnetothermic switch + earth leakage breaker (ld=0,03A) + 2 pole magnetothermic switch + IP65 cover
• voltmeter + frequencymeter + ammeter + hour counter (digital measurement instrument)

Non-binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.

Technical Sheet / Manuals
