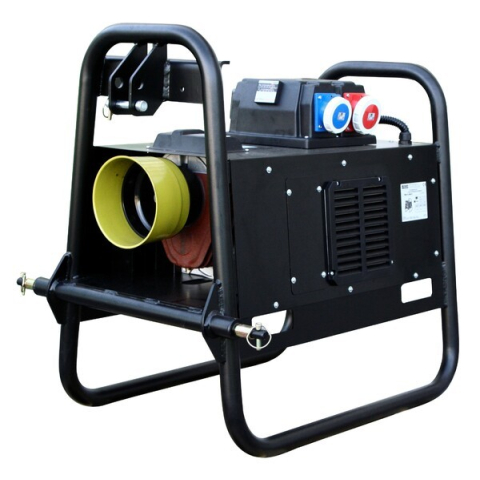

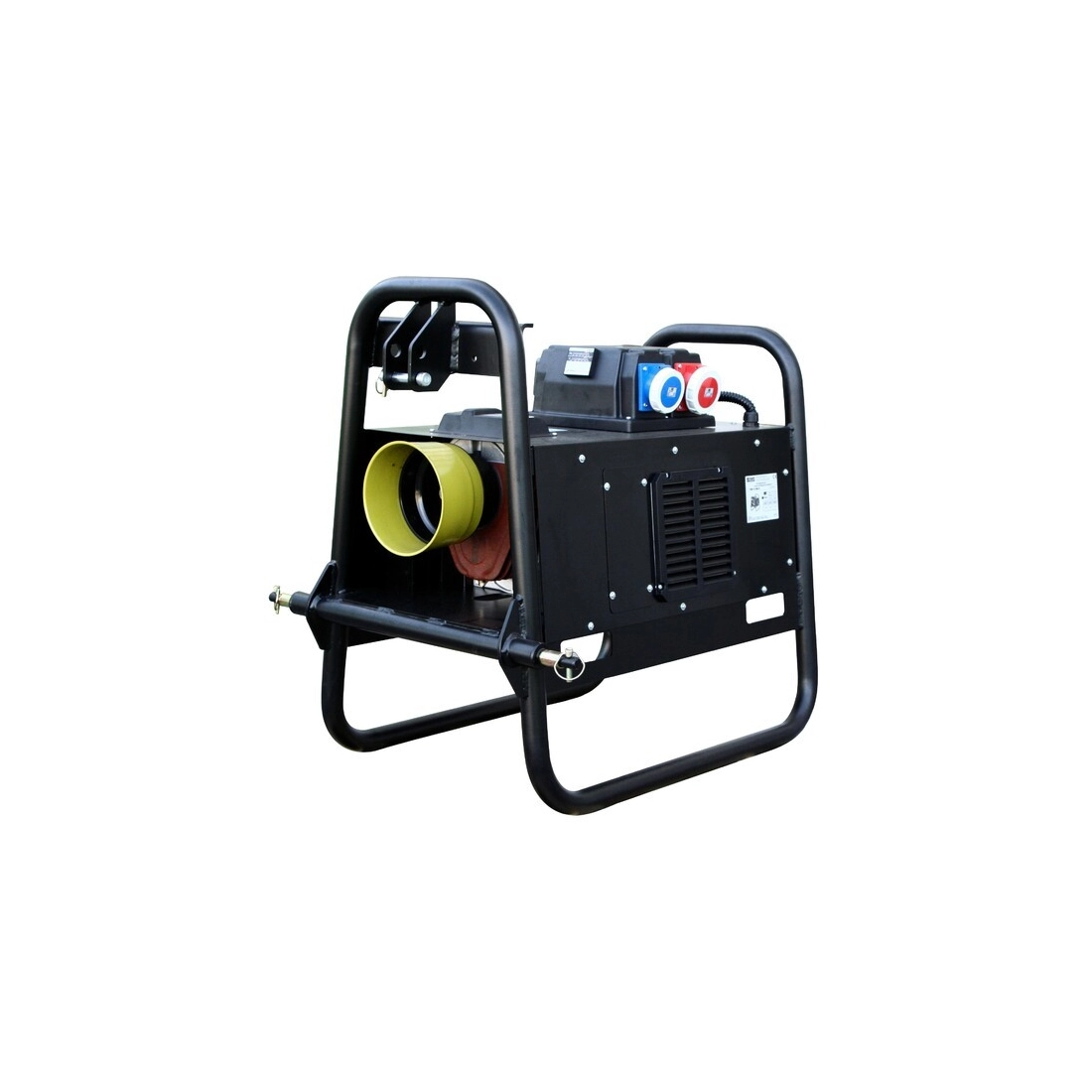

PRAMAC TG20/3 IP44 with RTE Single-phase-Three-phase Cardan Generator 18kVA

PRAMAC TG20/3 IP44 with RTE PTO Generator Single/Three-Phase 18 KVA

PRAMAC TG20/3 IP44 with RTE PTO generator, 9 KVA single-phase and 18 KVA three-phase, with tractor connection at 3000 rpm. The PRAMAC TG20/3 IP44 PTO generator has a voltage of 230 V / 400 V and a frequency of 50 Hz. The alternator of the PRAMAC TG20/3 IP44 PTO generator has a compound voltage regulator. The compound regulator stabilizes the voltage and prevents damage to connected devices. The TG20/3 IP44 PTO generator is highly reliable as it has been built and designed using high-quality materials.
Easy to transport, install, and position thanks to its compact size, this model is ideal for mounting on a tractor unit. The PRAMAC TG20/3 IP44 PTO generator requires a tractor power of 37 kW / 50 HP and a PTO speed of 435 rpm.

Technical specifications of the PRAMAC TG20/3 IP44 PTO Generator Single/Three-Phase:
Continuous power single-phase: 9 kVA
Continuous power three-phase: 18 kVA
Voltage: 230 V / 400 V
Frequency: 50 Hz
PTO speed: 435 rpm
Required tractor power: 37 kW / 50 HP
Length: 958 mm
Width: 645 mm
Height: 1003 mm
Weight: 160 kg
Compound

Outlets:
N.1 SCHUKO 230V 16A IP54
N.1 2P+T CEE 230V 32A IP44
N.1 3P+N+T CEE 400V 32A IP44

The PRAMAC TG20/3 IP44 PTO generator is a professional tractor-driven unit developed by Pramac, making it one of the best choices compared to its competitors. The PRAMAC TG20/3 IP44 PTO generator features a robust structure with a protective tubular frame. This series is the ideal solution for agricultural applications and also allows access to hard-to-reach areas even under adverse weather conditions.
The TG20/3 IP44 PTO generator is equipped with thermal-magnetic protection, residual current protection, voltmeter, frequency meter, and out-of-limit voltage protection (min–max).

If you are looking for a PTO generator like the PRAMAC TG20/3 IP44 single/three-phase tractor-driven unit, we recommend browsing our catalog of PTO generators to find the one that best suits your needs.
