      2011148

      Contents of the kit box 750s:

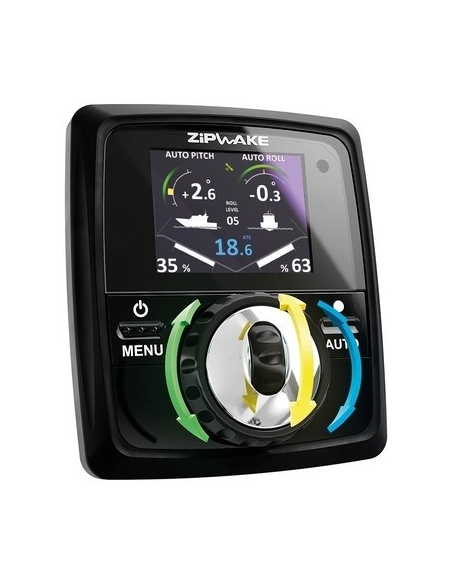

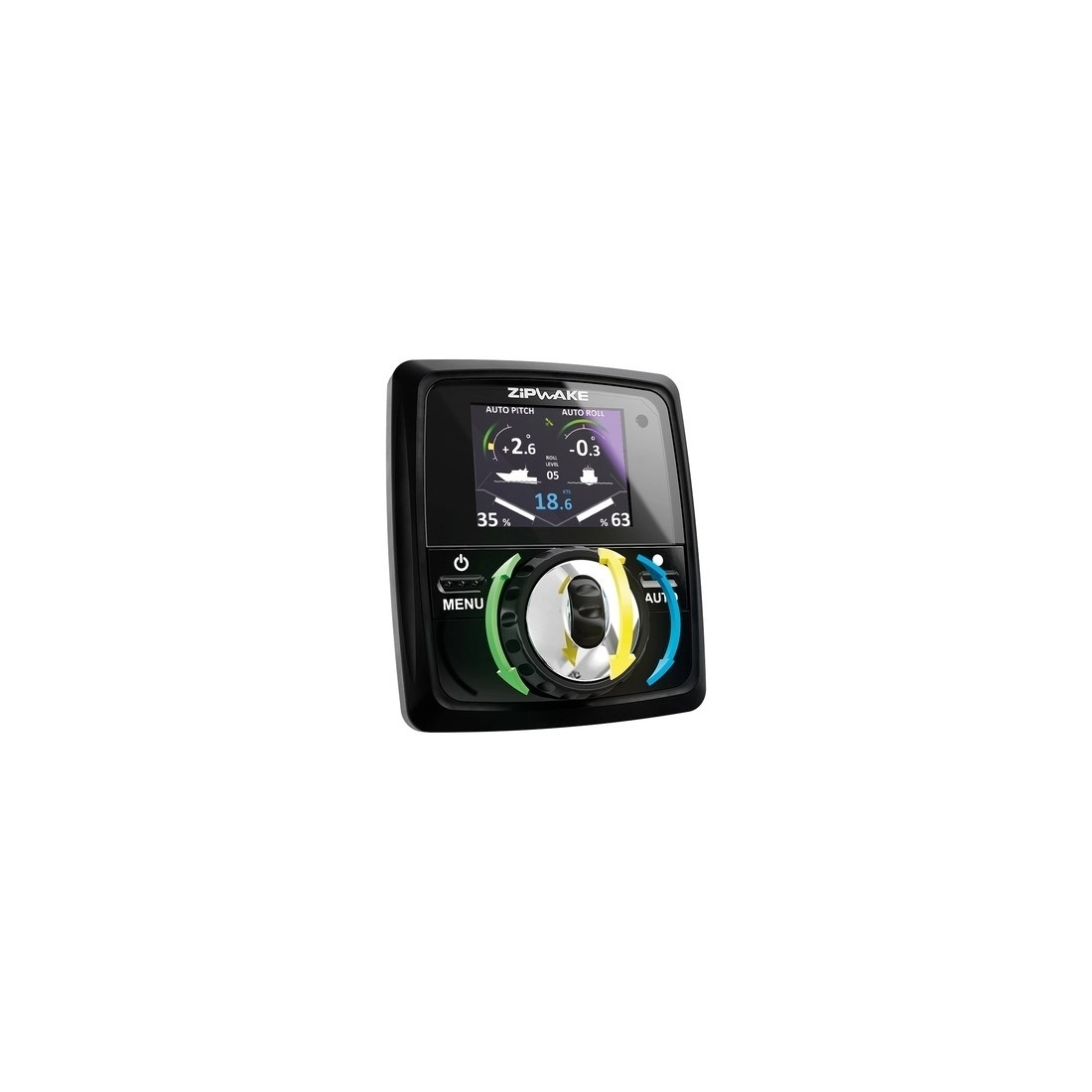

      - 1 Control panel with 7 metres of standard cable
      - 1 Distribution unit with 4 metres of power cable
      - 2 750s interceptors with 3 metres of cable and cable cover
      - 1 x 3 m extension cable

      Custom Quote
      Product: KIT BOX ZIPWAKE 750S

      PERSONAL DATA


      Ask a question
      Product: KIT BOX ZIPWAKE 750S
      Offer on letterhead
      Product: KIT BOX ZIPWAKE 750S
      ZIPWAKE
      2011148

      Data sheet

      Voltage (V)
      12 - 32
      Power cable length (m)
      4 +7 + 3
      Length (mm)
      155
      Width (mm)
      980
      Height (mm)
      275
      Product type
      Dynamic Trim Control System
      Weight (Kg)
      11.7
      Video
      -E1WngJGVcg

      Specific References

      New

      ZIPWAKE KIT BOX 750S DYNAMIC ASSET CONTROL SYSTEM FOR BOATS


      \""zipwake

      ZIPWAKE box 750s is an all inclusive KIT for dynamic control for the trim of boats containing:

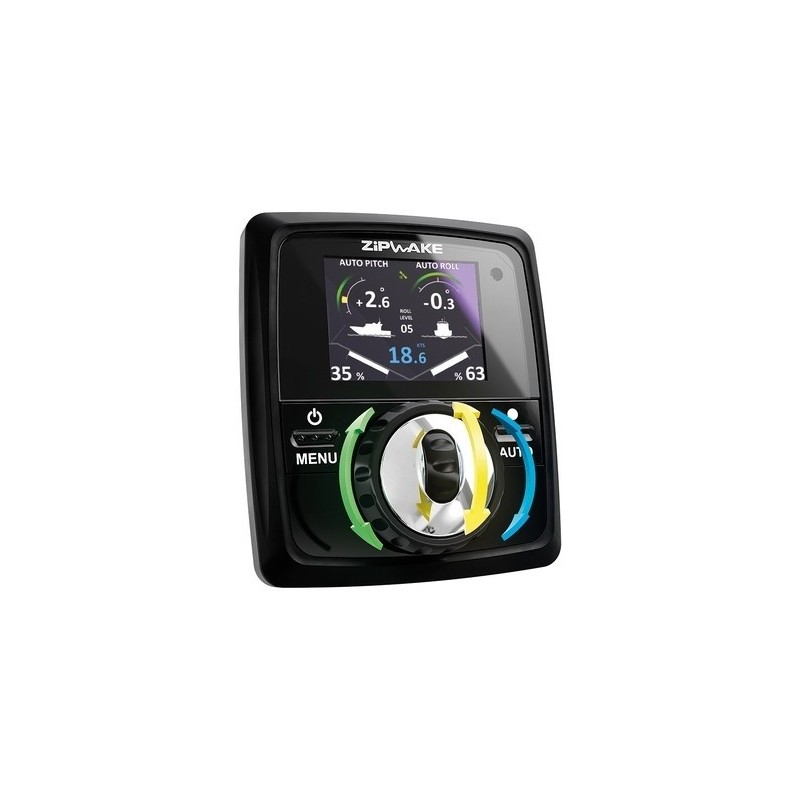

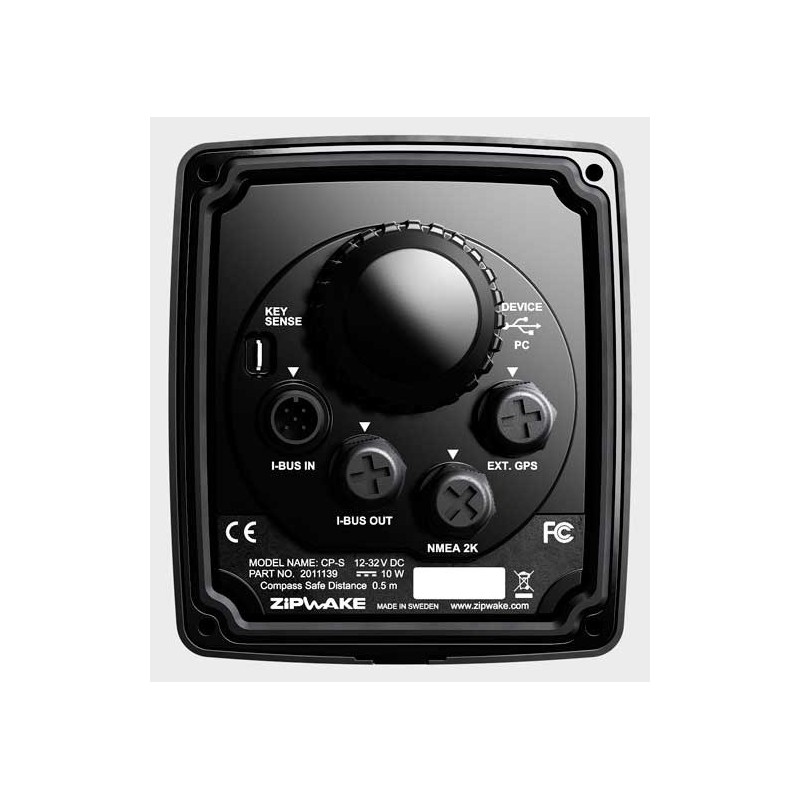

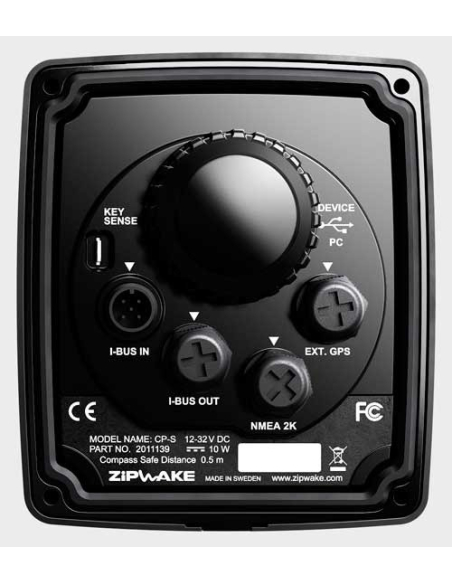

      - 1 Control Panel complete with 7 mt of standard cable
      - 1 Distribution Unit with 4 mt of power cable

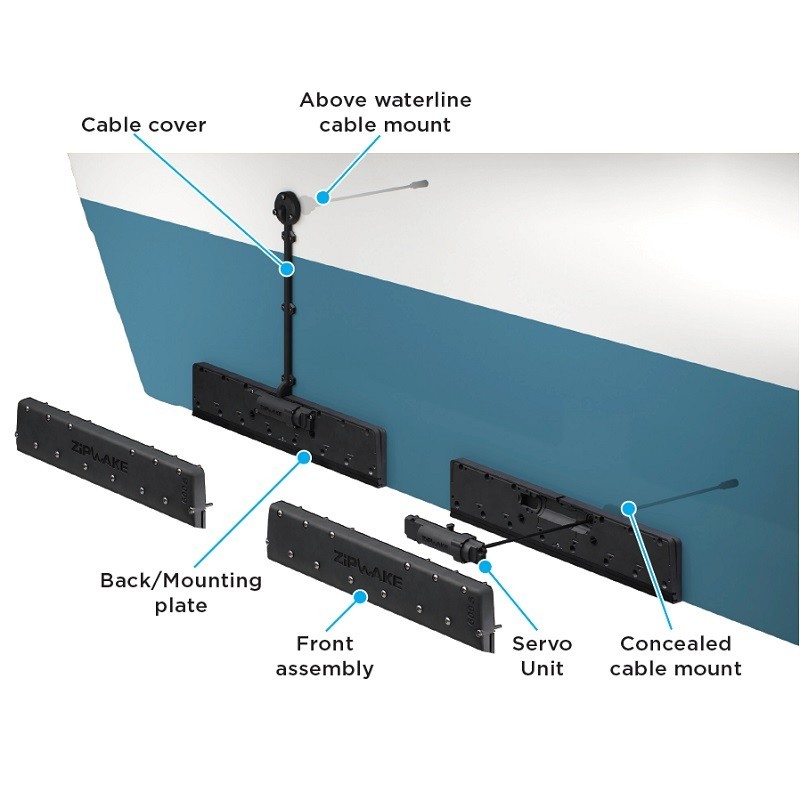

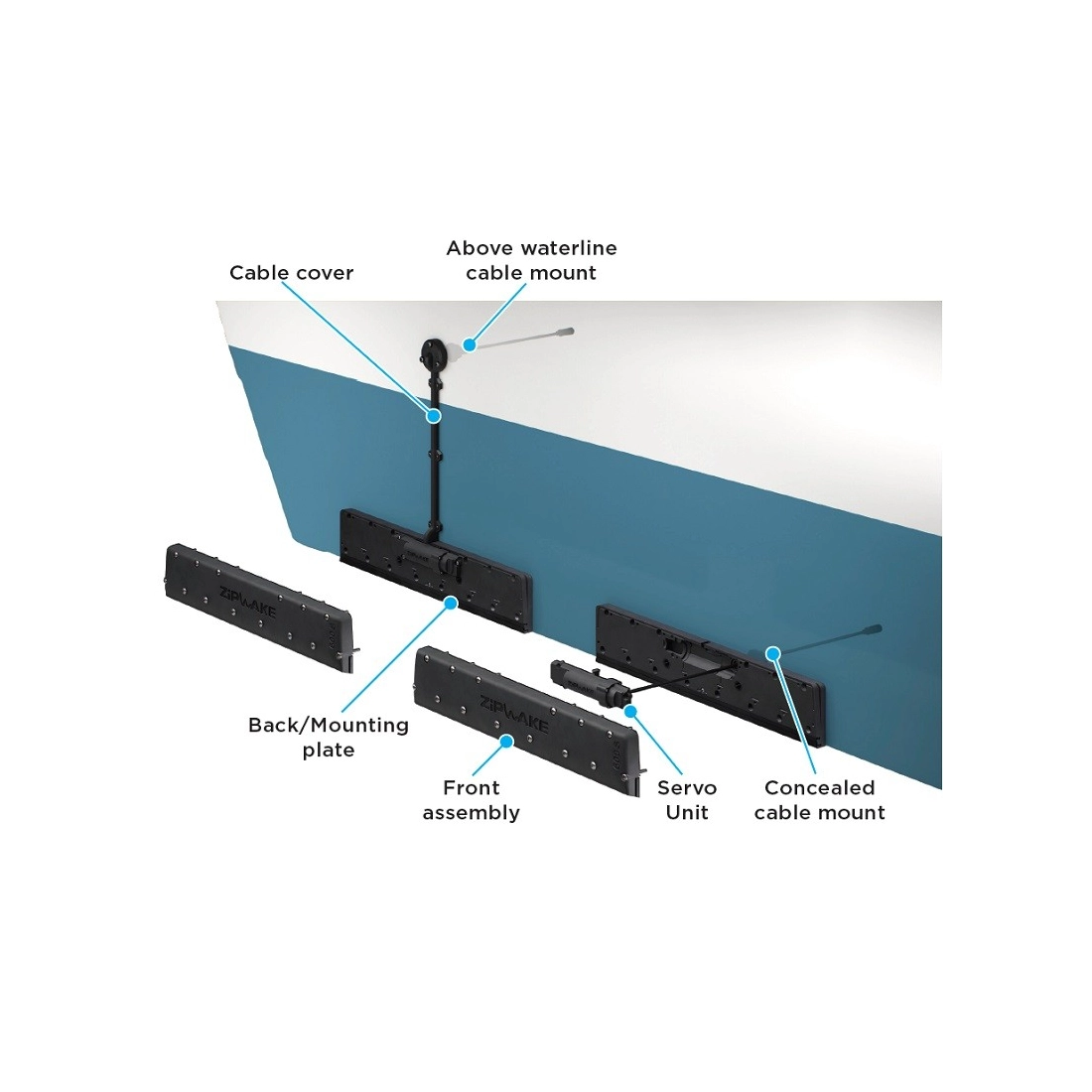

      - 2 Interceptors 750s with 3 mt of cable and cable cover
      - 1 extension cable of 1. 5 mt

      The basic installation can be expanded with up to two extra pairs of S series interceptors, for a total of six interceptors without the need to purchase additional connectors or power supplies; just those contained in the kit ZIPWAKE box 750s.

      COMFORT AND SAFETY ZIPWAKE box 750s
      compensates for pitch and roll from vessels dynamically and in real time, increasing navigational comfort and safety on board.

      EXCELLENT PERFORMANCE AND REDUCED FUEL CONSUMPTION
      It minimizes wave resistance automatically; the roll and resistance offered by waves are the main cause of strain on boat engines.
      Thanks to ZIPWAKE box 750s your boat's fuel consumption will drop considerably.

      INTUITIVE AND PRECISE
      Revolutionary 3D controls offer unprecedented control of trim and direction of travel, to dominate the waves.

      ZIPWAKE box 750s: DURABLE AND EFFECTIVE
      The patented series of fast-acting, durable interceptors provide exceptional performance and great durability.

      COMPLE AND COMPETITIVE
      The all-inclusive modular design offers simple installation and ease of expansion without sacrificing quality, making the system affordable and usable by even the least experienced.

      Interceptors from Swedish manufacturer Zipwake are dynamic trim correctors that smooth out boat roll, correct pitch and navigational trim, and consume less fuel. Zipwake's new 2020 Interceptor range is ideal for boats from 20 to 60 feet (6 to 18 meters), is electrically powered and is easy to install even on newer boats.

      ZIPWAKE Interceptors are available in four lengths (350 mm, 400 mm, 450 mm and 600 mm) and can be combined according to the size and shape of the keel: a maximum of 6 can be installed per boat, connecting them to the same electronic control unit which is in turn controlled by a digital control panel with an integrated gyroscope that automatically sends the impulse to the Interceptors to correct the trim. The response is extremely fast.
      The system can be configured to support 1, 2 or 3 control stations.

      Visit our page dedicated to the ZIPWAKE products to extend the functionality of the ZIPWAKE BOX 750S kit.

      Images and technical data are not binding.

      ""
      ZIPWAKE EC1.5-M12 Extension Cable 1.5 M
          ZIPWAKE EC3-M12 Extension Cable 3 M
              FOR ENGINES AND OUTBOARDS
              Length: 3 meters
              ZIPWAKE EC5-M12 Extension Cable 5 M
                  FOR ENGINES AND OUTBOARDS
                  Length: 5 meters
                  ZIPWAKE EC10-M12 Extension Cable 10 M
                      FOR ENGINES AND OUTBOARDS
                      Length: 10 meters
                      ZIPWAKE CP-S CONTROL PANEL ALU FRAME
                          FOR ENGINES AND OUTBOARDS
                          Surface appearance: Brushed aluminum Items in kit: 1 x frame, 1 x wheel cap, 1 x instruction
                          ZIPWAKE CP-S CONTROL PANEL COVER
                              FOR ENGINES AND OUTBOARDS
                              Surface appearance Five different colors, soft-touch
                              ZIPWAKE CC-S CABLE COVER KITCABLE COVER KIT ZIPWAKE CC-S
                                  FOR ENGINES AND OUTBOARDS
                                  Items in kit: 1 x thru-hull cover, 1 x cable cover, 1 x cable cover extension Weight: 0.18 kg (0.4 lbs)
                                  ZIPWAKE IT750S INTERCEPTOR FRONT
                                      FOR ENGINES AND OUTBOARDS
                                      Length: 750 mm Waterproof rating: IP68
                                      ZIPWAKE GPU EXTERNAL GPS ANTENNAZIPWAKE GPU EXTERNAL GPS ANTENNA
                                          FOR ENGINES AND OUTBOARDS
                                          Connectors: M12 5-pin circular Cable material: White PVC Cable length: 5 m (16 ft) extendable to max 15 m (49 ft) Supply voltage: 5 V DC ±5% Power consumption: 0.28 W, 55 mA (average) Protocol NMEA: 0183 / RS232 NMEA sentences: RMC, VTG, GGA, GSA, GSV, GLL Baud rate: 38400 Update rate: 5 Hz Number of channels: 20 Average time to first fix:...
                                          ZIPWAKE CP-S CONTROL PANELCONTROL PANEL ZIPWAKE CP-S
                                              FOR ENGINES AND OUTBOARDS

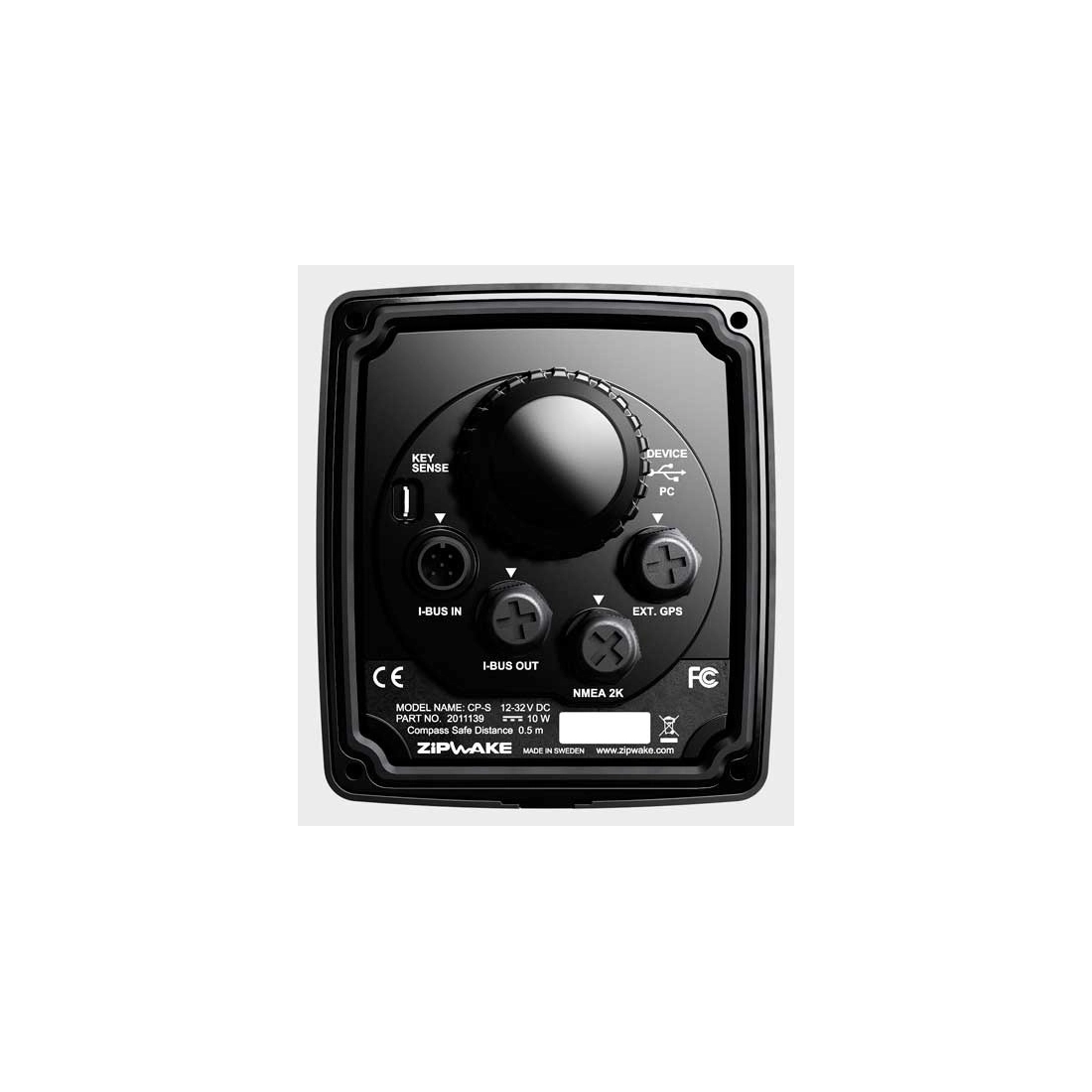

                                              Display: 2.4’’ Transflective color TFT, 320 x 240 pixels, double-sided, anti-reflection coated window Internal sensors: 5 Hz GPS, 3D Gyro, 3D Accelerometer, Ambient light Supply voltage: 12 - 32 V DC Power consumption: 10 W max Operating temperature: -20° to +85°C (-4° to +185°F) Storage temperature: -40° to +90°C (-40° to +194°F) Waterproof rating: IP67 / IP64...
