Electric Retractable Thruster MAX POWER VIP 150 24V ELECTRIC

Reference VPC81024

Boat size : 14 - 18 meters / 45 - 60 fts
Recommended boat: high performance sailing yachts and super fast motor yachts
Voltage: 24V
Amperage: 389 A
Power: 8.56 KW - 11.5 Hp
Pushing force: 115 Kg - 254 lbs.
Duty cycle (S2): 4.5 min

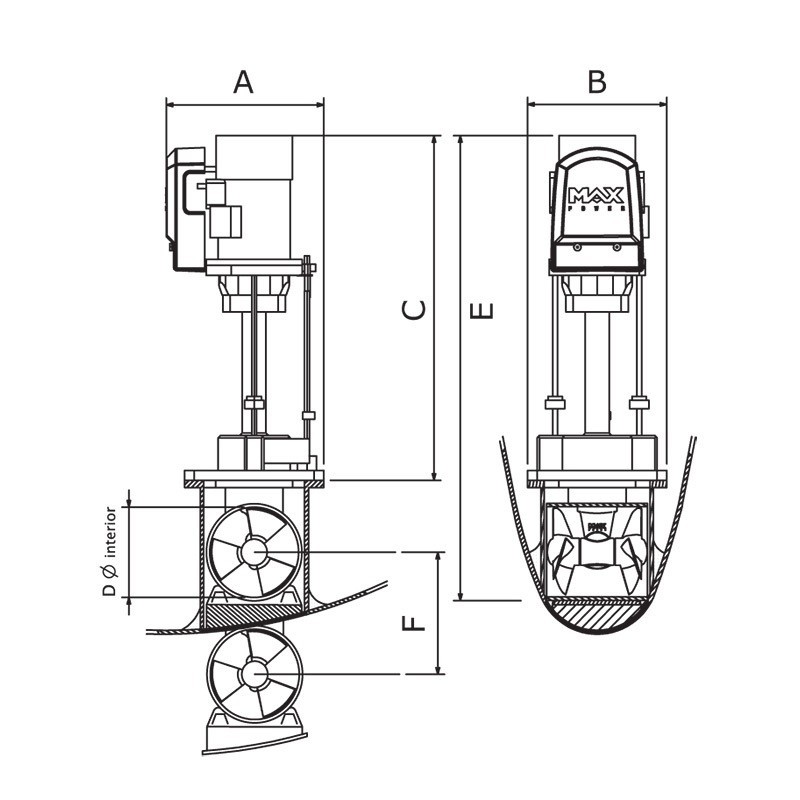

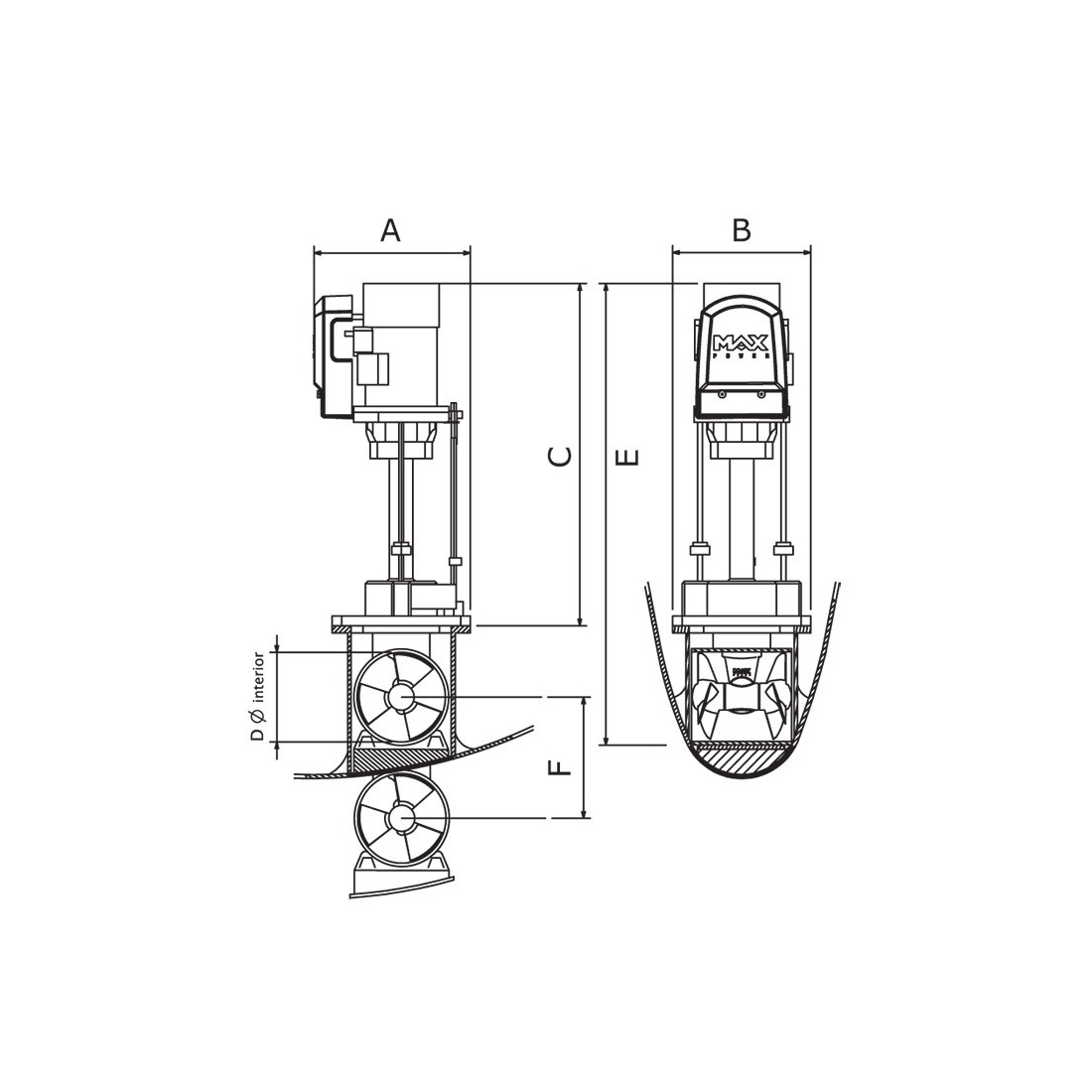

Thruster diameter: 185 mm
Length. 290 mm
Width: 290 mm
Height (open): 961 mm
Weight: 40 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference VPC81024

Data sheet

Voltage (V): 24
Starting system: Electric
Power (KW): 8.56
Diameter (Ø): Thrusters 185 mm
Kg per cycle (Kg/min): 25
Mechanical power (hp): 11.5
Current (A): 389
Length (mm): 290
Width (mm): 290
Height (mm): 916
Product type: Retracting Thruster
Weight (Kg): 40

Specific References

Condition New

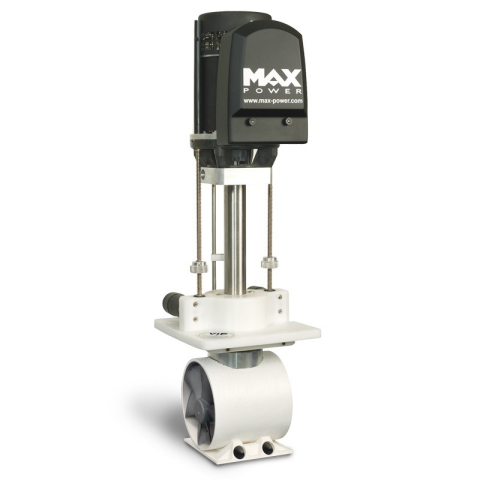

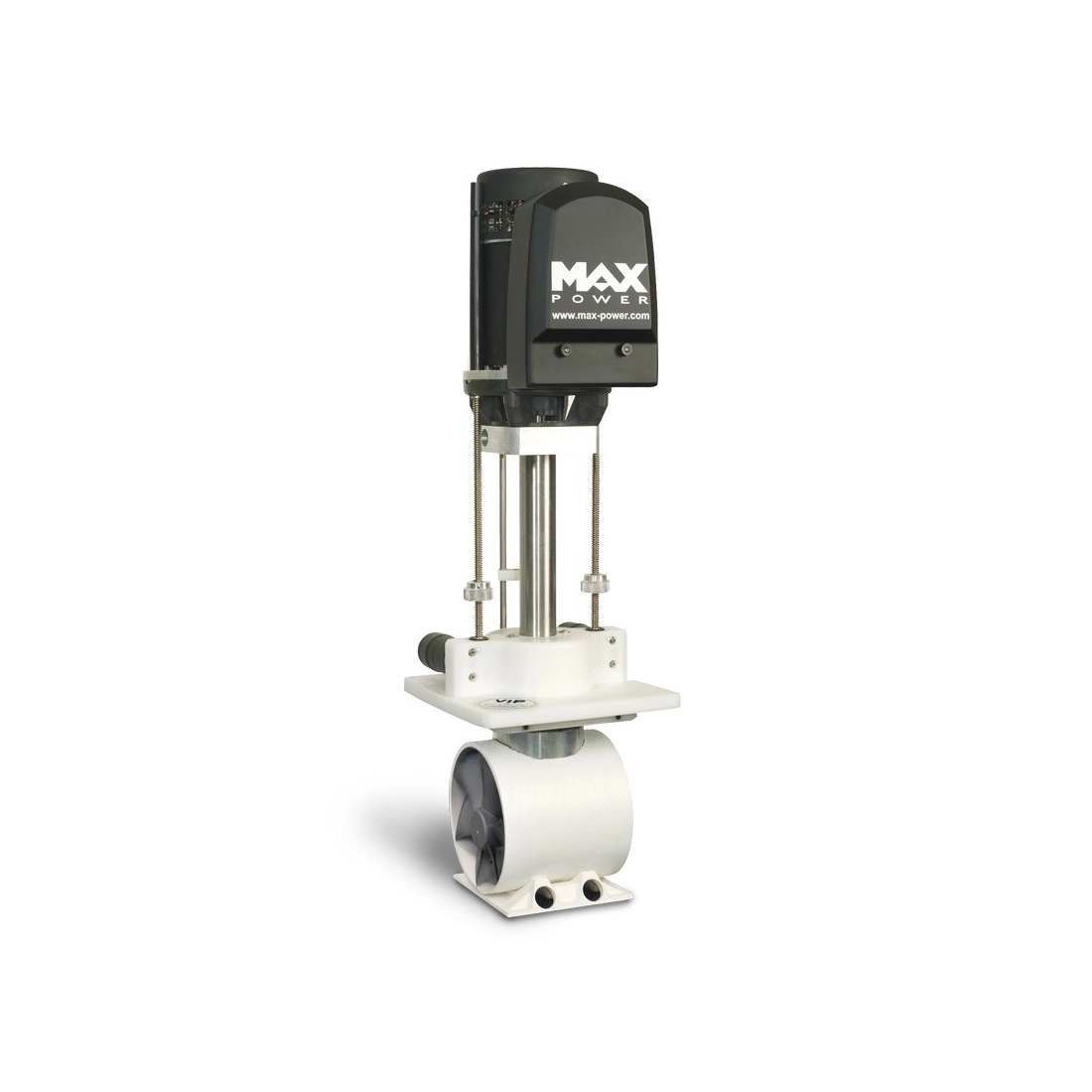

Electric Retractable Thruster VIP 150 ELECTRIC

Max Power’s vertically retracting VIP thrusters use a unique and patented thrust plate design. The largest electric thruster in the Max Power range, the VIP 150 is available in both 12V and 24V and is ideally suited to high performance sailing yachts and super fast motor yachts from 40-60’.

Control Panels:

Max Power’s thruster control systems include a variety of advanced safety features.

• Childproof activation
• Automatic shutdown after 30 minutes of inactivity
• Visible and audible motor overheat warning
• Motor overheat shutdown after prior warning
• Standard automatic battery isolator control
• Time delay switch bewteen port and starboard thrust
• Software protection against short circuits

The VIP 150 comes delivered with a black joystick as standard.
