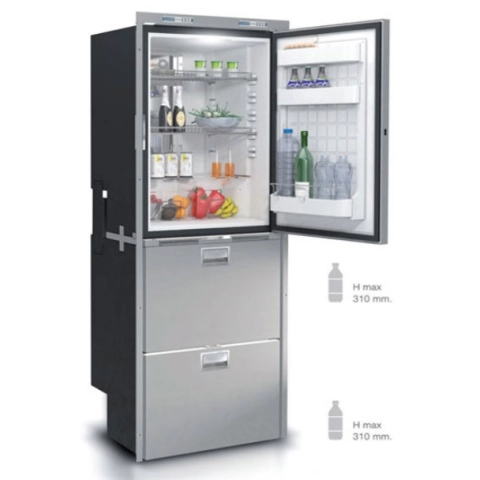

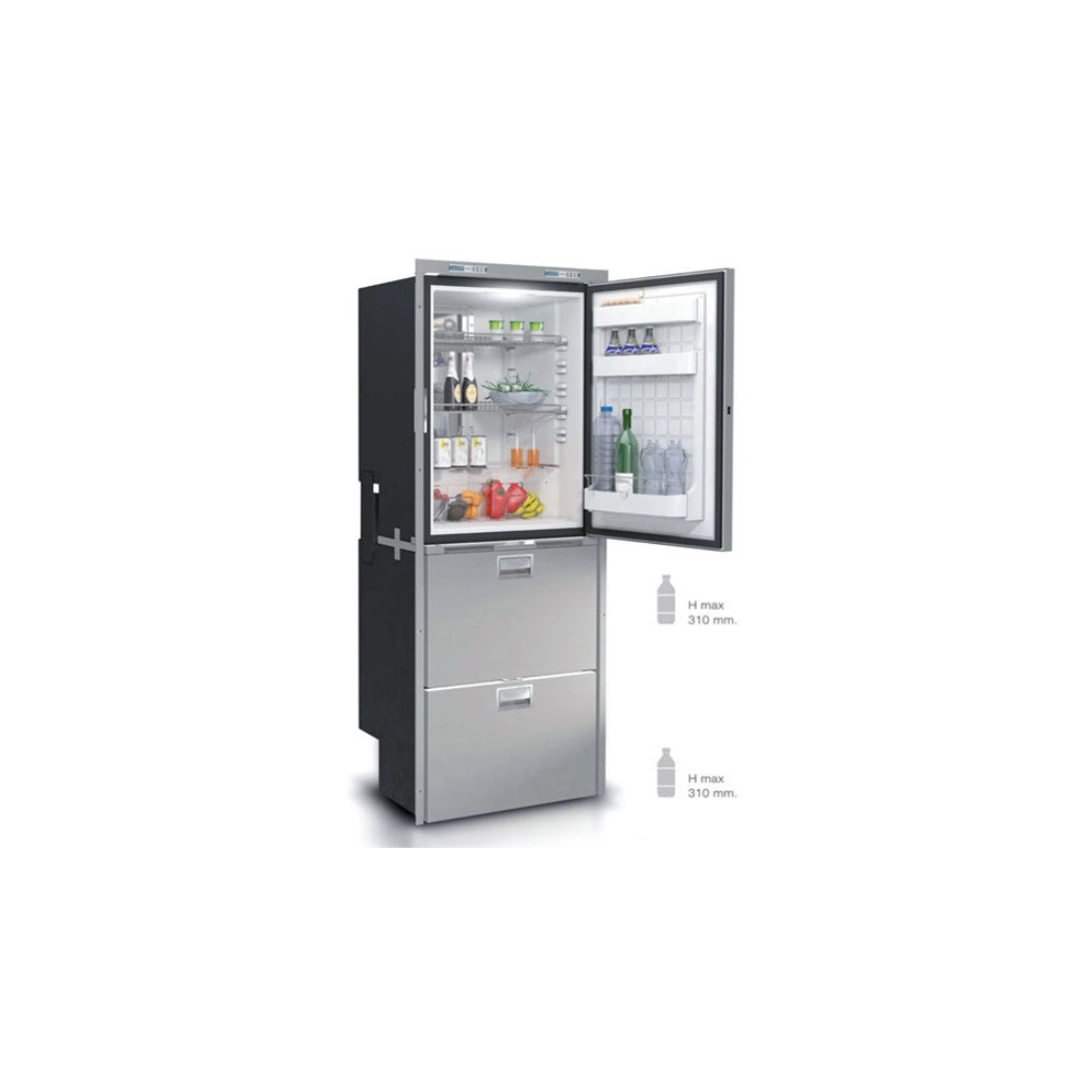

VITRIFRIGO DW360 OCX2 BTX IM REFRIGERATOR-FREEZERS

VITRIFRIGO DW360 OCX2 BTX IM offers an advanced solution for food preservation on boats,
with an upper refrigerator compartment and a lower freezer compartment equipped with an icemaker.
These drawer-style stainless steel refrigerators and freezers from the VITRIFRIGO DW OCX2
series feature a renewed design, with a squared satin stainless steel door and a top with glossy finishes.

With a total capacity of 301 liters, the VITRIFRIGO DW360 OCX2 BTX IM
provides ample space to store a wide range of food products.

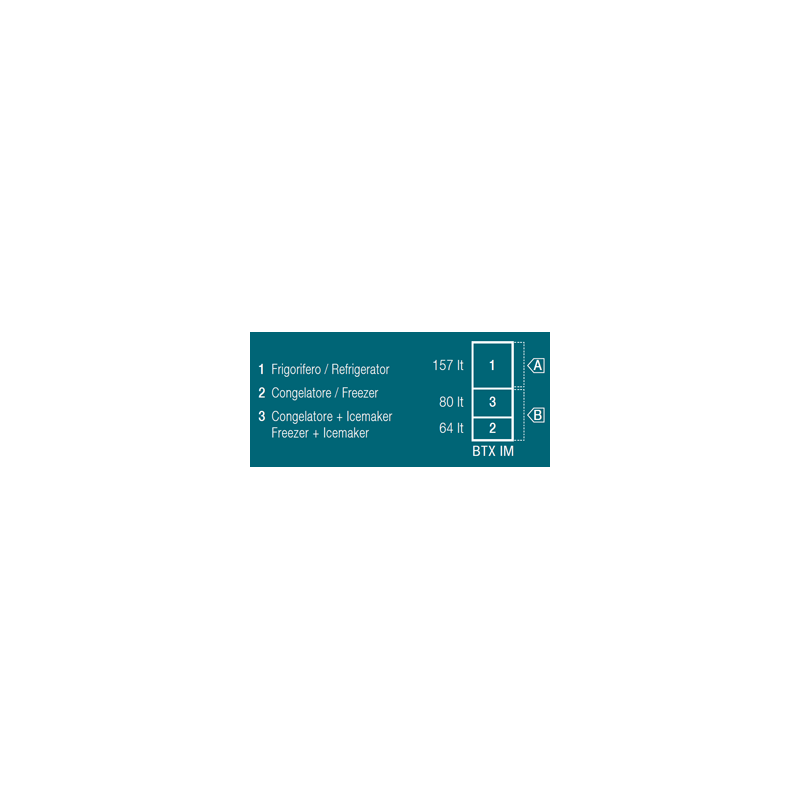

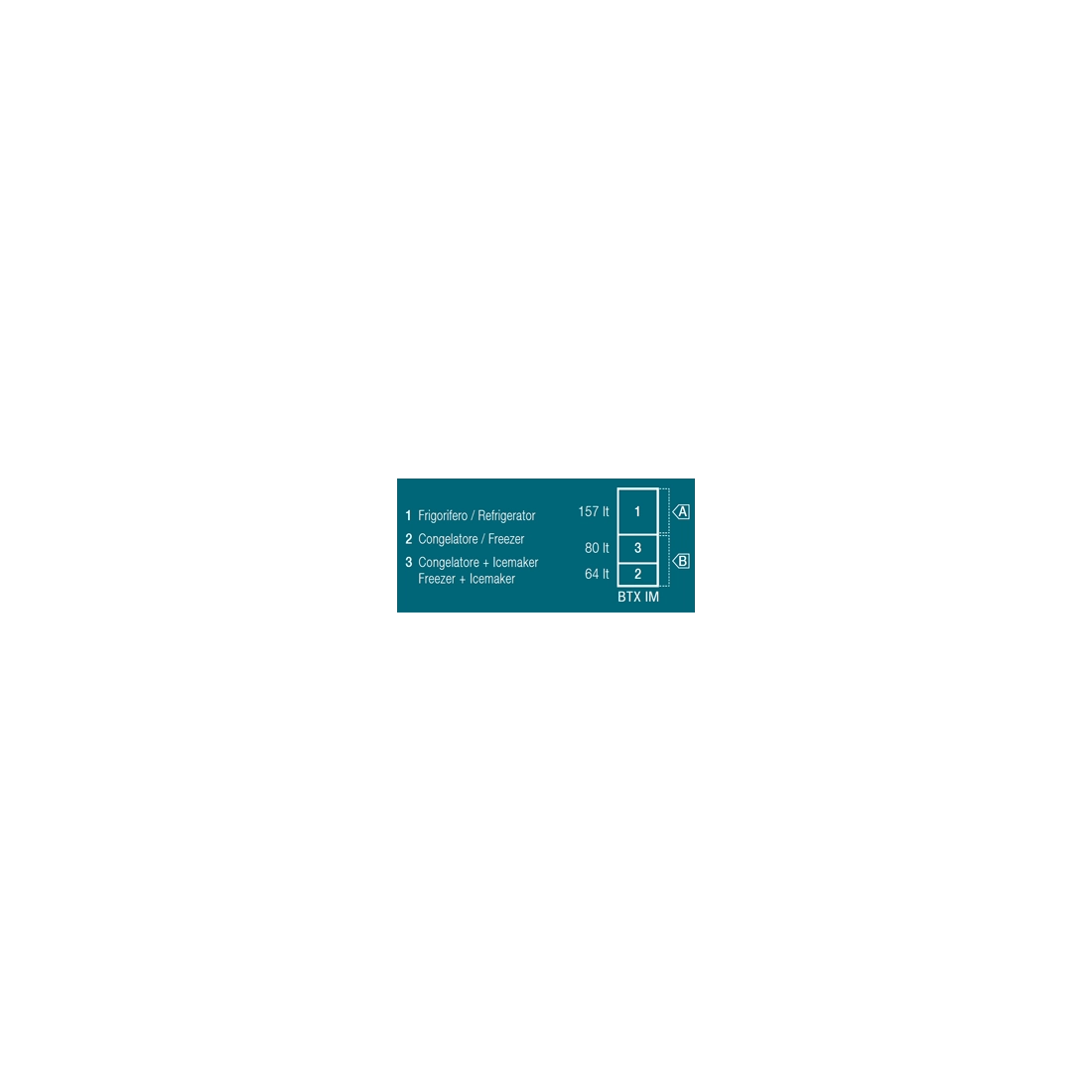

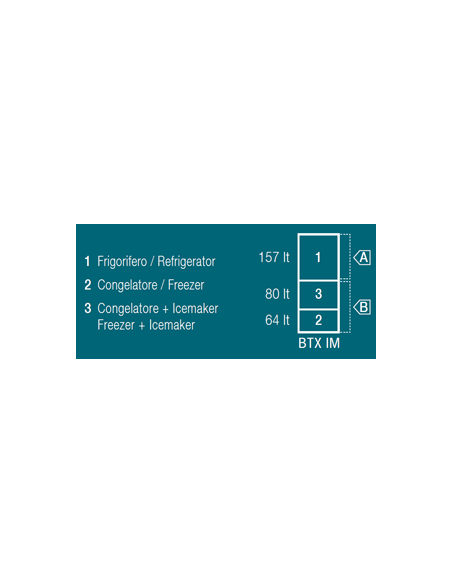

The upper compartment has a capacity of 157 liters,
while the lower one is divided into two sections, with 80 liters for the freezer and 64 liters for the icemaker.

This VITRIFRIGO DW360 OCX2 BTX IM refrigerator-freezer is powered by 12/24Vdc
in the upper compartment, with the possibility of using a dual-power
control unit for power supply also at 100-240Vac 50/60Hz.
The nominal consumption is 45W for the upper compartment and 168W (115Vac) - 140W (230 Vac)
for the lower compartment.

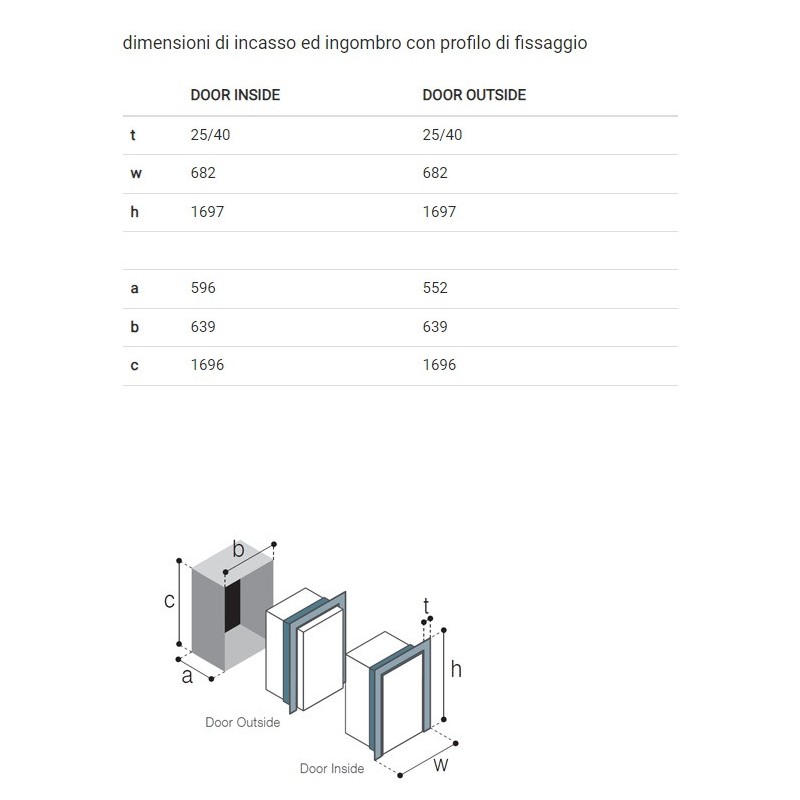

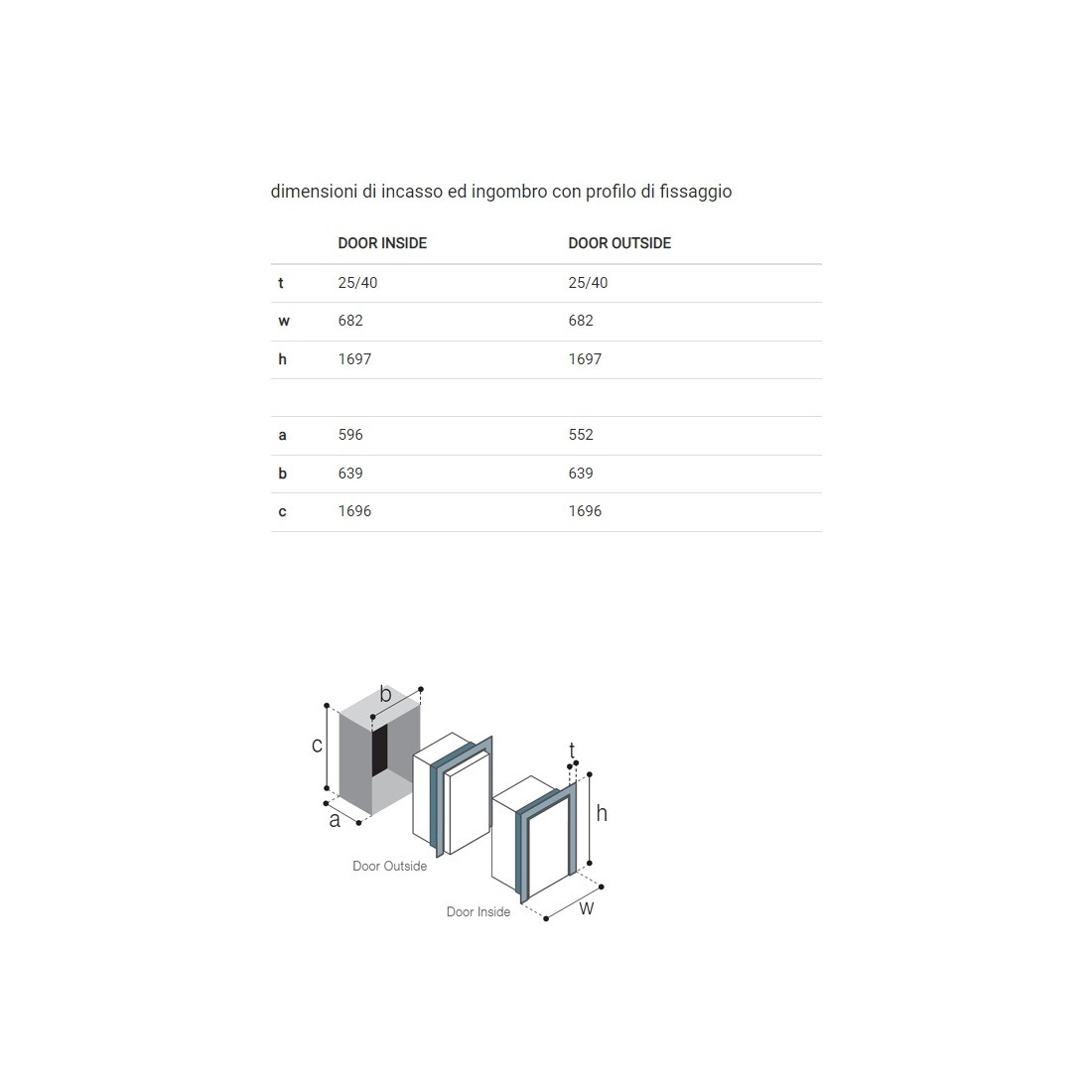

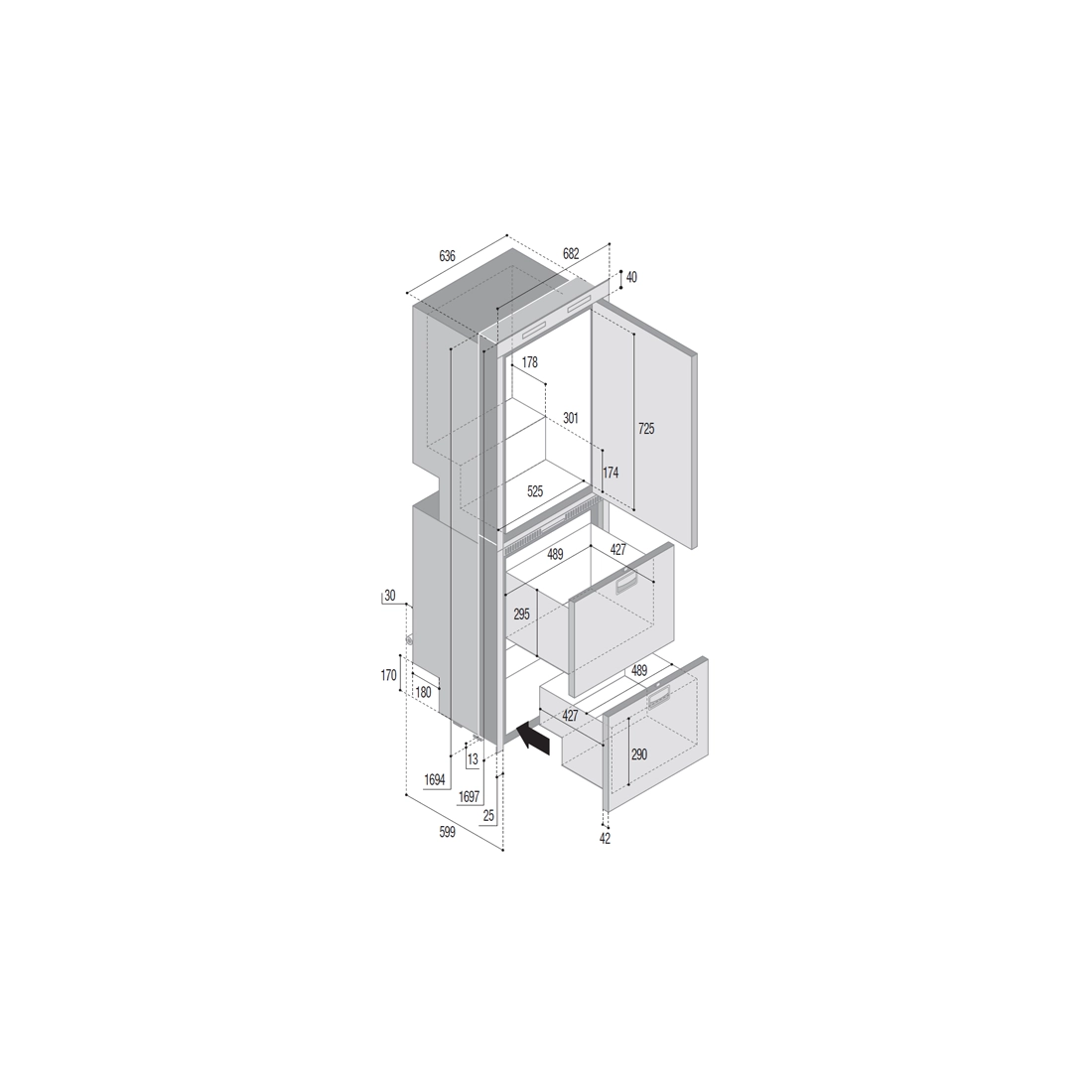

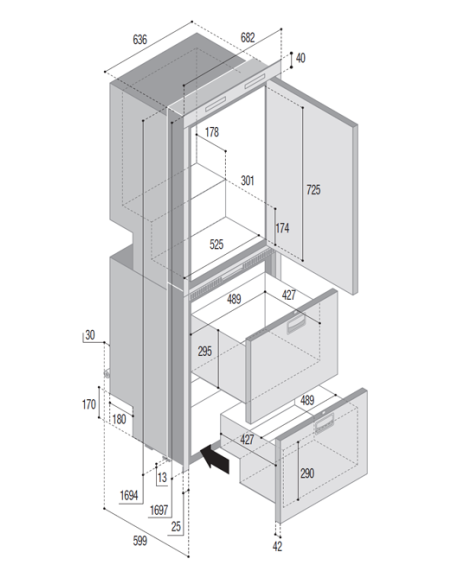

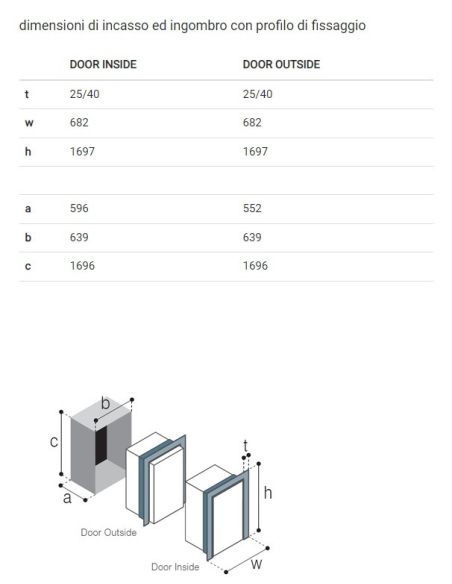

The total dimensions of the VITRIFRIGO DW360 OCX2 BTX IM are 682 mm width,

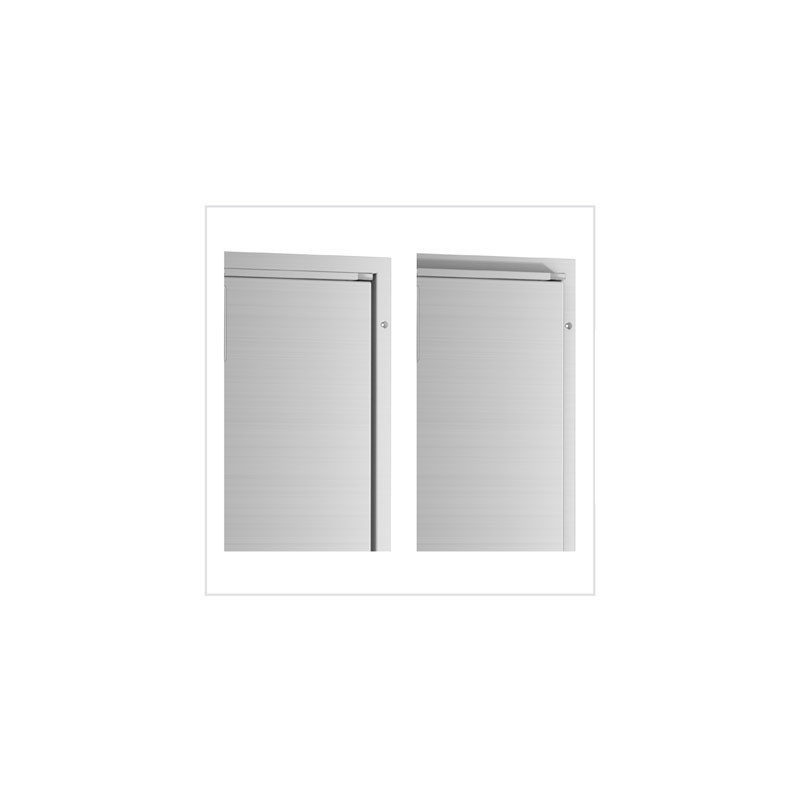

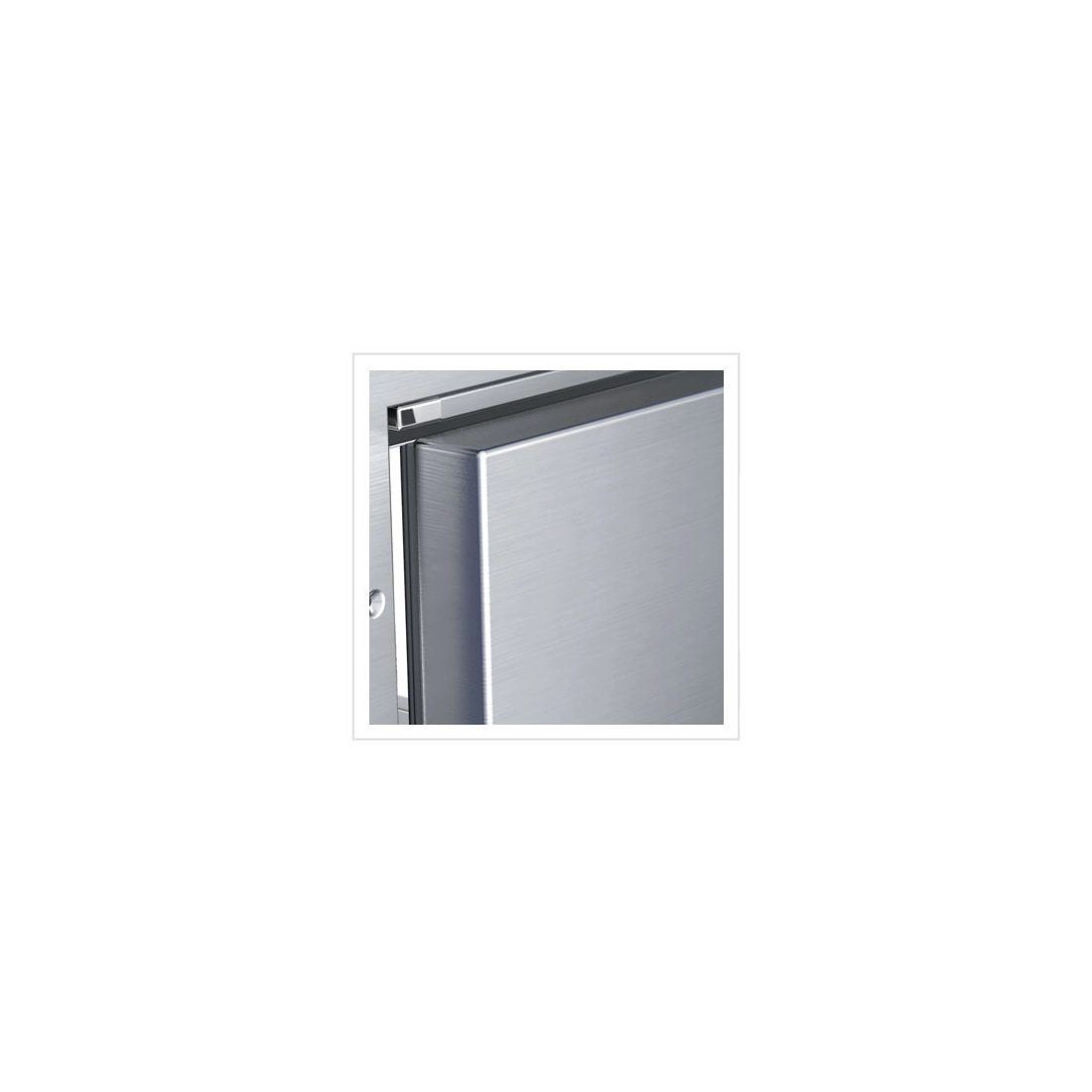

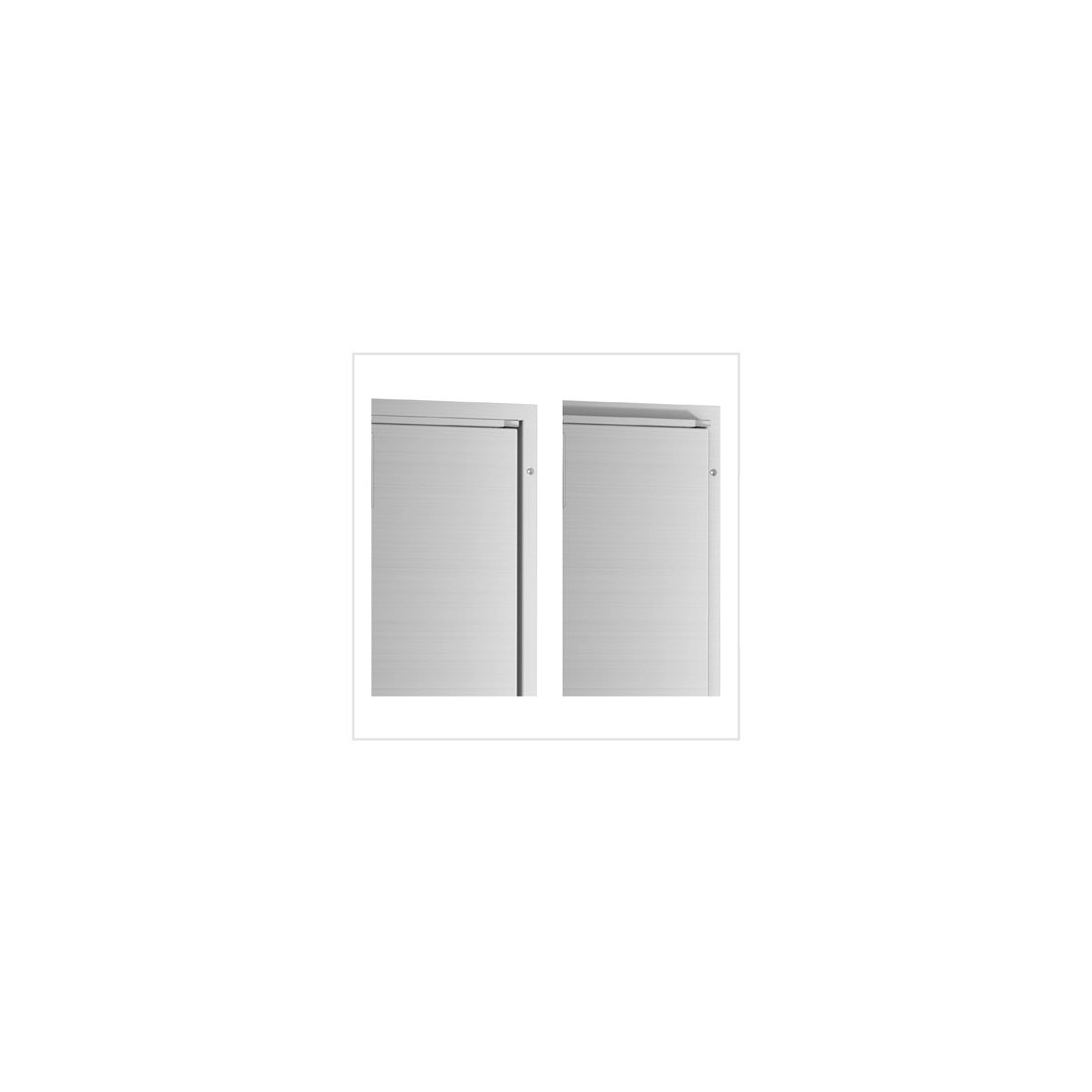

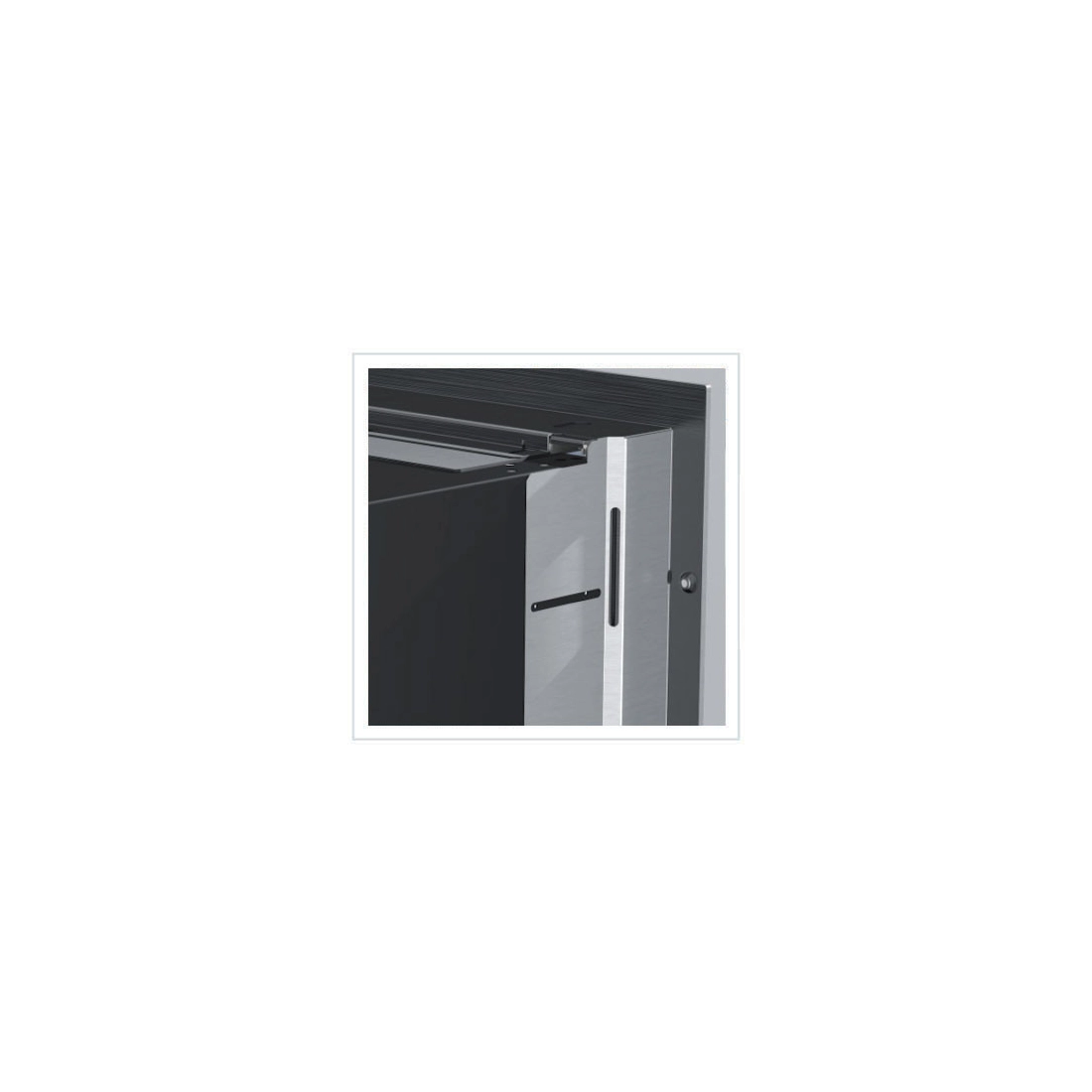

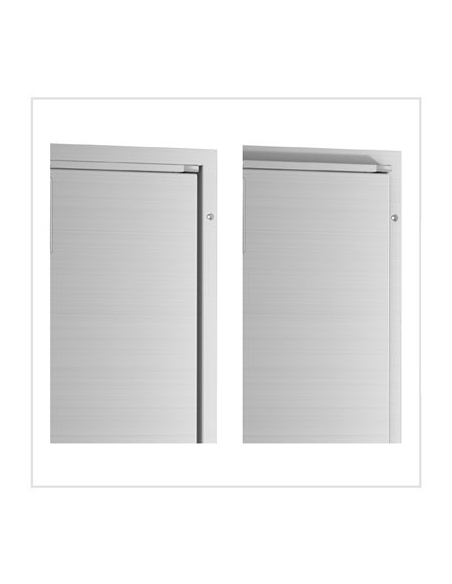

1710 mm height, and 596 mm depth. This refrigerator-freezer offers the versatility of the Double Door position,
with a single fixing profile for Door Inside and Door Outside versions.

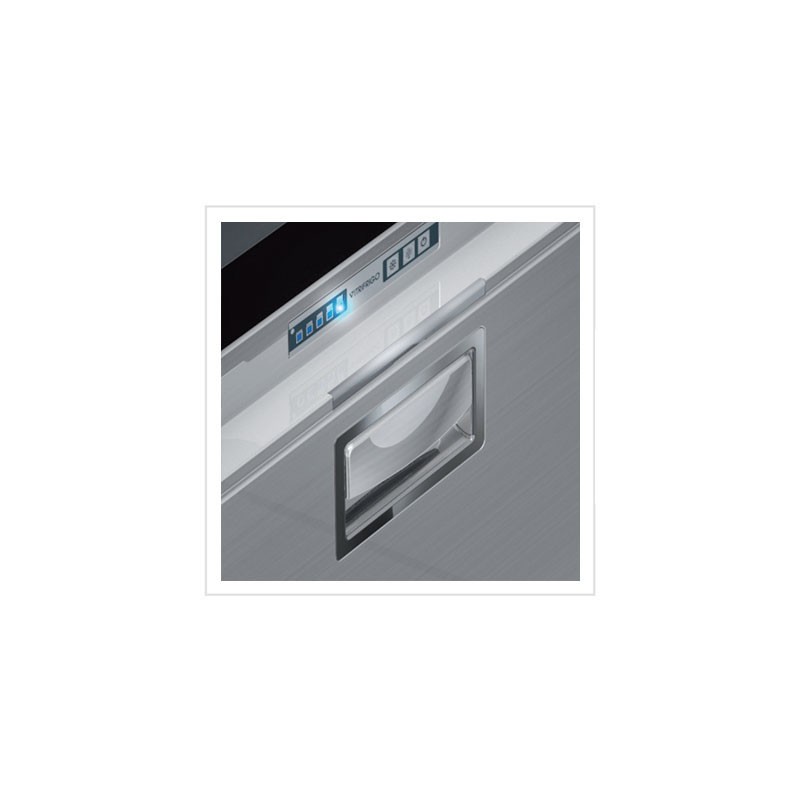

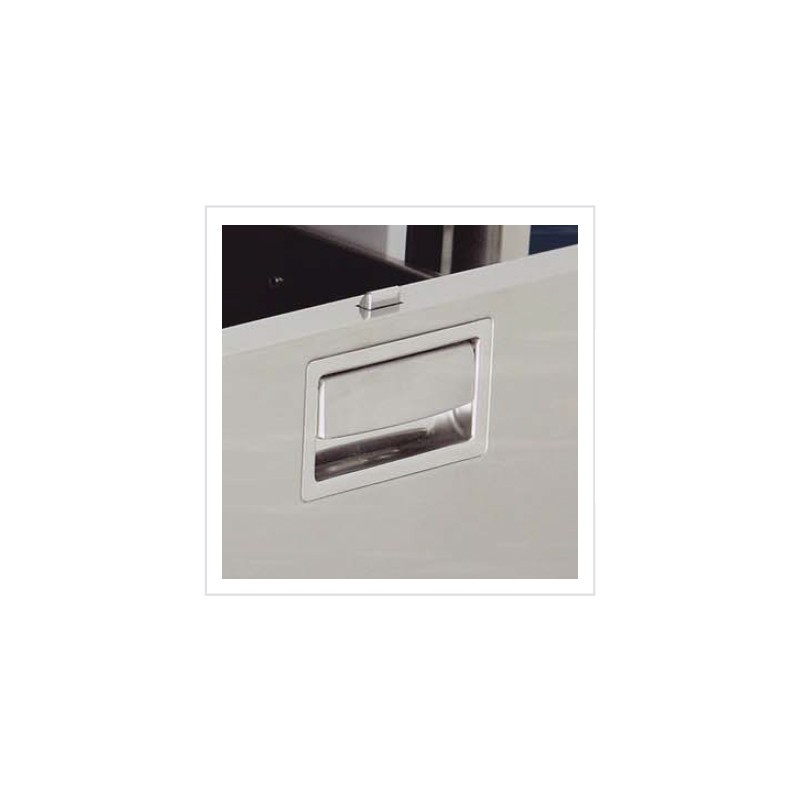

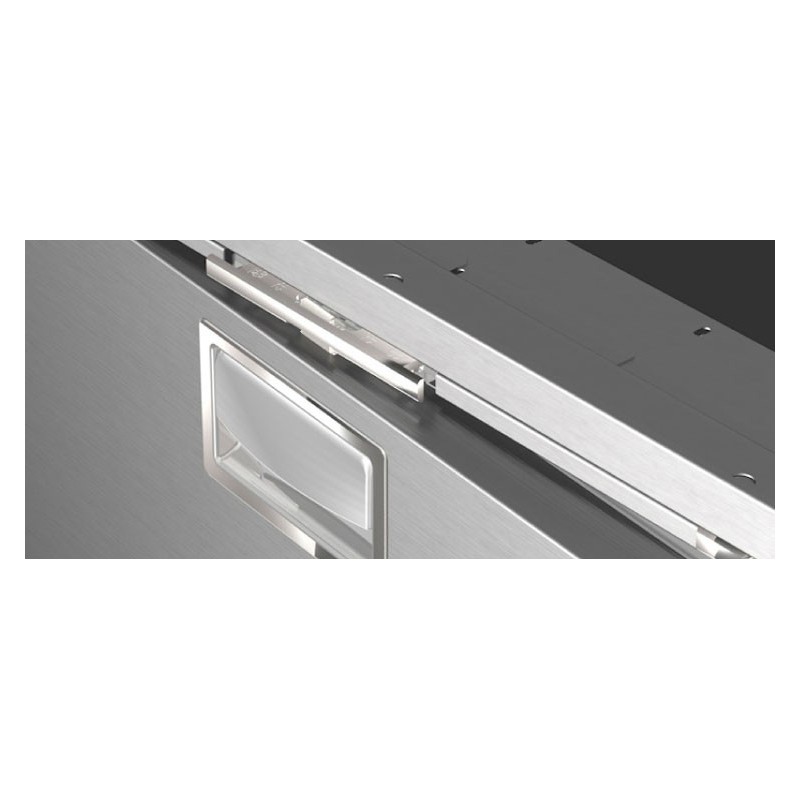

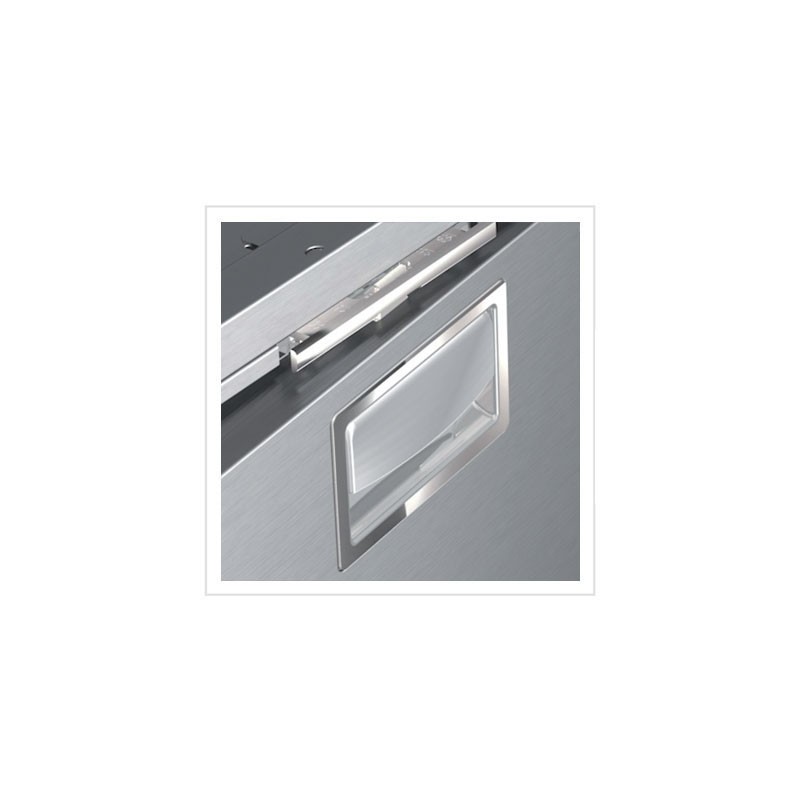

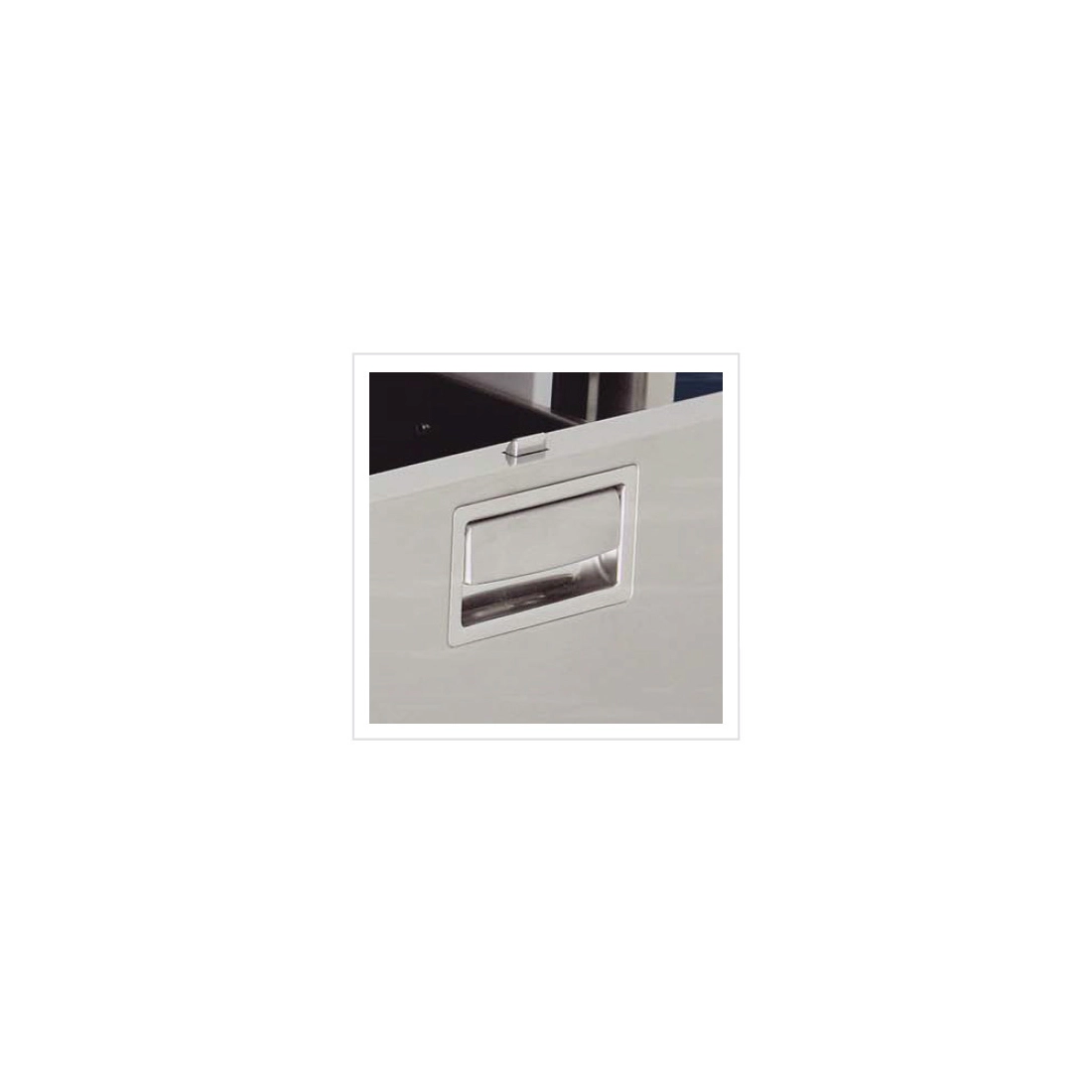

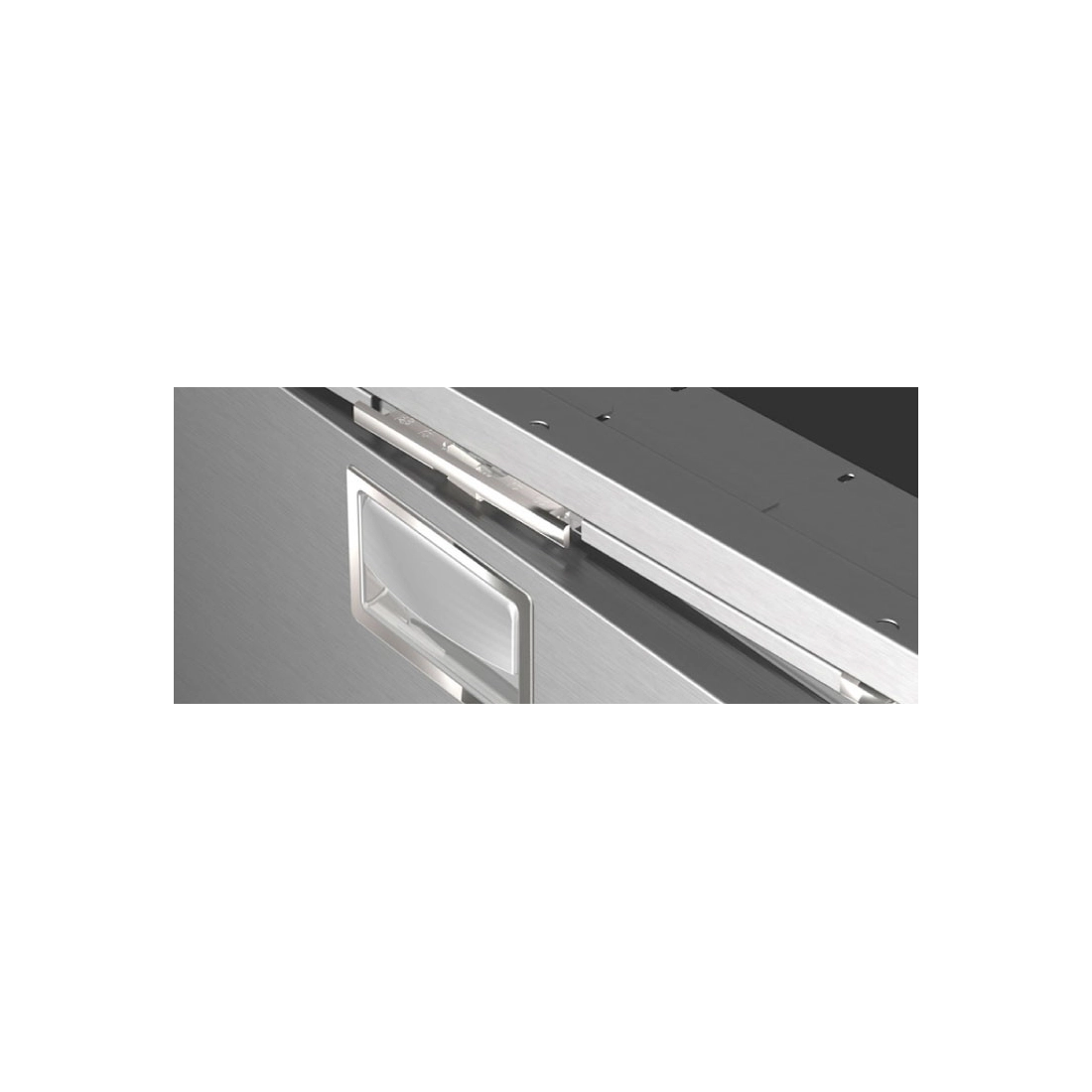

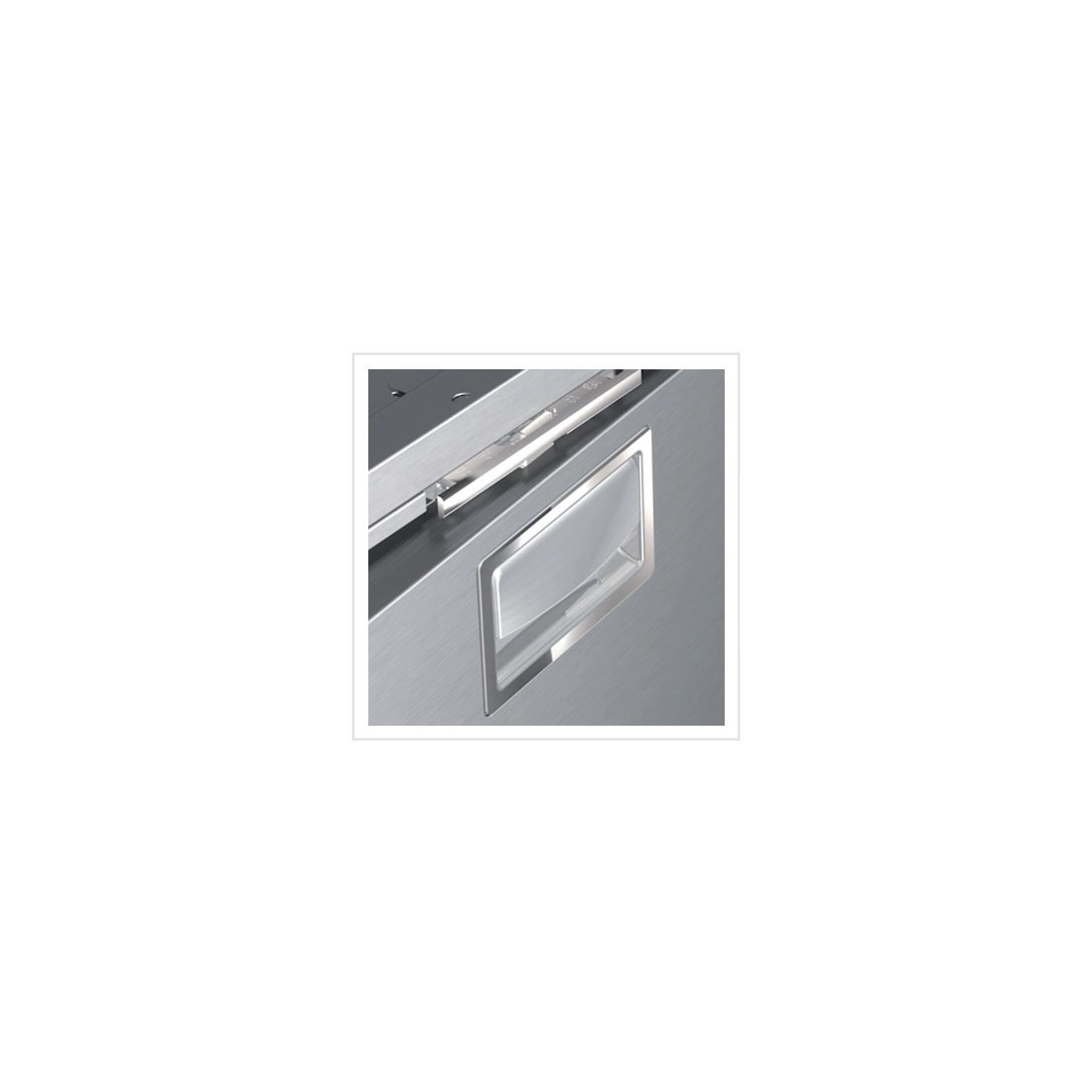

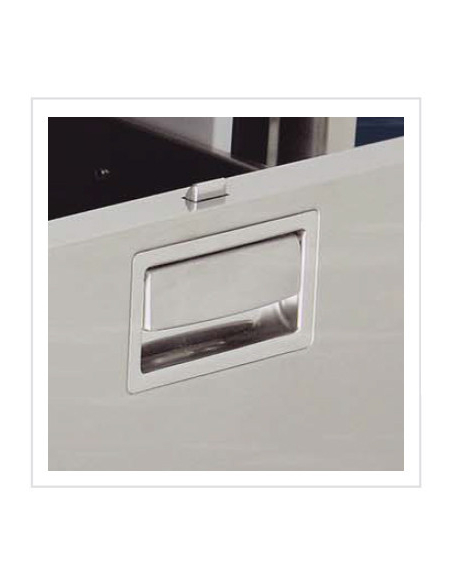

The new Steelock handle of the VITRIFRIGO DW360 OCX2 BTX IM

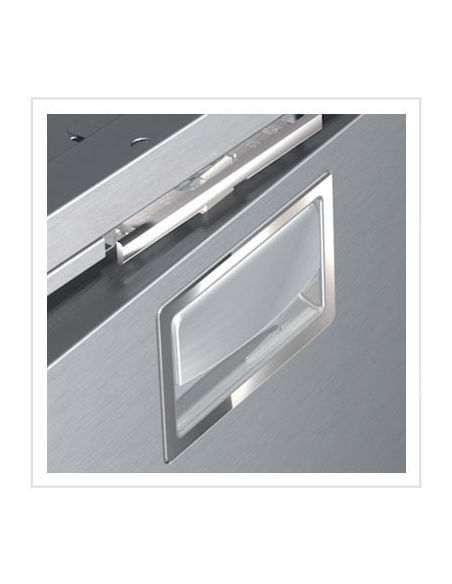

is equipped with Vent Position to allow ventilation during periods of non-use,

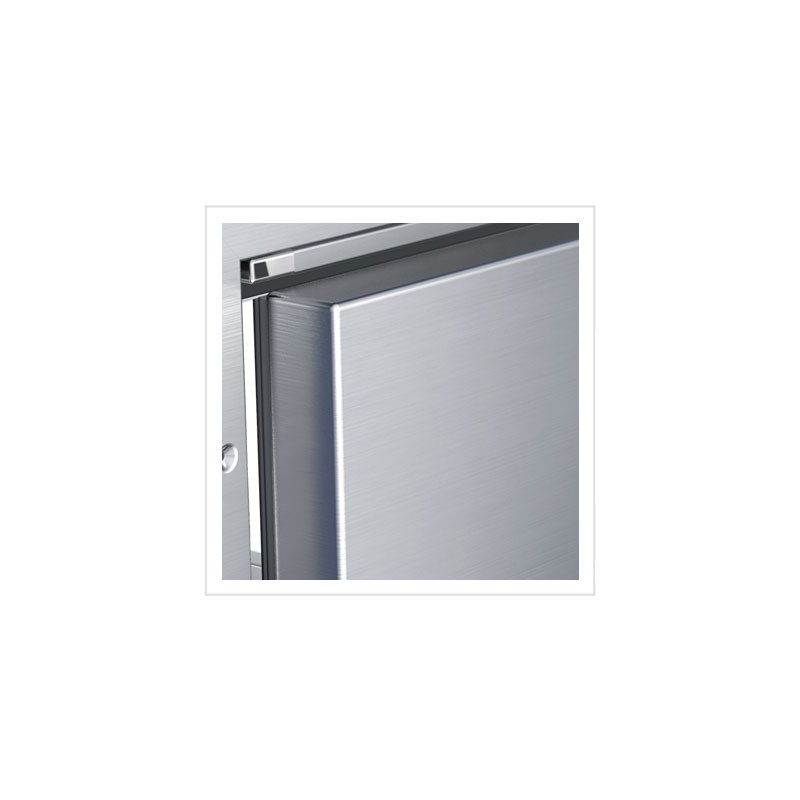

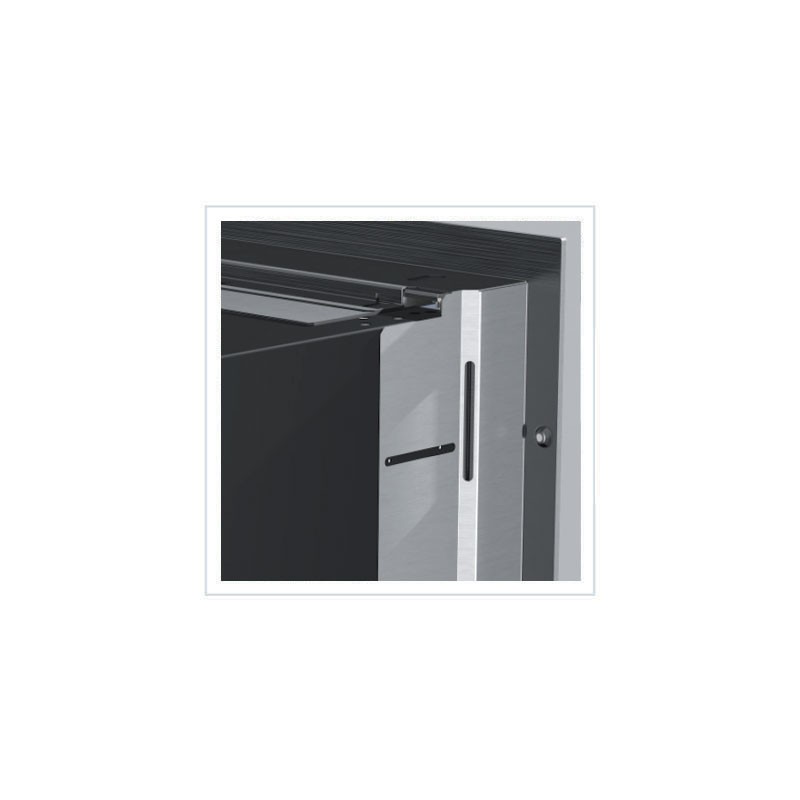

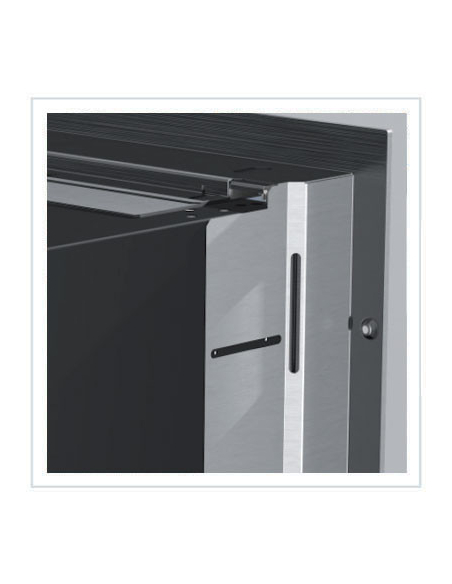

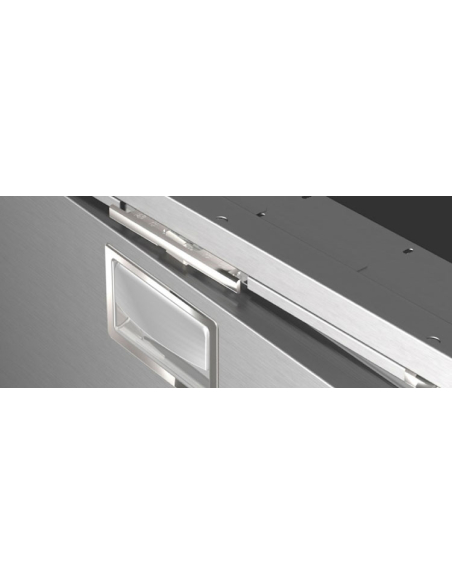

while the Venting Frame notch system optimizes air circulation and cooling efficiency.

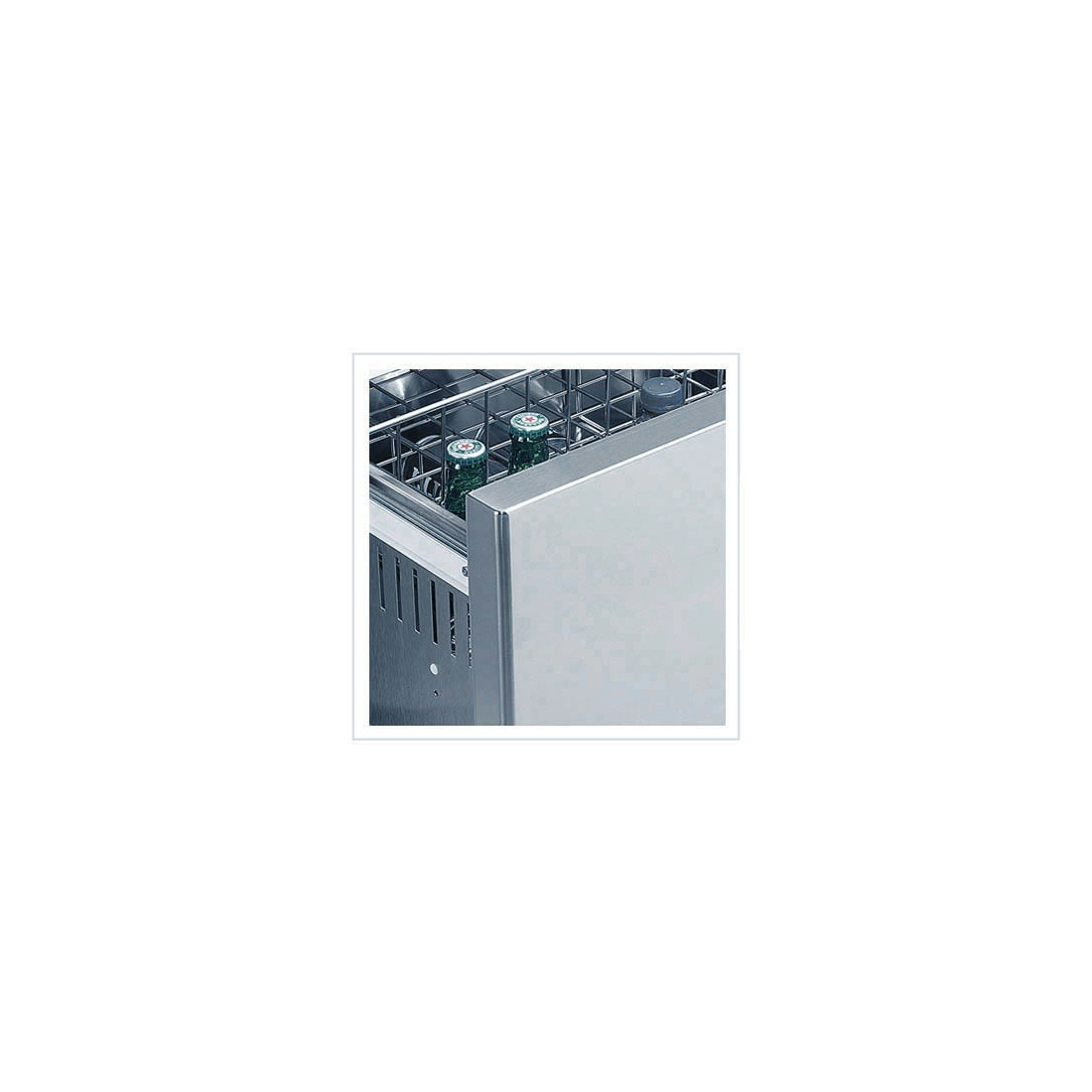

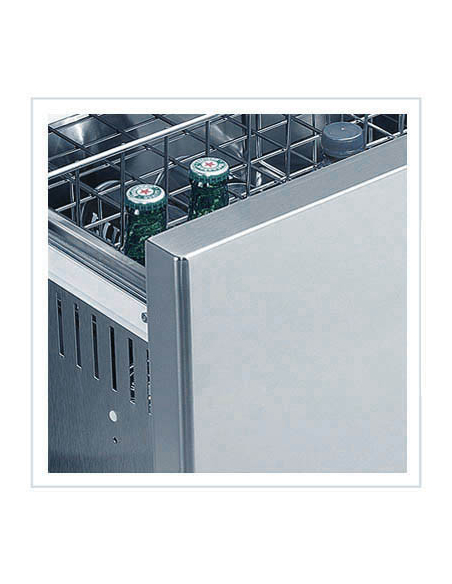

The sturdy and spacious drawers offer optimal food organization,

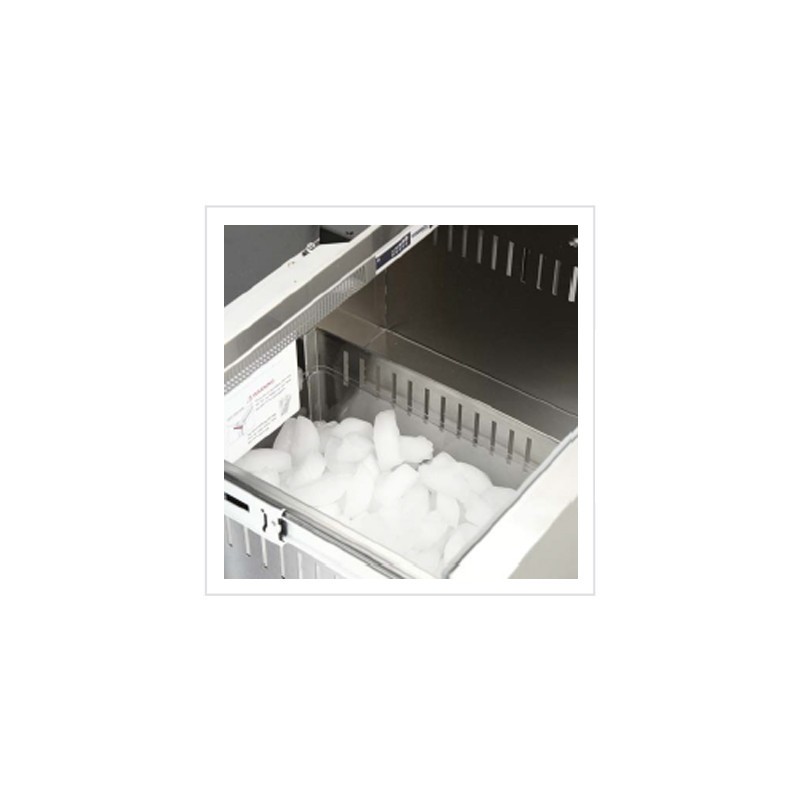

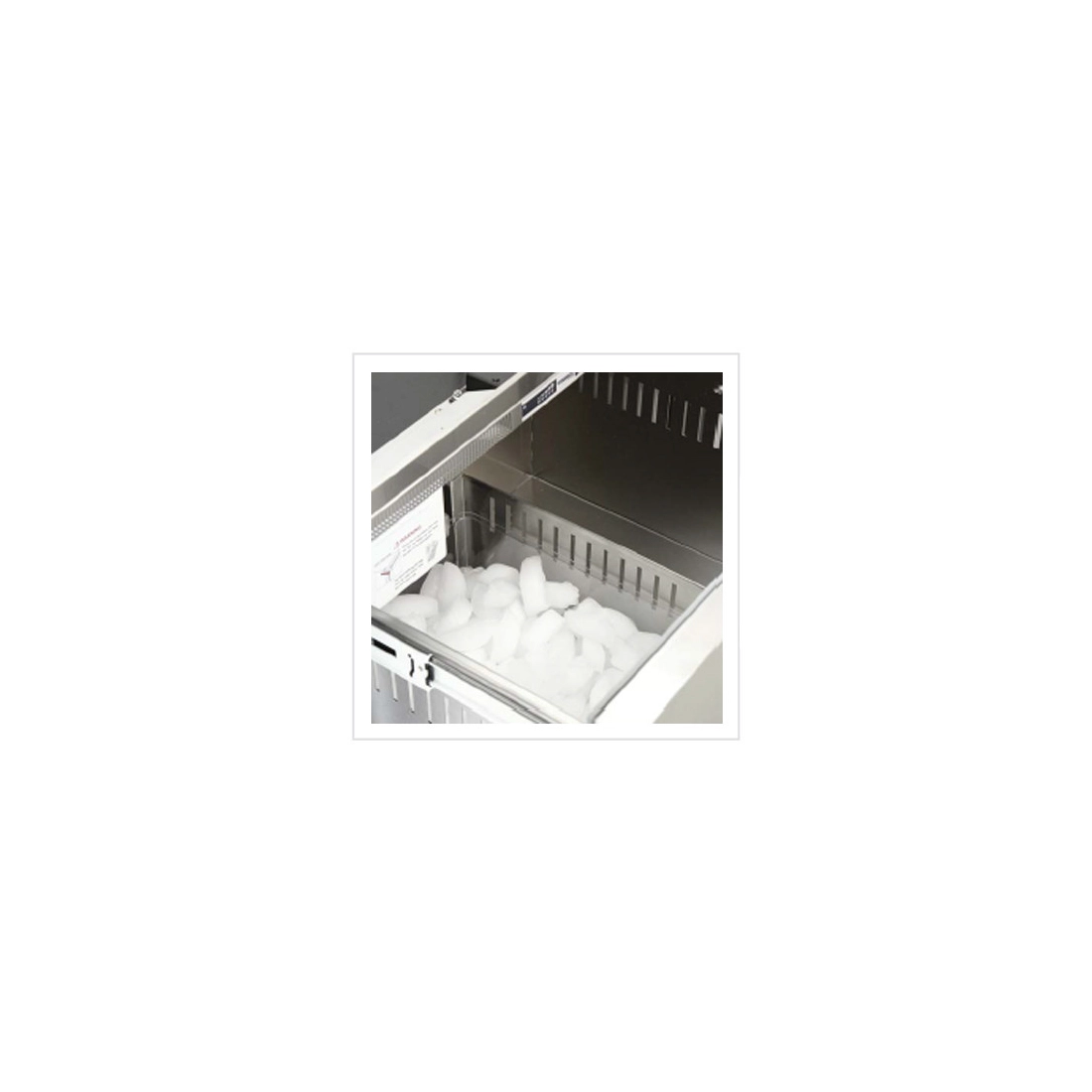

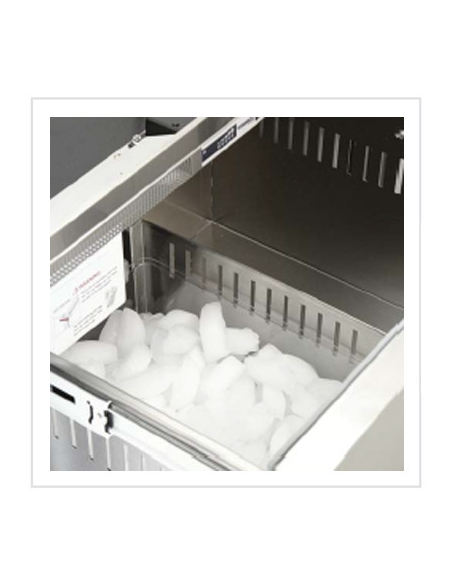

while the internal icemaker represents a fundamental plus for onboard comfort.

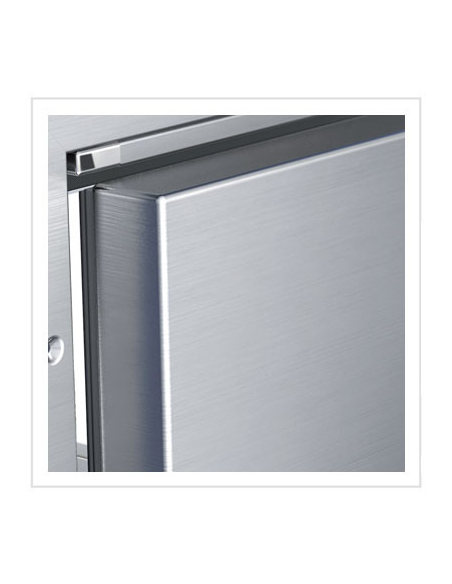

Made entirely of stainless steel 316, the models in the VITRIFRIGO DW OCX2
series guarantee resistance and durability over time.

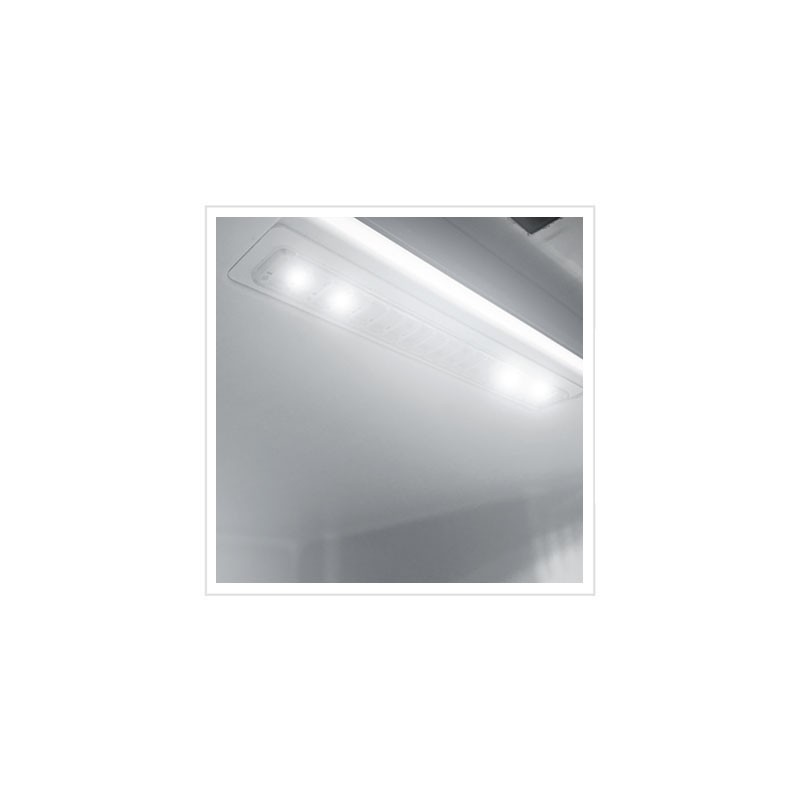

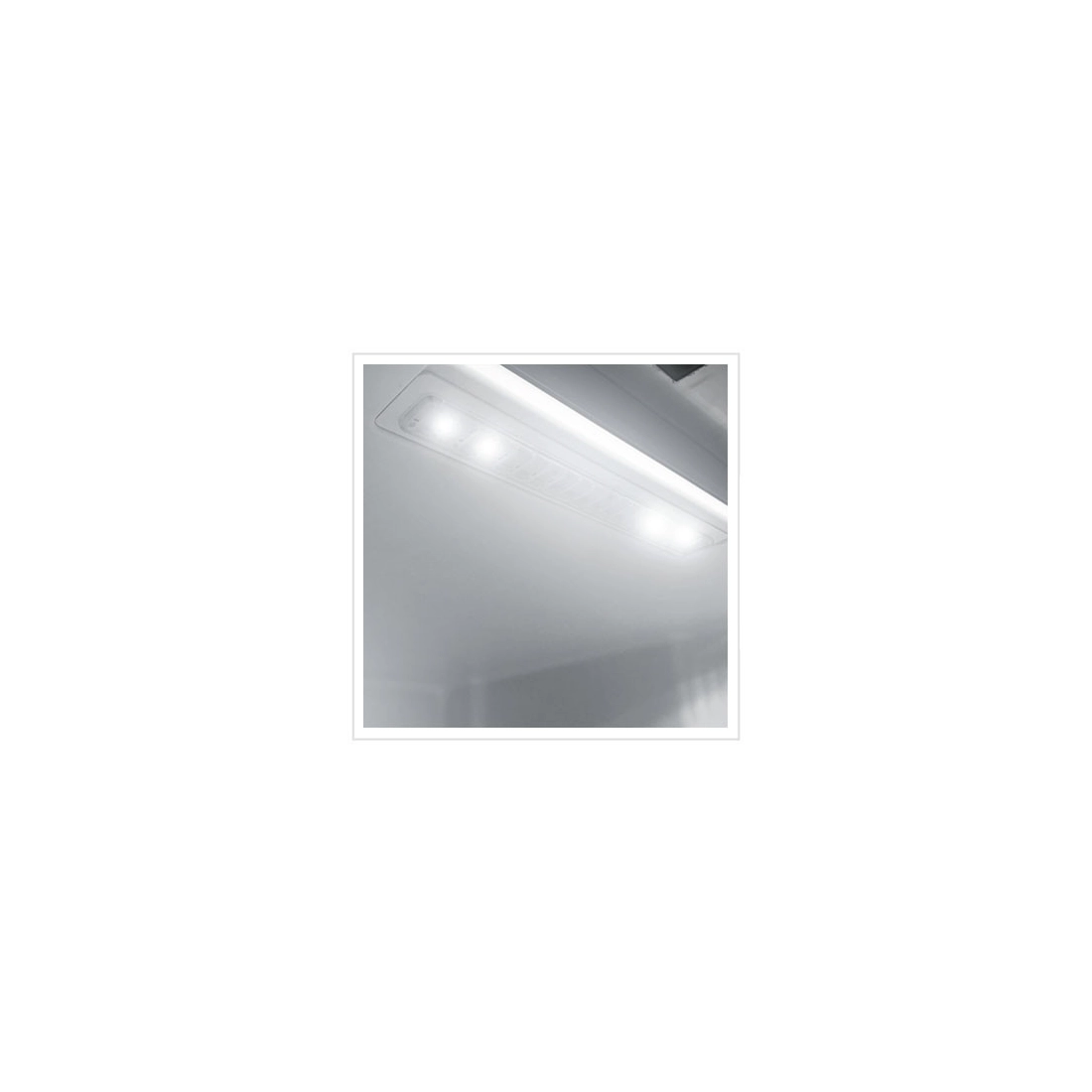

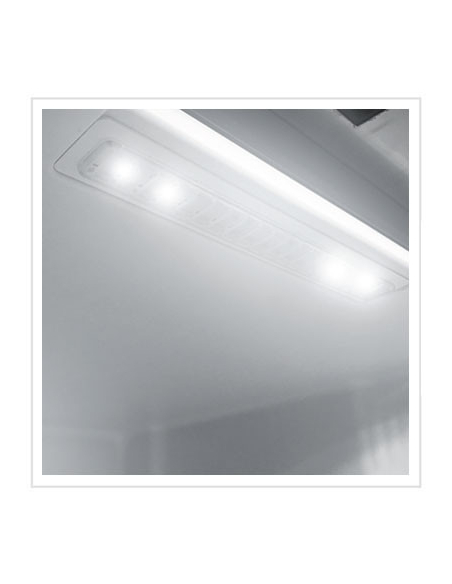

With additional options such as the dual-power D Power control unit and internal LED light,
the VITRIFRIGO DW360 OCX2 BTX IM
confirms itself as an ideal option for those seeking a high-quality refrigerator-freezer for boats.

Technical Specifications VITRIFRIGO DW360 OCX2 BTX IM:

Total capacity litres: 301
Upper compartment capacity litres: 157
Lower compartment capacity litres: 80+64
Net weight: 107 Kg
Upper c. power supply (A): 12/24Vdc (also available with bivalent 12/24Vdc - 100-240Vac 50/60Hz)
Lower c. power supply (B): 230Vac (115Vac optional)
Nominal consumption upper c. (A): 45W
Lower consumption nominal c.  (B): 168W (115Vac) - 140W (230 Vac)
Width: 682 mm.
Height: 1710 mm.
Depth: 596 mm.

Looking for a cockpit refrigerator with different technical characteristics? Here you can find the full range VITRIFRIGO or other specialized brands.

For more technical information, please refer to the attached datasheet.

The images and technical data are not binding and may be subject to revisions by the manufacturer.
