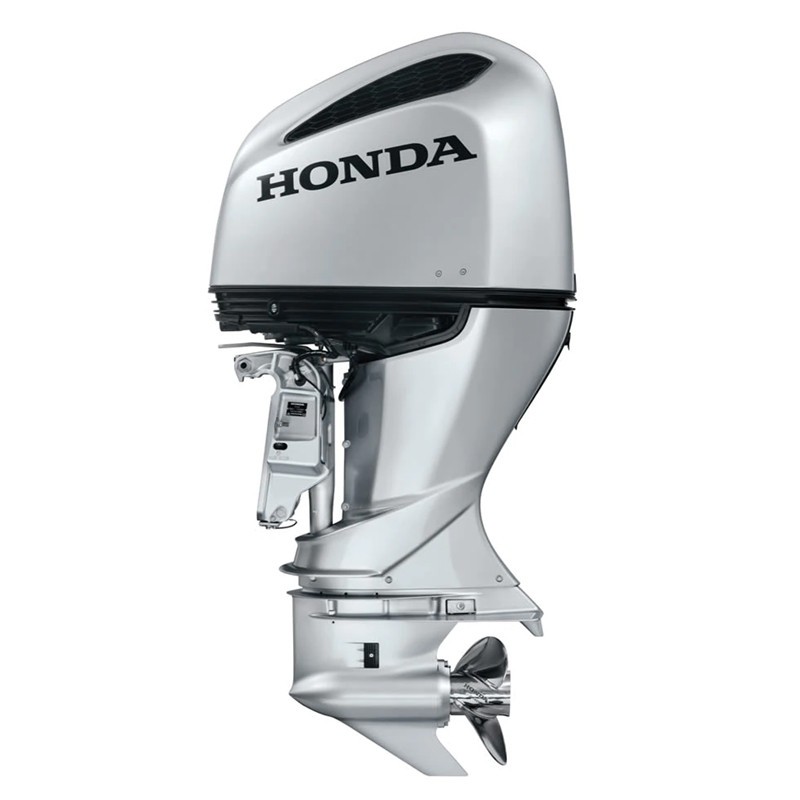

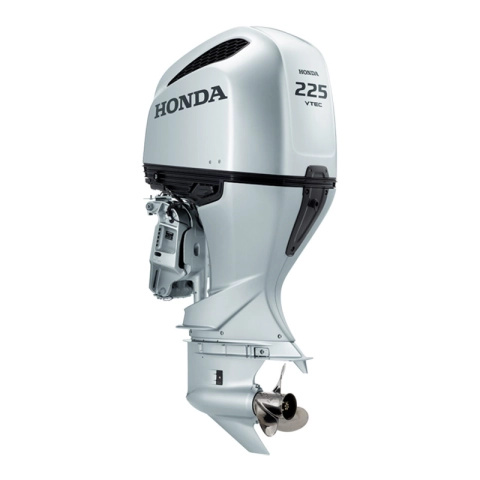

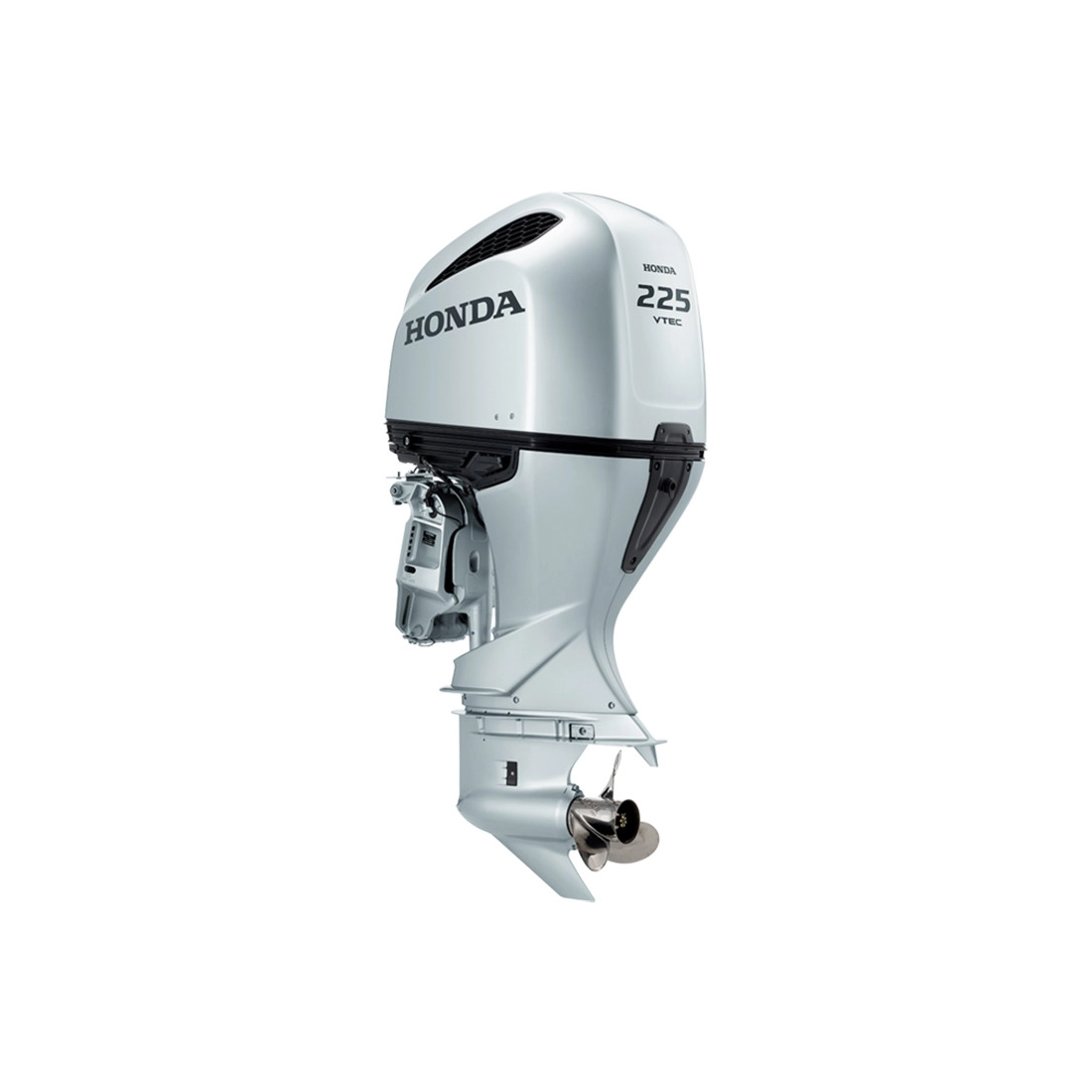

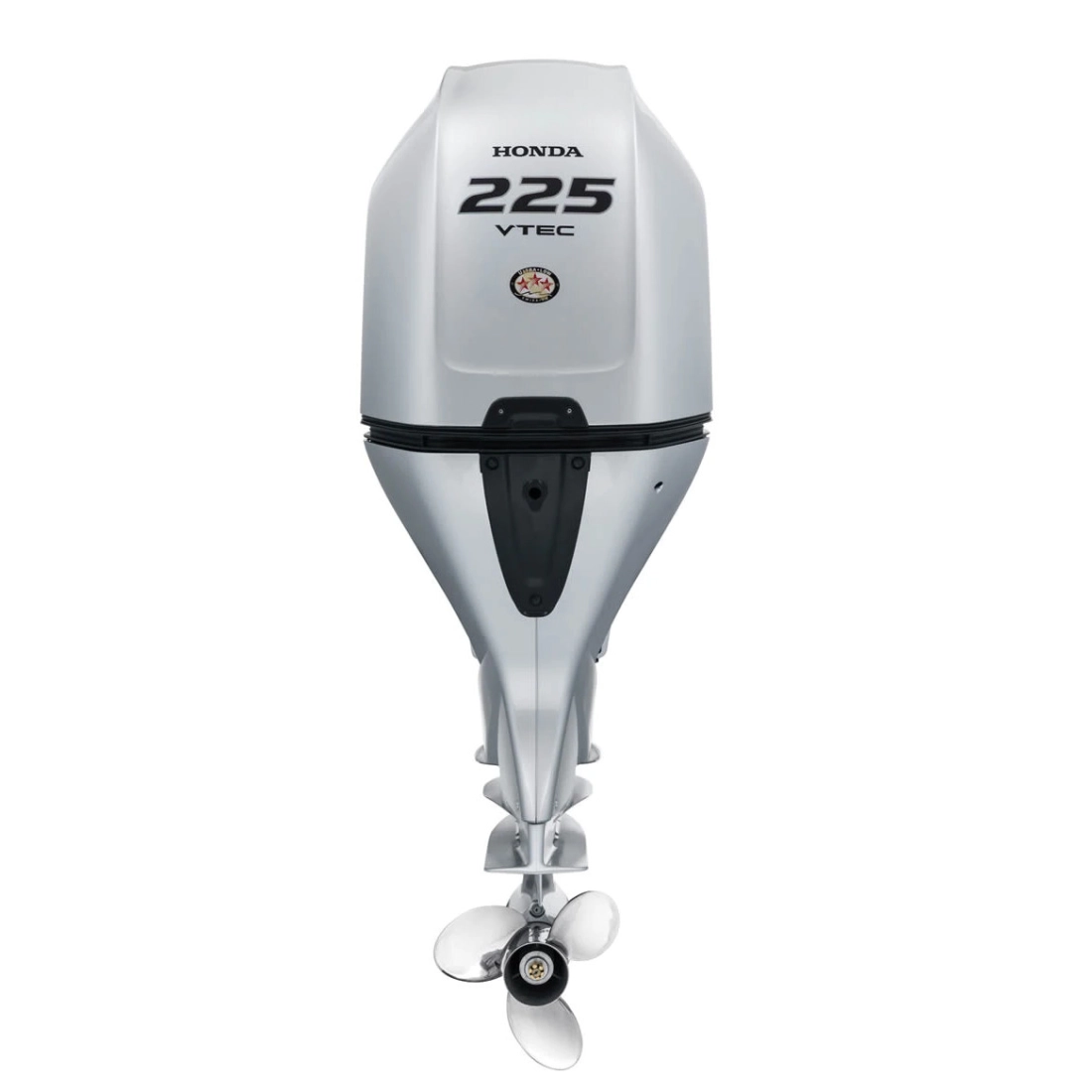

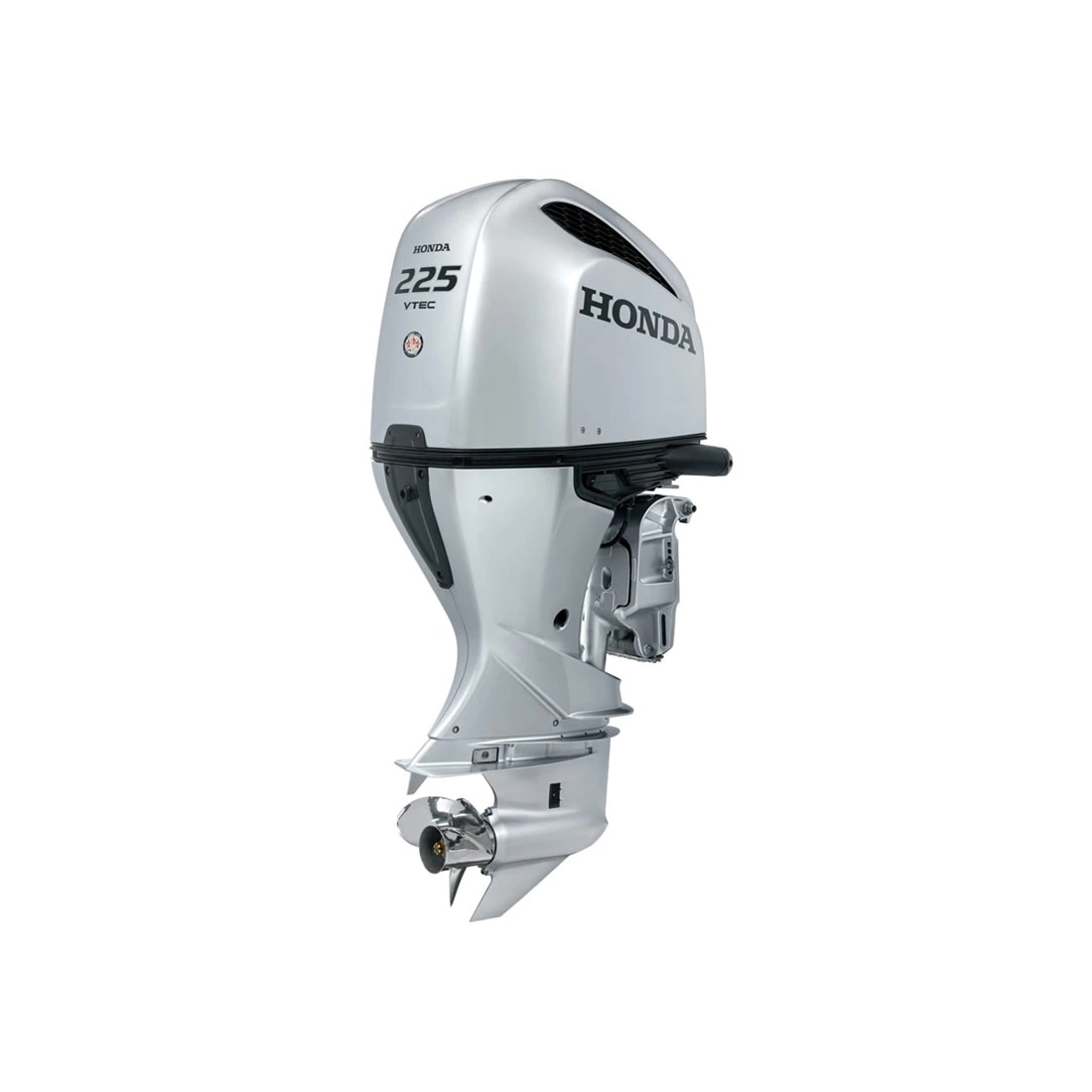

HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

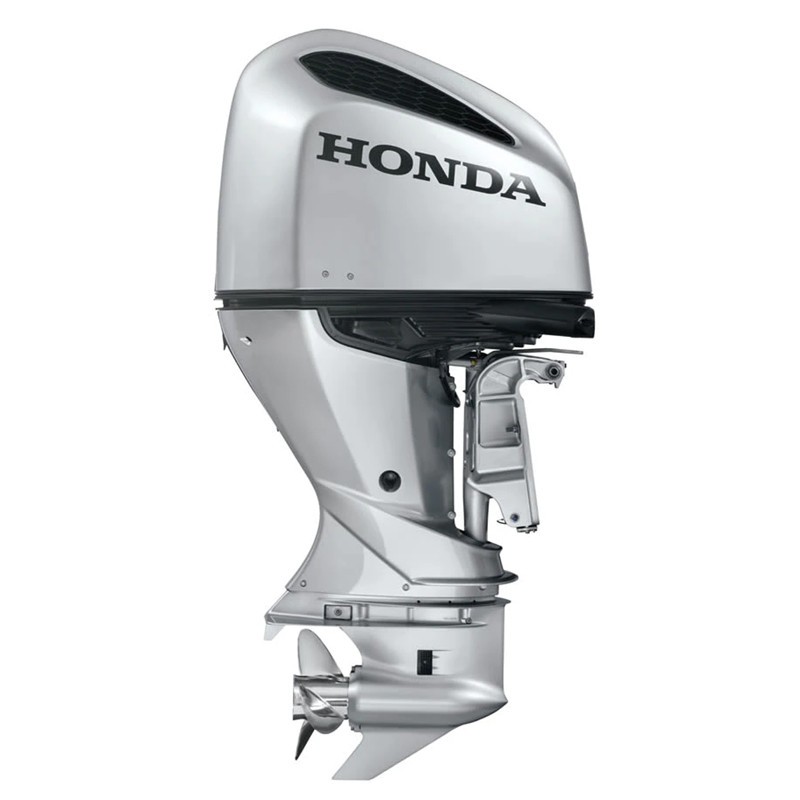

      HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

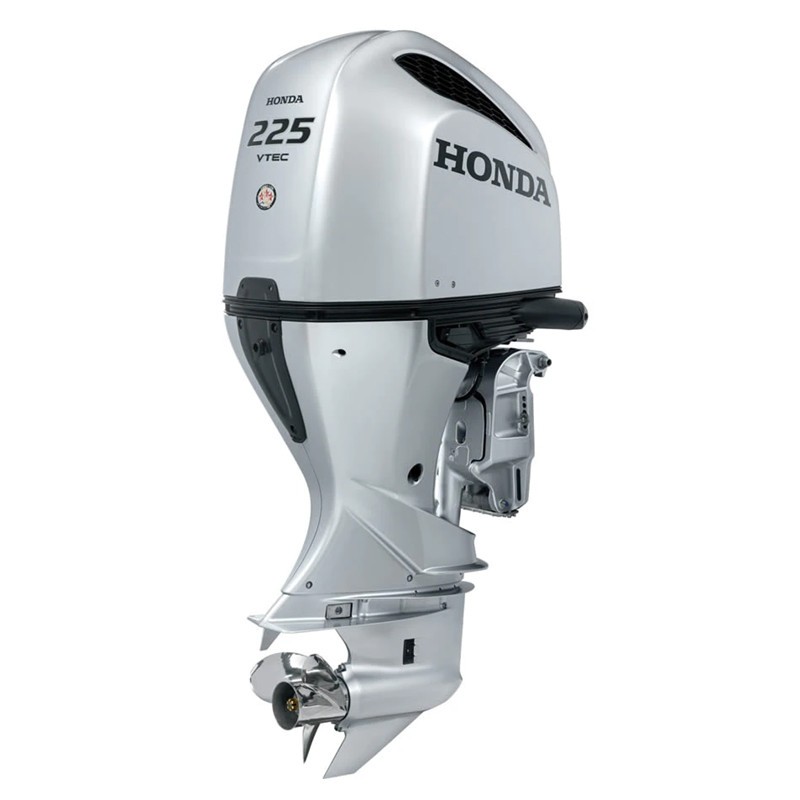

      HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

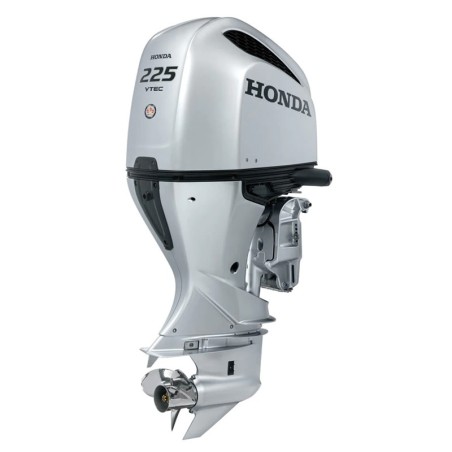

      HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

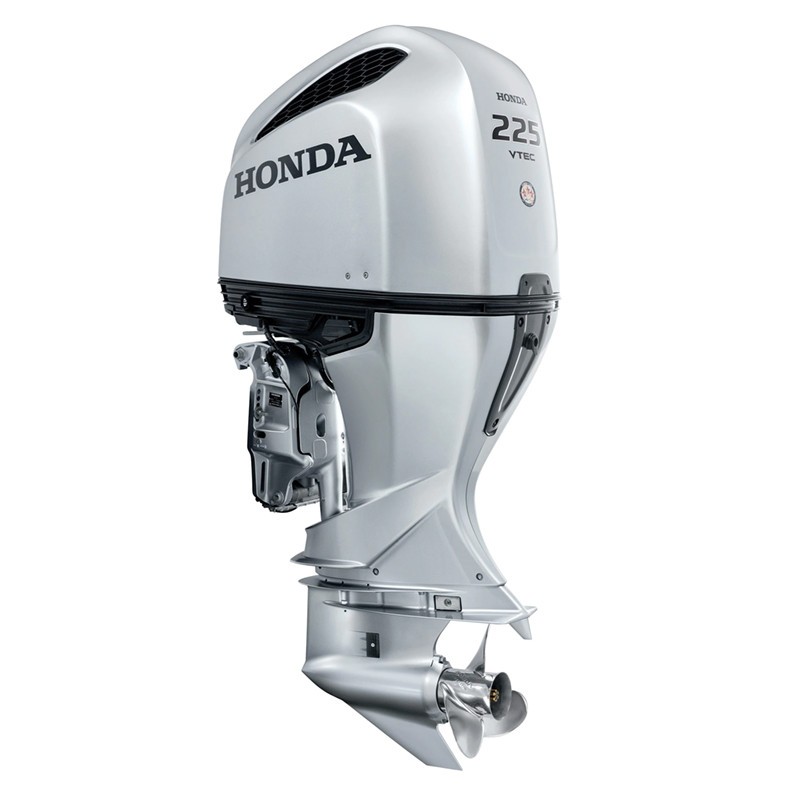

      HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

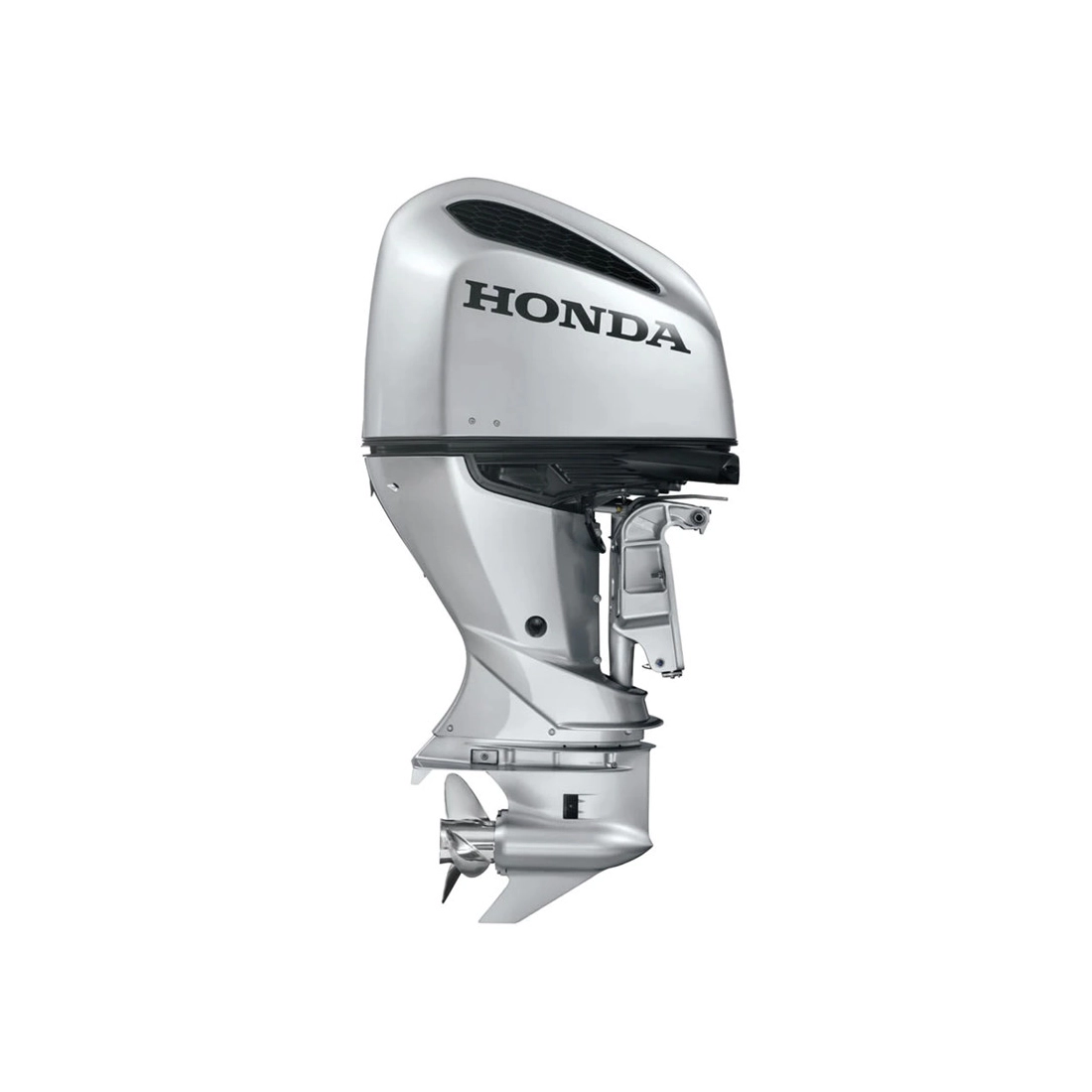

      HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

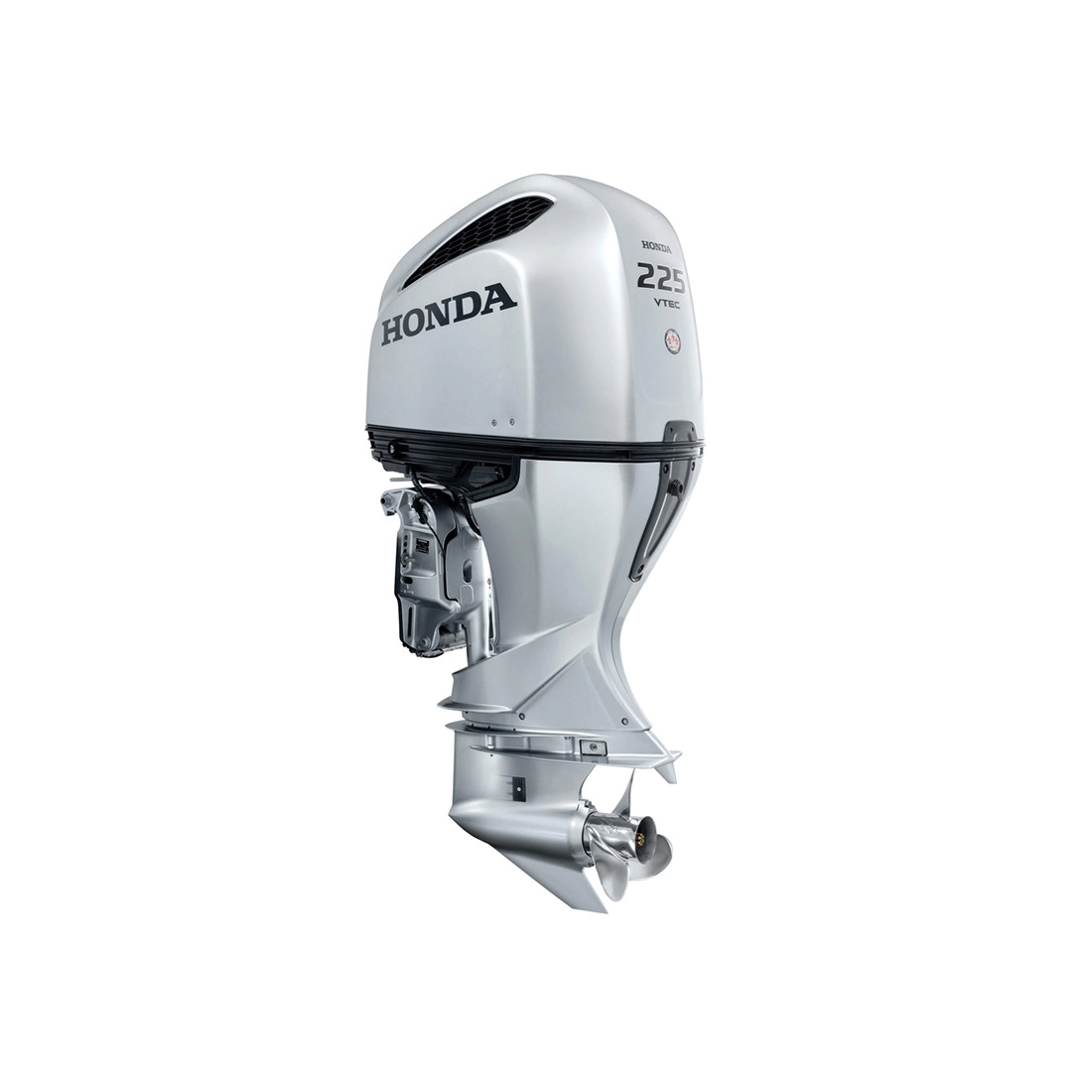

      HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

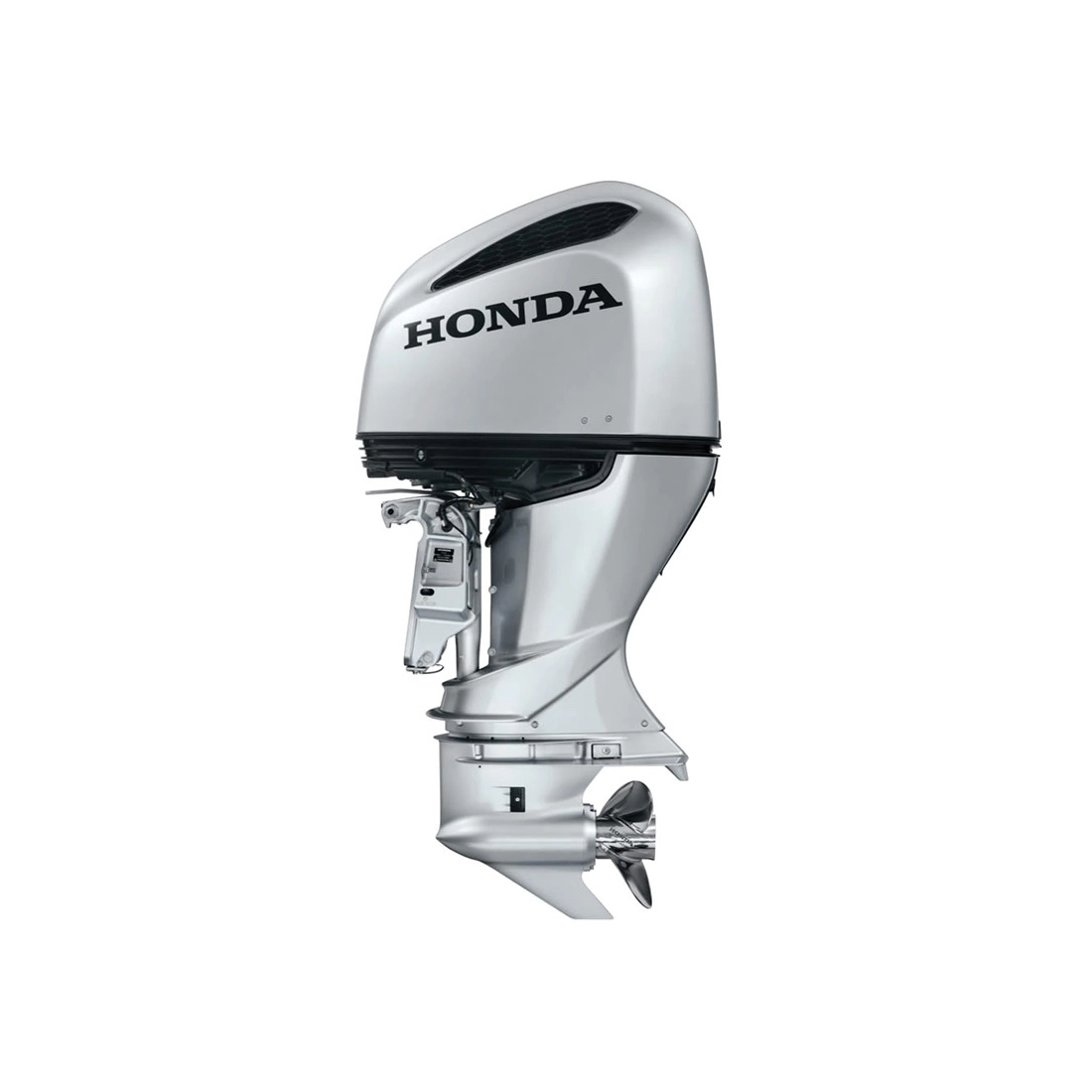

      HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

      BF 225D UCDU

      Net Power (kW): 165.5
      Net Power (Hp): 225
      Displacement: 3583 cm³
      Shaft length: Ultra long
      Starter: Electric
      Ignition system: Electronic PGM-IG
      Fuel supply: PGM-FI (Programmed electronic injection)
      Setup and engine lift: Electric
      Bore x Stroke: 89 x 96 mm
      Engine Brand: Honda
      Engine Type: OHC, 4 stroke
      Number of cylinders: V6 VTEC
      Speed at full throttle (rpm): 5000-6000
      Cooling system: Water
      Battery charge capacity (A): 60
      Propeller rotation: counter-rotating
      Transom height (mm): 762
      Length (mm): 948
      Width (mm): 660
      Height (mm): 2043
      Dry weight (Kg): 291

      Custom Quote
      Product: HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

      PERSONAL DATA


      Ask a question
      Product: HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL
      Offer on letterhead
      Product: HONDA OUTBOARD BF 225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL
      HONDA
      BF 225D UCDU

      Data sheet

      Fuel
      Gasoline
      Engine
      OHV
      Ignition
      Electronic PGM-IG
      Starting system
      Electric
      Engine capacity (cm³)
      3583
      Number cylinders
      6
      Cooling
      Water (with thermostat)
      Bore x stroke (mm)
      89 x 96
      Reduction ratio
      2.00
      Rpm at full throttle (rpm)
      5000 - 6000
      Appearance and engine lifting
      Electric
      Transom height (mm)
      762
      Net power (kW)
      165.5
      Width (mm)
      660
      Height (mm)
      2043
      Dry weight (Kg)
      291
      Shaft Length
      U
      Controls
      Remote

      Specific References

      New

      HONDA OUTBOARD BF225D UCDU ULTRA LONG SHAFT 225HP ELECTRONIC CONTROL

      Honda BF225D UCDU outboard motors are perfect for professional use, they are reliable, compact and lightweight complete with PGM-IG electronic fuel injection system.

      Just press the start&stop button to hear the deep, distinctive sound of the V6. Hand on the throttle and off you go, as the revs increase, these Honda outboards combine cruising comfort with exhilarating high-performance thrust with extremely low vibration levels.

      Honda BF225D UCDU outboards are optimized to offer more power for a wide range of different boats. The firm, smooth power this advanced technology offers is sure to put a smile on your face as you venture out to sea.

      Honda BF225D UCDU are large displacement engines, featuring high torque value, giving you high acceleration and exceptional top speeds. Honda's exclusive BLAST, PGM-FI, VTEC ECOmo and foot-mounted gearbox technologies ensure smooth power delivery with minimal hydrodynamic resistance.

      VTEC™ is an efficient system included in the Honda BF225D UCDU outboard that keeps fuel consumption down while delivering an exciting increase in power. In the Honda BF225D UCDU, it works by using two different cams:

      1) When the engine is running at low rpm, the valves are operated by a cam less aggressively providing low fuel consumption and excellent performance.

      2) As engine speed increases to 5000 rpm, the VTEC™ system hydraulically operates a cam with a higher lift profile. This keeps the valves open longer, allowing more air into the combustion chamber to produce optimum power, just like in a Formula One race car.

      When fully open, this valve changes the resonance and airflow generating more torque at low RPM. When the throttle valve is fully open and revs increase, the cooling valve closes and creates a direct airflow to the engine. This provides more power above 3500 rpm. Combined with the BLAST system, a disruptive effect is achieved.

      The special ECOmo poor-blend combustion control system inside the Honda BF225D UCDU outboard delivers significant fuel economy right through RPM and performance. Once at RPM, the outboard consumes significantly less fuel. Maintaining this RPM and staying there will give the best results.

      TECHNICAL SPECIFICATIONS HONDA BF225D UCDU

      Net Power (kW): 165.5
      Net Power (Hp): 225
      Displacement: 3583 cm³
      Shaft length: Ultra long
      Starter: Electric
      Ignition system: Electronic PGM-IG
      Fuel supply: PGM-FI (Programmed electronic injection)
      Setup and engine lift: Electric
      Bore x Stroke: 89 x 96 mm
      Engine Brand: Honda
      Engine Type: OHC, 4 stroke
      Number of cylinders: V6 VTEC
      Speed at full throttle (rpm): 5000-6000
      Cooling system: Water
      Battery charge capacity (A): 60
      Propeller rotation: counter-rotating
      Transom height (mm): 762
      Length (mm): 948
      Width (mm): 660
      Height (mm): 2043
      Dry weight (Kg): 291

      Are you looking for an outboard with different technical characteristics? Here you can find the full range of Honda outboards or other brands specializing in the field.

      The images are purely indicative.
