GENERATOR SET with AUTOMATIC PANEL 165KVA STAGE V

GEQA165STV
      GENERATOR SET with AUTOMATIC PANEL 165KVA STAGE V
      GENERATOR SET with AUTOMATIC PANEL 165KVA STAGE V
      GENERATOR SET with AUTOMATIC PANEL 165KVA STAGE V

      Type of phase: three-phase
      Maximum three-phase power: 132 KW - 165 KVA
      Three-phase continuous power: 120 KW - 150 KVA
      Fuel: Diesel
      Voltage: 400 V
      Frequency: 50 Hz
      Engine: FPT NEF N67TEVP06.00
      Engine speed: 1500 rpm
      Displacement: 6728 cc
      No. of cylinders: 6
      Cooling Liquid
      Starter: Electric
      Consumption: 24.5 Lt/h at 75% load
      Length: 3600 mm
      Width: 1200 mm
      Height: 2300 mm
      Weight: 3070 Kg
      Silenced
      AVR
      Standard tank capacity: 250 lt
      Consumption 50-75-100% load: 17 - 24.6 - 32.8 lt-h
      Autonomy: 10,2 h at 75% load
      Alternator: STAMFORD - MECC ALTE - MARELLI MOTORS
      Noise level: 69 dB(A) 7 m
      Electrical system voltage: 24 V

      List price
      91,085.20 € tax incl.
      74,660.00 € tax excl.
      Discounted Price
      53,741.00 € tax incl.
      44,050.00 € tax excl.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      NO BRAND
      GEQA165STV

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      132
      Continuous power three phase (KW)
      120
      Maximum power three phase (KVA)
      165
      Continuous power three phase (KVA)
      150
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Sockets configuration
      Terminal box
      Engine
      FPT NEF N67TEVP06.00
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Engine capacity (cm³)
      6728
      Number cylinders
      6
      Cooling
      Water
      Alternator
      Self-excited, brushless
      Poles
      4
      Protection degree
      IP44
      Bore x stroke (mm)
      104 x 132
      Fuel tank capacity (L)
      250
      Consumption (L/h)
      24,6
      Running time (h)
      10.2
      Acoustic pressure
      69 dB(A) at 7 m
      Length (mm)
      3600
      Width (mm)
      1200
      Height (mm)
      2300
      Silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      FPT Iveco
      Weight (Kg)
      3070

      Specific References

      New

      GENERATOR SET WITH AUTOMATIC PANEL 165KVA STAGE V

      Generator Set with Automatic Switchboard 165 KVA STAGE V: Power and Reliability for Your Energy Needs

      The 165 KVA STAGE V genset with automatic panel is the ideal solution for those who need a reliable source of energy,

      powerful and versatile energy source to meet the highest energy needs.

      Main features:

      Maximum three-phase power: 165 KVA (132 KW)

      Three-phase continuous power: 150 KVA (120 KW)

      FPT NEF N67TEVP06.00 (STAGE V) engine: 6-cylinder liquid-cooled diesel engine,

      reliable, high-performance and complying with the latest STAGE V emission standards.

      Engine speed: 1500 rpm

      Displacement: 6728 cc

      Efficient fuel consumption: Low fuel consumption (24.5 Lt/h at 75% load) for optimum range.

      Compact and robust design: Robust and durable construction for safe and long-lasting use.

      Silent: Soundproof design for minimal noise impact (69 dB(A) at 7 metres).

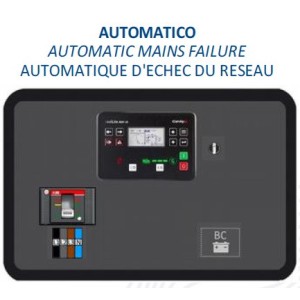

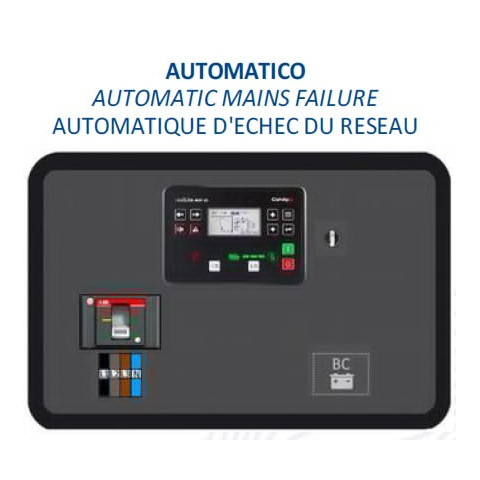

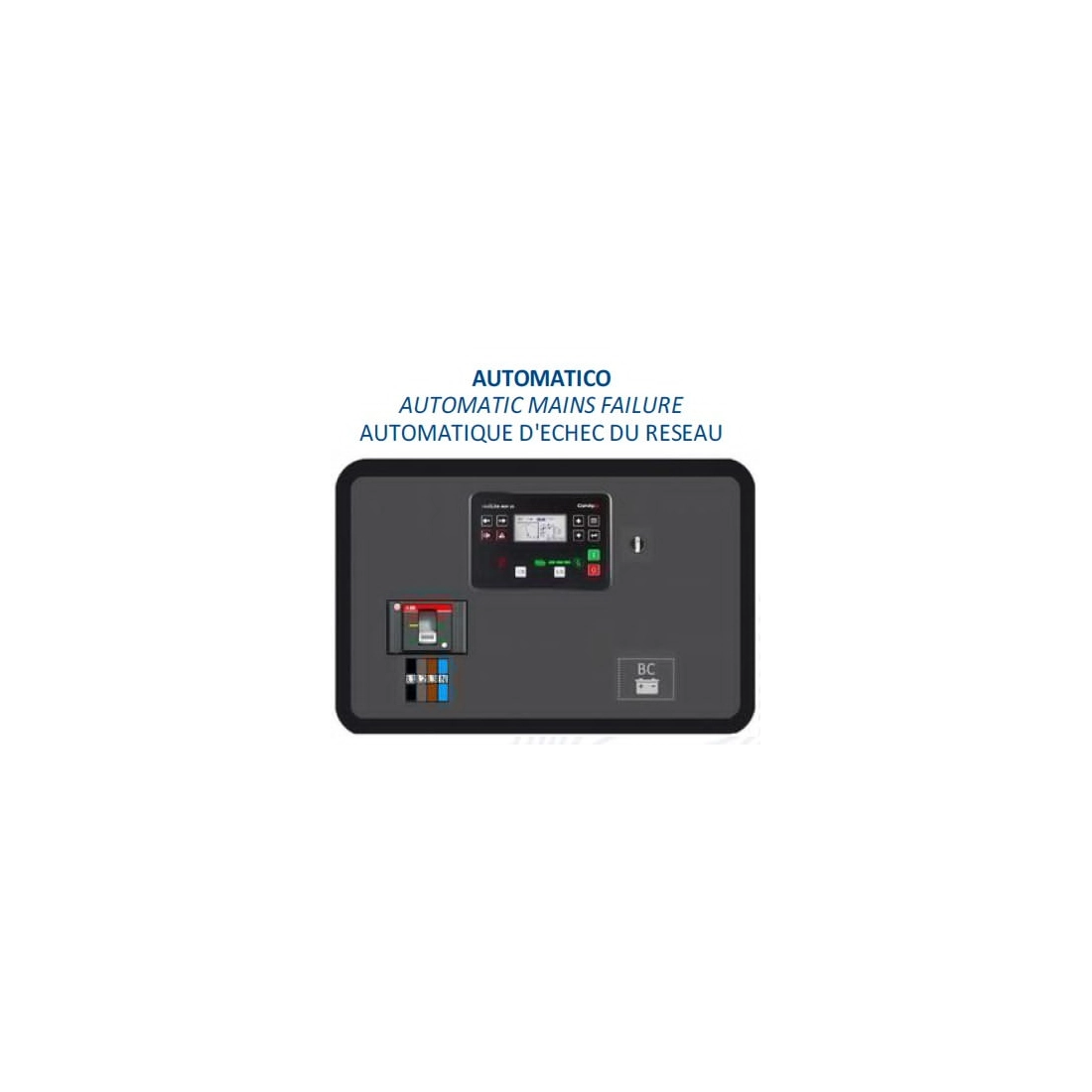

      Automatic control panel: Automatic start-up, shutdown and load management for optimal operation.

      Automatic voltage regulation system (AVR): Stable output voltage for correct operation of connected equipment.

      Standard tank capacity: 250 litres for an autonomy of 10,2 hours at 75% load.

      Alternator: STAMFORD, MECC ALTE or MARELLI MOTORS for guaranteed quality and reliability.

      TECHNICAL SPECIFICATIONS ELECTROGEN GROUP with AUTOMATIC PANEL 165KVA STAGE V

      TType of phase: three-phase

      Maximum three-phase power: 132 KW - 165 KVA
      Three-phase continuous power: 120 KW - 150 KVA
      Fuel: Diesel
      Voltage: 400 V
      Frequency: 50 Hz
      Engine: FPT NEF N67TEVP06.00
      Engine speed: 1500 rpm
      Displacement: 6728 cc
      No. of cylinders: 6
      Cooling Liquid
      Starter: Electric
      Consumption: 24.5 Lt/h at 75% load
      Length: 3600 mm
      Width: 1200 mm
      Height: 2300 mm
      Weight: 3070 Kg
      Silenced
      AVR
      Standard tank capacity: 250 lt
      Consumption 50-75-100% load: 17 - 24.6 - 32.8 lt-h
      Autonomy: 10,2 h at 75% load
      Alternator: STAMFORD - MECC ALTE - MARELLI MOTORS
      Noise level: 69 dB(A) 7 m
      Electrical system voltage: 24 V

      If you are looking for a product similar to the Genset click HERE.

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
