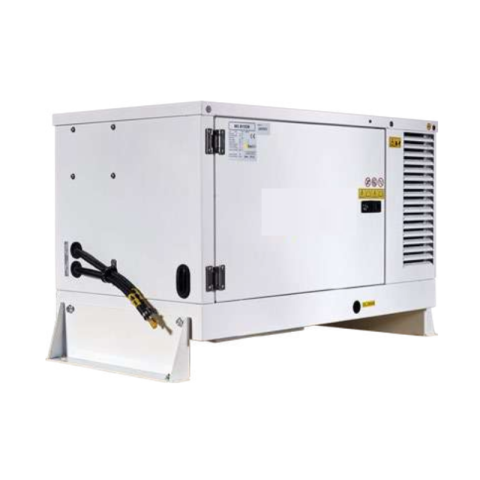

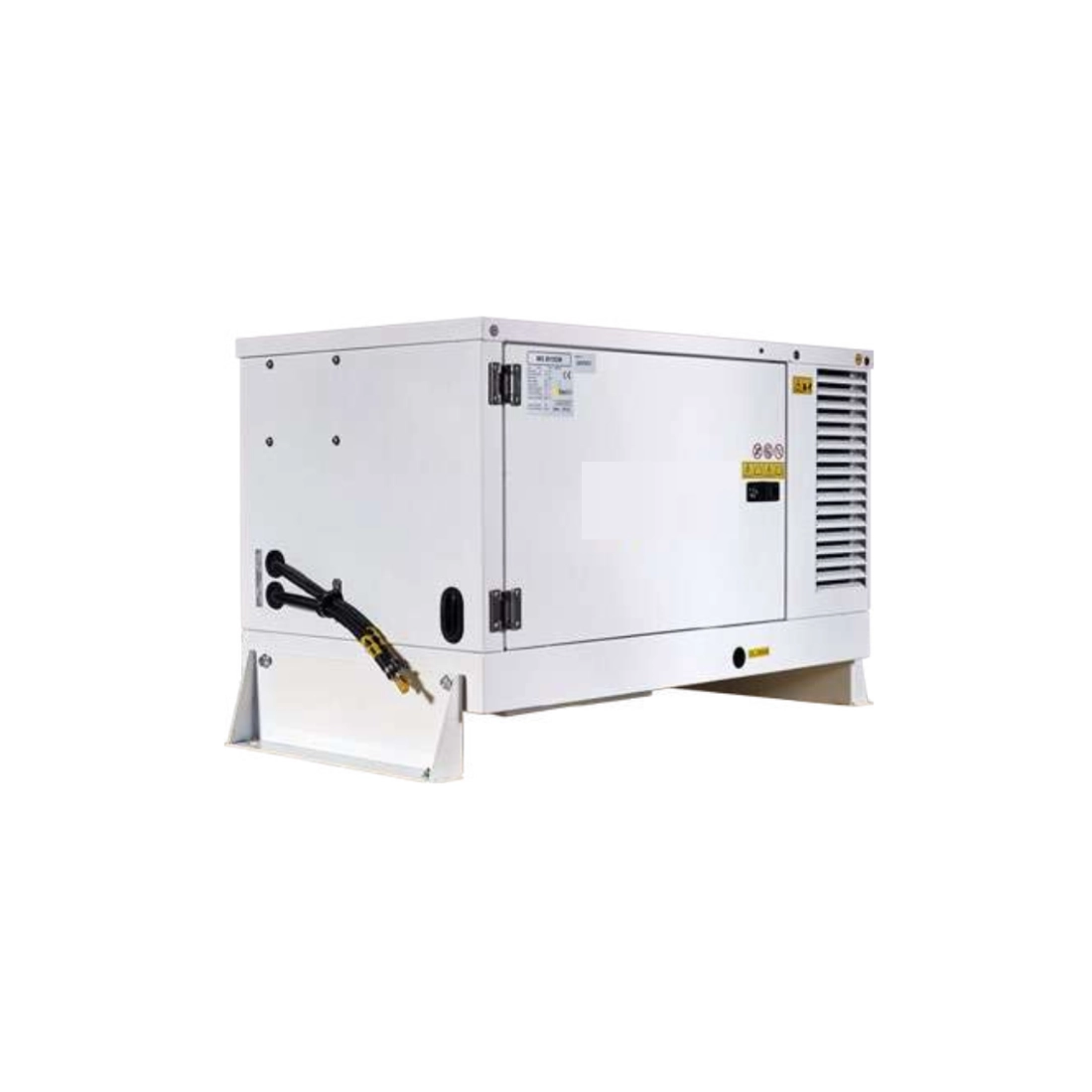

VEHICULAR GENERATOR 10.3 KVA STAGE V

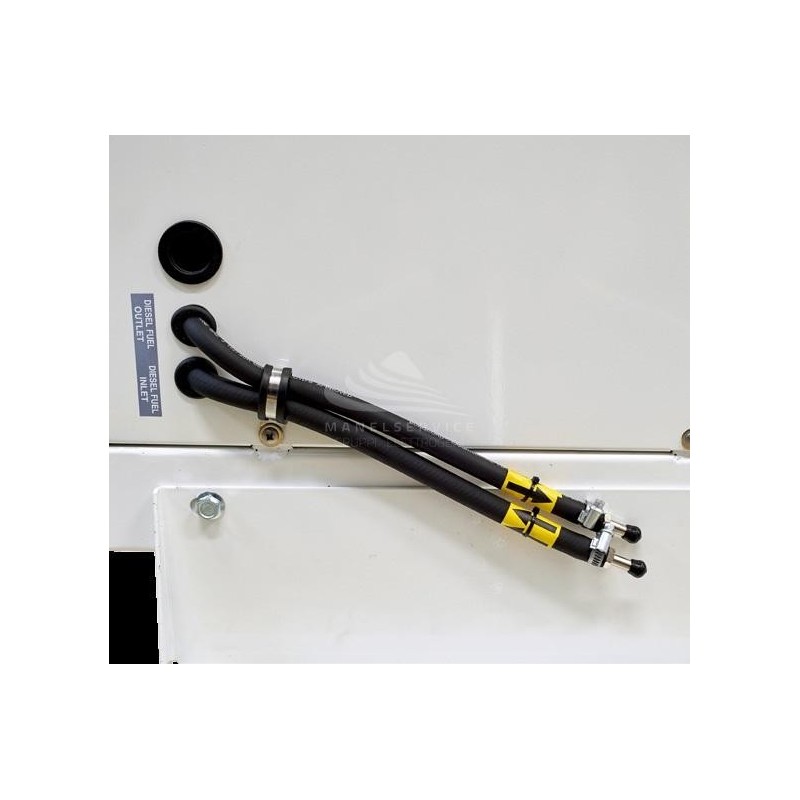

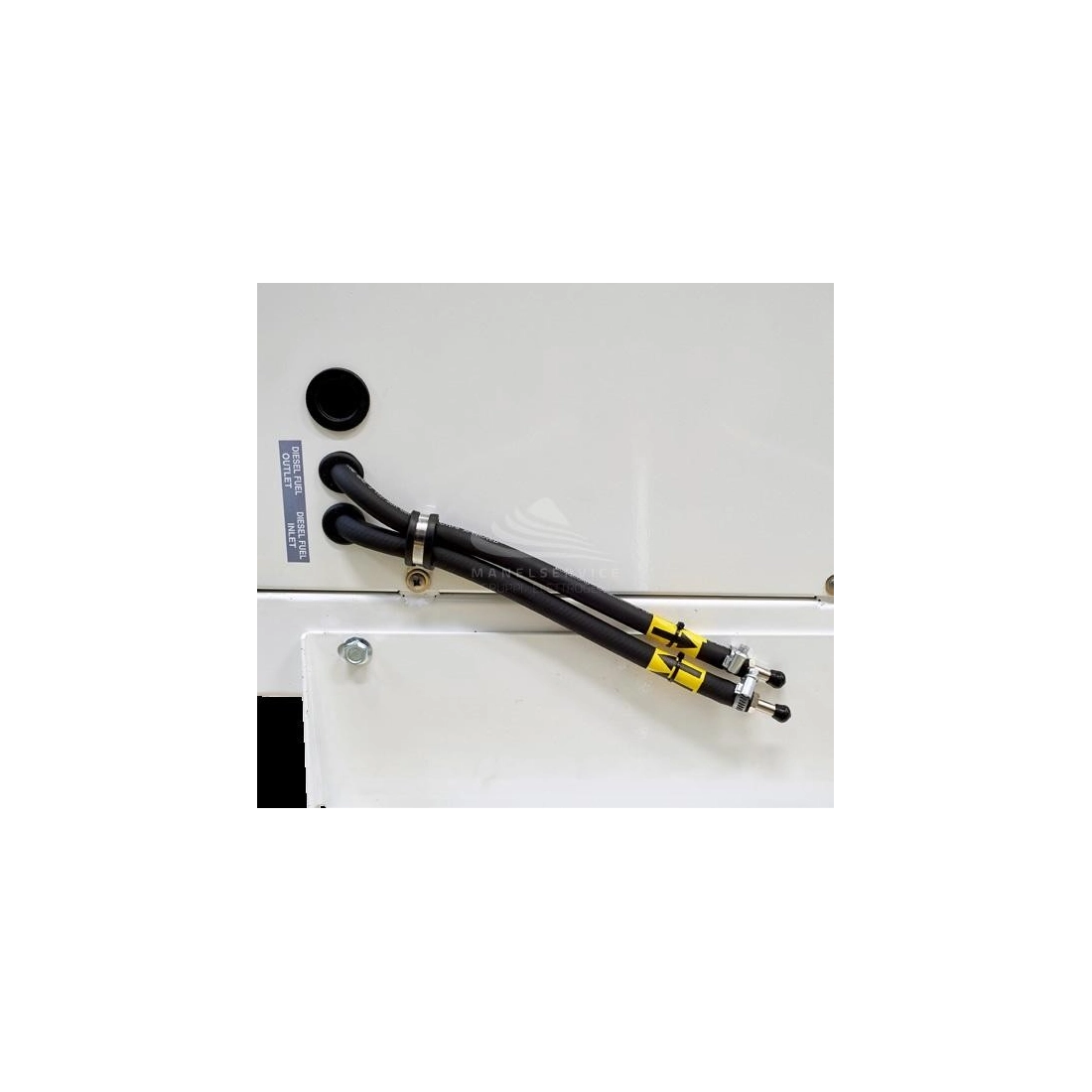

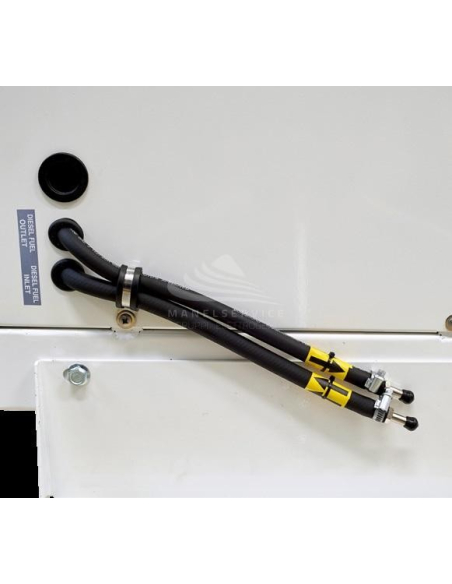

GENSET MG 9010 DM - Fuel inlet and outlet

Reference GEV10-3KVA

Maximum power Single-phase: 10.3 KVA
Maximum power Single-phase: 8.24 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Kubota D722 (STAGE V)
Starting: Electric
Consumption: 3.3 Lt/h
Length: 1010 mm
Width: 550 mm
Height: 560 mm
Weight: 220 Kg

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 8.24
Maximum power single phase (KVA): 10.3
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: KUBOTA D722, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 719
Number cylinders: 3
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Consumption (L/h): 3.3
Acoustic power: 87 dB(A)
Acoustic pressure: 62 dB(A) at 7 m
Length (mm): 1010
Width (mm): 550
Height (mm): 560
Dry weight (Kg): 220
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: No
Engine manufacturer: Kubota

Brand

VEHICULAR genset 10.3 KVA STAGE V

Vehicle Generator Set 10.3 KVA: Power and Compactness for Your Needs on the Move

The 10.3 KVA Vehicle Generating Set is the ideal solution for those who need a reliable and compact power source to be installed on commercial or work vehicles.

Main features:

High single-phase power:
Maximum single-phase power: 10.3 KVA (8.24 kW)

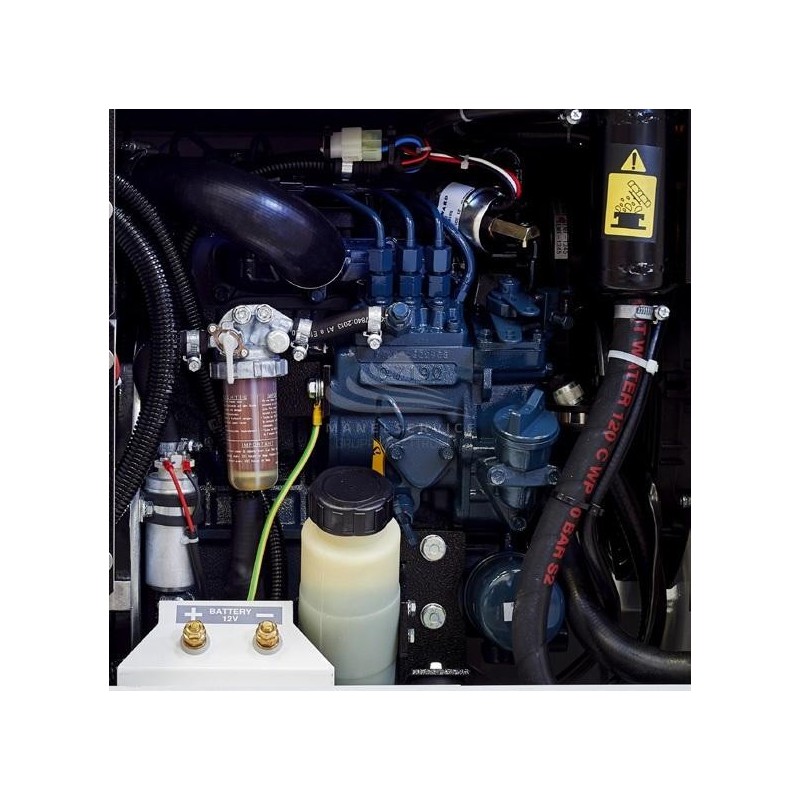

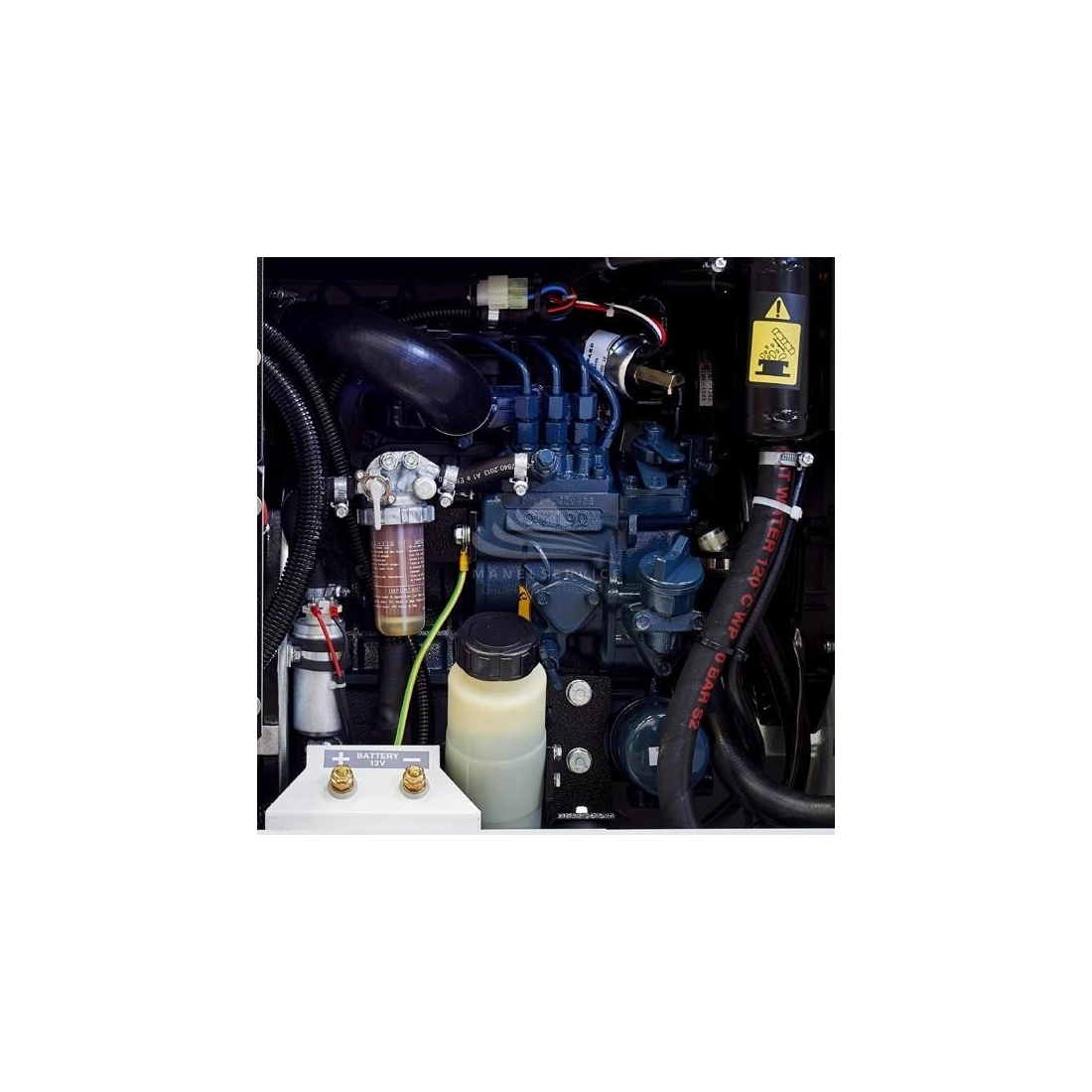

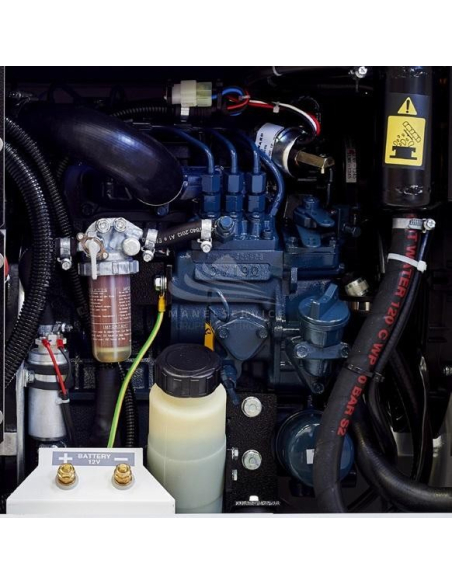

Kubota D722 engine (STAGE V): Reliable, high-performance,
water-cooled 2-cylinder diesel engine complying with the latest STAGE V emission standards.

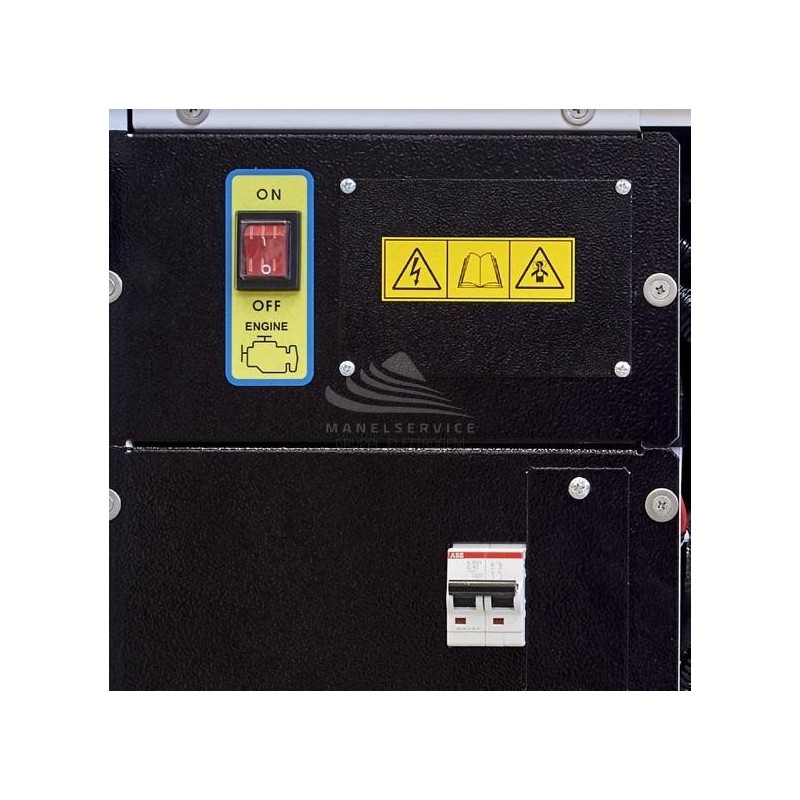

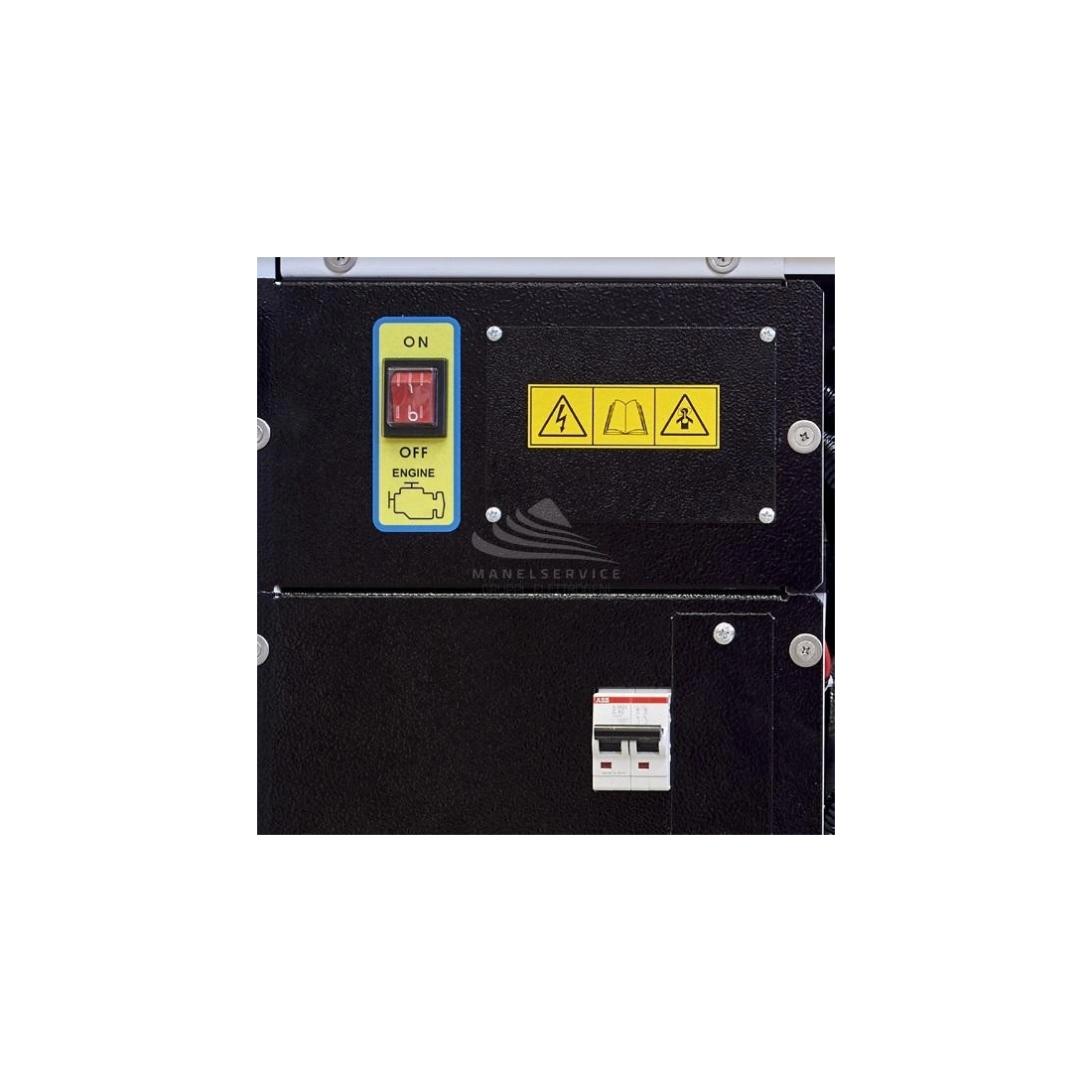

Electric start: Quick and easy key-operated start.
Efficient consumption: Low fuel consumption (3.3 Lt/h) for optimum autonomy.
Compact and lightweight design: Easy to install on vehicles of different sizes.
Robust construction: Durable construction for safe and long-lasting use.

Technical characteristics VEHICULAR Generator Set 10.3 KVA STAGE V:

If you are looking for a similar product to genset with different characteristics CLICK HERE.

Images and technical data not binding.
