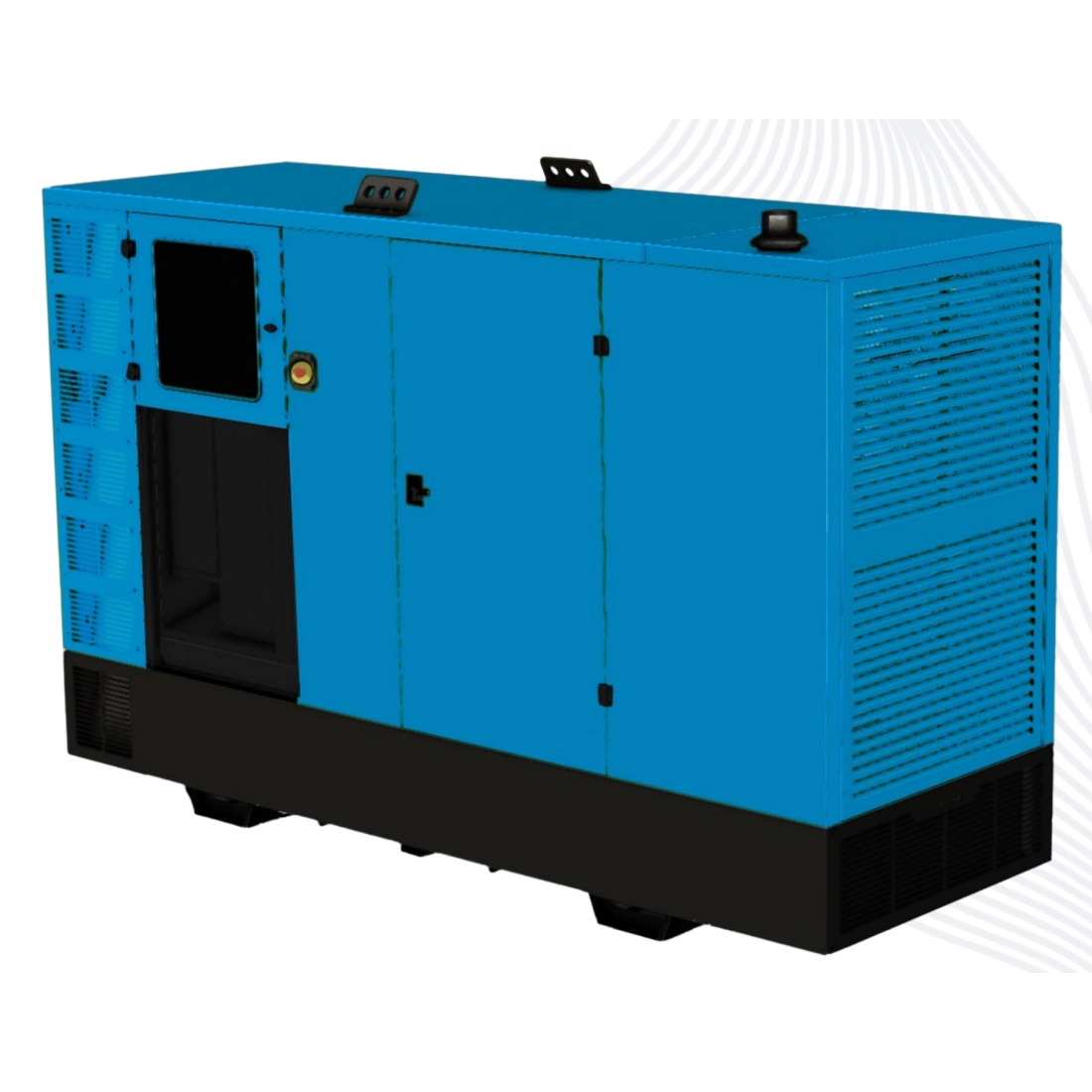

Generator Set With Automatic Panel 120KW Stage 5

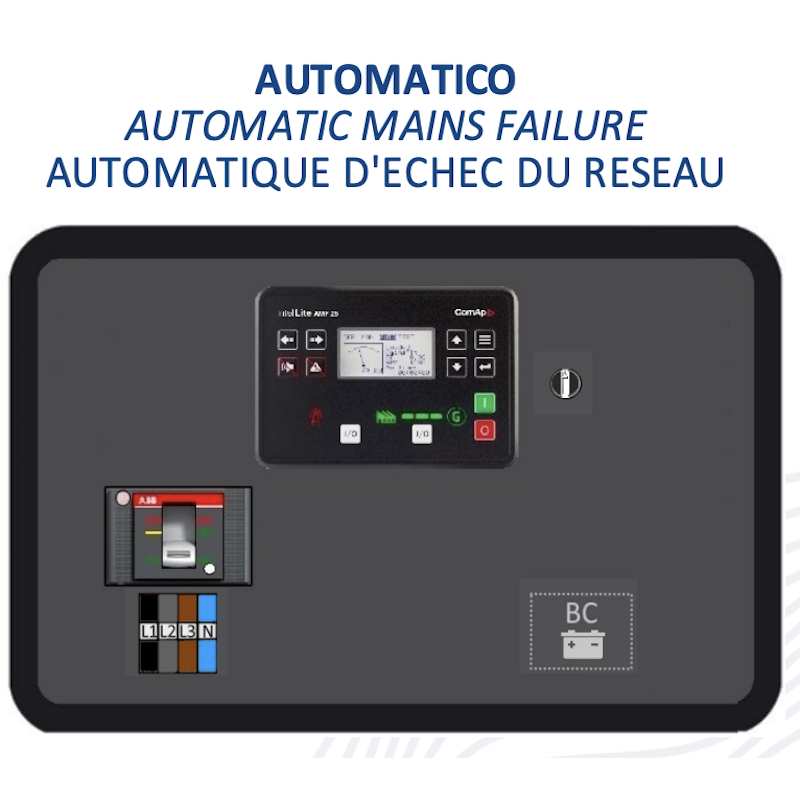

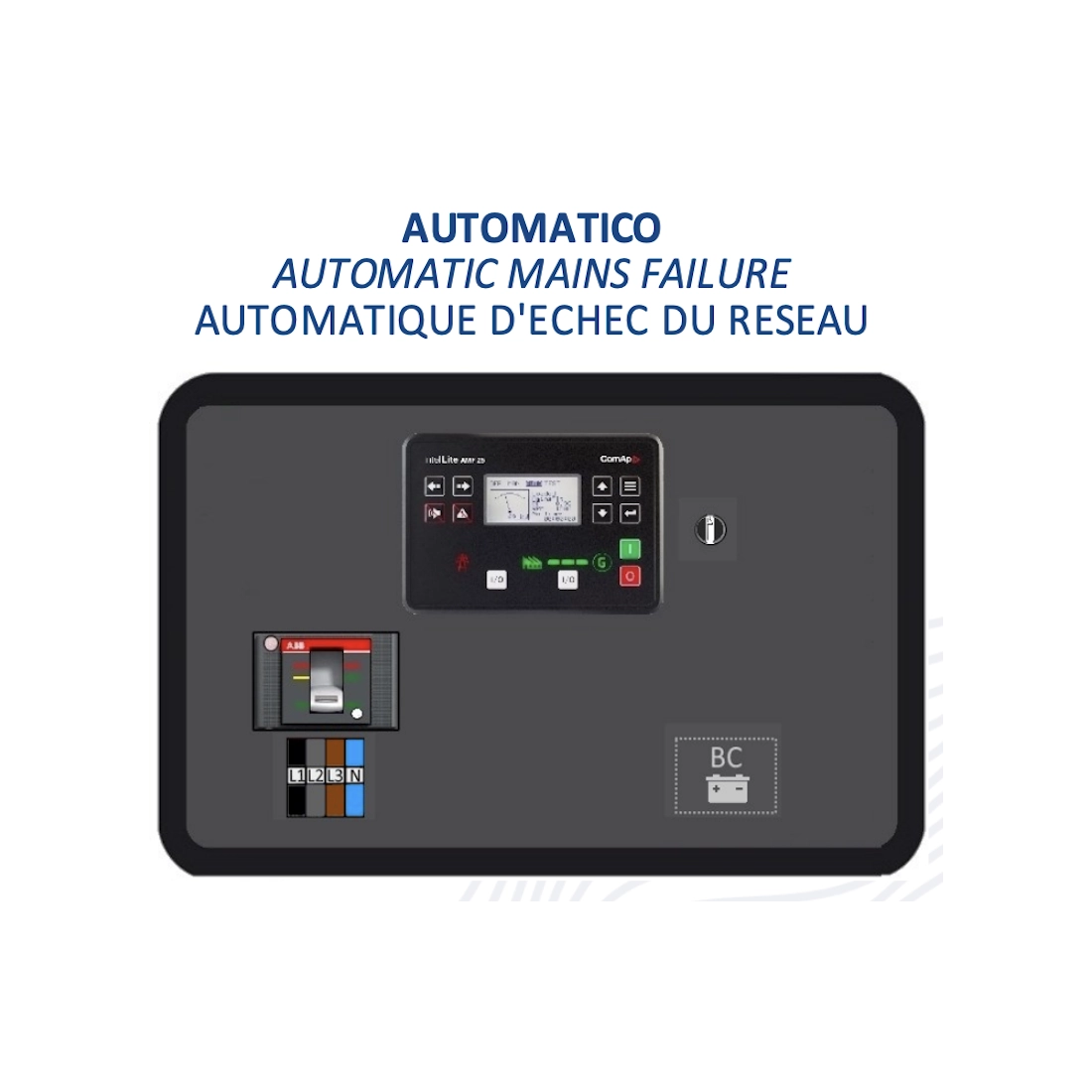

GENERATING SET 100KVA WITH AUTOMATIC CONTROL PANEL

Reference 120KW STAGE 5

Type of phase: three-phase
Three-phase emergency power: 132 KW / 165 KVA
Three-phase continuous power: 120 KW / 150 KVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: FPT NEF N67TEVP06.00
Motor speed: 1500 rpm
System type: Electric
Consumption: 50-75-100%- 17 - 24.6 - 32.8 l/h
Length: 3600 mm
Width: 1200 mm
Height: 2300 mm
Weight: 3070 kg
Silenced
Voltage regulator: AVR
Emission standards: Stage 5

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 132
Continuous power three phase (KW): 120
Maximum power three phase (KVA): 165
Continuous power three phase (KVA): 150
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: Terminal box
Engine: FPT NEF N67TEVP06.00
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 6728
Number cylinders: 6
Cooling: Water
Alternator: Self-excited, brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 104 x 132
Fuel tank capacity (L): 250
Consumption (L/h): 32.8 at 100% load
Running time (h): 14.4
Length (mm): 3600
Width (mm): 1200
Height (mm): 2300
AVR: Yes
Silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: FPT Iveco
Weight (Kg): 3070

Brand

120KW WITH SILENCED THREE-PHASE AUTOMATIC PANEL HEATING UNIT Stage 5A

Technical characteristics of the 120KW ELECTRIC GENERATOR GROUP WITH SILENCED 3-PHASE PANEL Stage 5A:
Type of phase: three-phase
Three-phase emergency power: 132 KW / 165 KVA
Three-phase continuous power: 120 KW / 150 KVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: FPT NEF N67TEVP06.00
Motor speed: 1500 rpm
System type: Electric
Consumption: 50-75-100%- 17 - 24.6 - 32.8 l/h
Length: 3600 mm
Width: 1200 mm
Height: 2300 mm
Weight: 3070 kg
Silenced
Voltage regulator: AVR
Emission standards: Stage 5

if you are looking for a product similar to this generator click here.

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
