KOHLER 28 EFKOZD Single-phase 28 kVA

kohler 28 efkozd single phase 28 kva marine generator set
search
  • kohler 28 efkozd single phase 28 kva marine generator set
  • kohler 28 efkozd single phase 28 kva marine generator set
  • kohler 28 efkozd single phase 28 kva marine generator set
  • kohler 28 efkozd single phase 28 kva marine generator set
KOHLER
KOHLER 28 EFKOZD 230
New product

Phase type: Single-phase
Single-phase continuous power at 230 V: 28 KW
Single-phase continuous power at 240 V: 23 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 V or 240 V
Motor: Kohler
Motor speed: 1500 rpm
Length: 1303 mm
Width: 661 mm
Height: 778 mm
Dry weight: 591 Kg

Technical features
Phase
Single phase
Continuous power single phase (KW)
28
Continuous power single phase (KVA)
28
Fuel
Diesel
Frequency (Hz)
50
Engine
Kohler
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
2500
Number cylinders
4
Cooling
Water
Bore x stroke (mm)
88 x 102
Compression ratio
17 : 1
Motor insulation class
H
Consumption (L/h)
7.1 at 75% of the load
Length (mm)
1304
Width (mm)
652.5
Height (mm)
780
Dry weight (Kg)
663
Silenced
Yes
Super silenced
Yes
Brushes
No
Type of combustion
Direct
Product type
Generator
Voltage regulator
AVR
Engine manufacturer
Kohler
Details

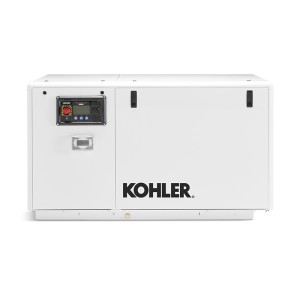

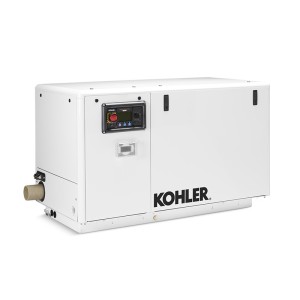

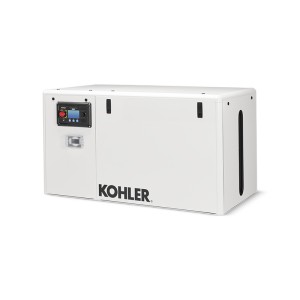

Super-silenced single-phase KOHLER 28EFKOZD marine generator 28 KVA AVR

Kohler 28EFKOZD single phase 28 KVA marine generator with 1500 rpm motor. The KOHLER 28EFKOZD single-phase marine generator is built with a soundproof enclosure that makes it supersilenced. The KOHLER 28EFKOZD single-phase marine generator is built with a 4-cylinder, 4-cycle Kohler diesel-powered engine, closed cooling system with heat exchanger. The alternator of the single-phase KOHLER 28EKOZD is brushless with AVR voltage regulator and water-cooled. With its small size, the 28EFKOZD marine generator is perfect for installation on boats of various sizes.

Technical Data:
Phase Type: Single Phase
Single Phase Continuous Power at 230 V: 28 KW
Single Phase Continuous Power at 240 V: 23 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 V or 240 V
Motor: Kohler
Motor RPM: 1500 rpm
Length: 1303 mm
Width: 661 mm
Height: 778 mm
Dry weight: 591 Kg

Engine features of the KOHLER 28EFKOZD

- Diesel
- Environmental Protection Agency (EPA) certified for compliance with Tier III marine auxiliary standards (60 Hz model only)
- Four cylinders
- Four cycles
- Closed cooling system
- Heat exchanger
- Electric fuel lift pump
- Single lift eyelet
- Low oil pressure shutdown
- High temperature engine shutdown
- Low seawater pressure shutdown
- Vibromount
- Belt guard
- Disposable oil filter
- Oil drain valve
- Disposable fuel filter

Features of the KOHLER 28EFKOZD

- Brushless rotating field design allows power to be obtained from stationary conductors.
- Windings are vacuum-impregnated with epoxy paint for reliability and long life.
- Rotors are dynamically balanced to minimize vibration.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for Class H insulation.
- Connected directly to the motor, the generator features sealed precision ball bearings with a precision machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
- Mounted on a drip tray.
- Equipped with a four-conductor reconnectable stator.
- Capable of withstanding a line-to-neutral short-circuit current of up to 300% of rated current for up to 2 seconds. (Short circuit performance IEC 60092-301).

If you are looking for marine generators like the KOHLER 28EFKOZD but with different features you can view the entire catalog of marine generators.

Images and technical data are not binding.
