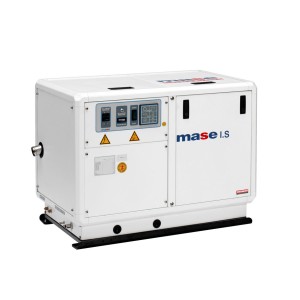

MASE IS 16.8 T MARINE GENERATOR THREE-PHASE 16.8KVA

MASE IS 16.8 T
      MASE IS 16.8 T MARINE GENERATOR THREE-PHASE 16.8KVA
      MASE IS 16.8 T MARINE GENERATOR THREE-PHASE 16.8KVA

      Phase Type: Three Phase
      Maximum Power: 16.8KVA
      Fuel: Diesel
      Voltage: 240 - 480 V
      Frequency: 60 Hz
      Engine: Yanmar 3TNV88, 4 Stroke
      Mechanical Power: 20. 4 Hp
      Number of cylinders: 3
      Displacement: 1642 cc
      RPM controller: Centrifugal, mechanical
      Engine speed: 1800 rpm
      Acoustic power: 51 dBA @ 7 m
      Length: 985 mm
      Width: 585 mm
      Height: 730 mm
      Weight: 344 Kg

      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      MASE IS 16.8 T

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KVA)
      16.8
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      240 - 480 V
      Engine
      Yanmar 3TNV88, 4 stroke
      Engine rpm (rpm)
      1800
      Speed governor
      Centrifugal, mechanical
      Engine capacity (cm³)
      1642
      Number cylinders
      3
      Oil capacity (L)
      5.5
      Cooling
      Air / water (Intercooler W/A)
      Inyección
      Direct
      Alternator
      Synchronous, self-excited
      Poles
      4
      Lubrication
      Forced
      Consumption (L/h)
      4 at 100% of the load
      Acoustic pressure
      51 dB(A) at 7 m
      Length (mm)
      985
      Width (mm)
      585
      Height (mm)
      730
      Dry weight (Kg)
      344
      Inverter
      No
      AVR
      Yes
      Compound
      No
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      AVR
      Engine manufacturer
      Yanmar

      Specific References

      MASE IS 16.8 T THREE-PHASE MARINE GENERATOR 16.8KVA

      MASE IS16,8T three-phase marine generator with Yanmar 3TNV88 engine with diesel power supply at 1800 rpm capable of delivering a power of 16.8KVA.

      The MASE IS16,8T marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS16,8T marine generator is built with a diesel-powered Yanmar engine and synchronous, self-excited alternator with air/water cooling. With its small size, it is also suitable on small boats.

      The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS16.8T.

      The soundproof cabin of the MASE IS16,8T is made of an aluminum profile structure that supports panels in marine aluminum painted type 5754 extremely light and very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

      Technical Features:
      Phase Type: Three Phase
      Maximum Power: 16.8KVA
      Fuel: Diesel
      Voltage: 240 - 480 V
      Frequency: 60 Hz
      Motor: Yanmar 3TNV88, 4 Stroke
      Length: 985 mm
      Width: 585 mm
      Height: 730 mm
      Weight: 344 Kg

      If you are looking for another generator like the MASE IS16,8T then you can see the entire catalog of marine generator sets.

      Images and technical data are not binding.
