FISCHER PANDA AGT-DC4000 12V Marine Generator Supersilenced

Name: FISCHER PANDA AGT-DC4000 12V Marine Generator Supersilenced
Brand: FISCHER PANDA
SKU: 0032501
Price: 13024.72 EUR
Availability: InStock

Reference 0032501

Phase Type: Single-phase
Maximum Output: 4000 W
Continuous Output: 3200 kW
Maximum Output: 4 kVA
Continuous Output: 3.2 kVA
Frequency: 50 Hz
Voltage: 12 V
Inverter
Engine rpm: 2400-3000 rpm
Dispacement: 309 cc.
Cooling: Water
Sound pressure: 54 dB(A) at 7 m
Length: 598 mm
Width: 398 mm
Height: 410 mm
Dry weight: 90 Kg

Prezzo

10,676.00 € tax excl.

13,024.72 € tax incl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 0032501

Data sheet

Phase: Single phase
Maximum power single phase (KW): 4
Continuous power single phase (KW): 3.2
Maximum power single phase (KVA): 4
Continuous power single phase (KVA): 3.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 12
Engine: Kubota EA300
Engine rpm (rpm): 2400-3000
Speed governor: Electronic
Engine capacity (cm³): 309
Number cylinders: 1
Oil capacity (L): 1.3
Cooling: Water
Poles: 2
Bore x stroke (mm): 75 x 70
Motor insulation class: H
Length (mm): 598
Width (mm): 398
Height (mm): 410
Dry weight (Kg): 90
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: Inverter
Engine manufacturer: Kubota

Specific References

Condition New

MARINE GENERATOR FISCHER PANDA AGT-DC4000 12V SUPERSILENCED 3,2 KW

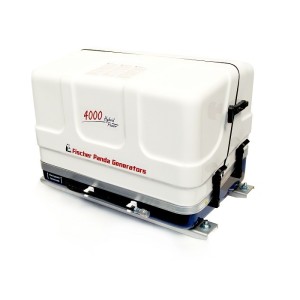

Generator for boats Fischer Panda AGT-DC4000 12V single-phase 3.2 KW, also called marine generator, with variable speed motor from 2400 rpm to 3000 rpm. The Fischer Panda AGT-DC4000 12V marine generator is designed with a soundproof cabin that makes it super-silent. The Fischer Panda AGT-DC4000 12V marine generator is built with a Kubota diesel-powered engine. The Fischer Panda AGT-DC4000 12V marine generator alternator has 2 poles and H insulation class. With its compact size and low weight, the Fischer Panda AGT-DC4000 12V marine generator is also suitable for installation on small boats.

Main features of Fischer Panda AGT-DC4000:
Phase type: Single-phase
Maximum output Single-phase: 4 KW
Single-phase continuous output: 3.2 KW
Frequency: 50 Hz
Voltage: 12 V
Inverter
Engine revs: 2400-3000 rpm
Displacement: 309
Cooling: Water
Sound pressure level: 54 dB(A) at 7 m
Length: 598 mm
Width: 398 mm
Height: 410 mm
Dry weight: 90 Kg

Hybrid AC energy - indirect AC
Battery charging generators produce direct current and generally function as part of a hybrid power supply system. Battery levels are monitored and charged automatically by the generator. An inverter supplies power to the on-board 230 V consumers. These systems are ideal for typically variable power requirements that do not require a generator to operate constantly during the day.

Ideal for systems where the generator runs for short intervals to charge the power bank and support peak power periods.
In this version, the charging voltage is controlled by an integrated AGT controller that regulates engine revs.
The engine revs can therefore be variable to achieve the required performance. However, when installing this version, the batteries must be positioned close to the generator.

- Designed for DC-AC power systems with battery plus inverter
- The generator is required to operate intermittently only
- Optimum use of the generator
- High degree of efficiency
- Compact design
- Reduced fuel consumption

If you are looking for a marine generator set like the Fischer Panda AGT-DC4000 12V then you can browse the entire catalogue of marine generators.

Images and technical data are not binding.

""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
