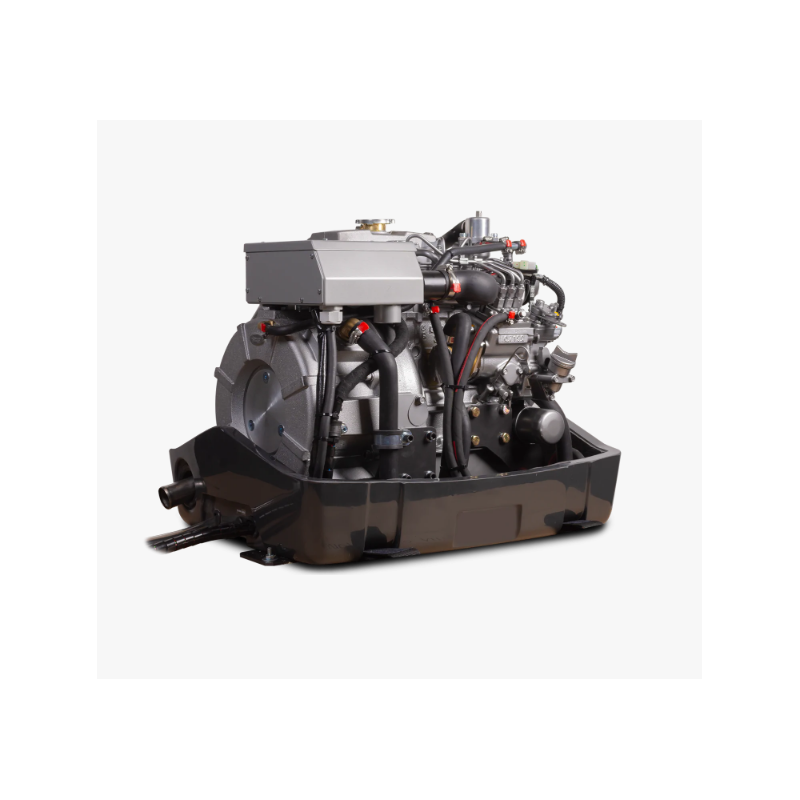

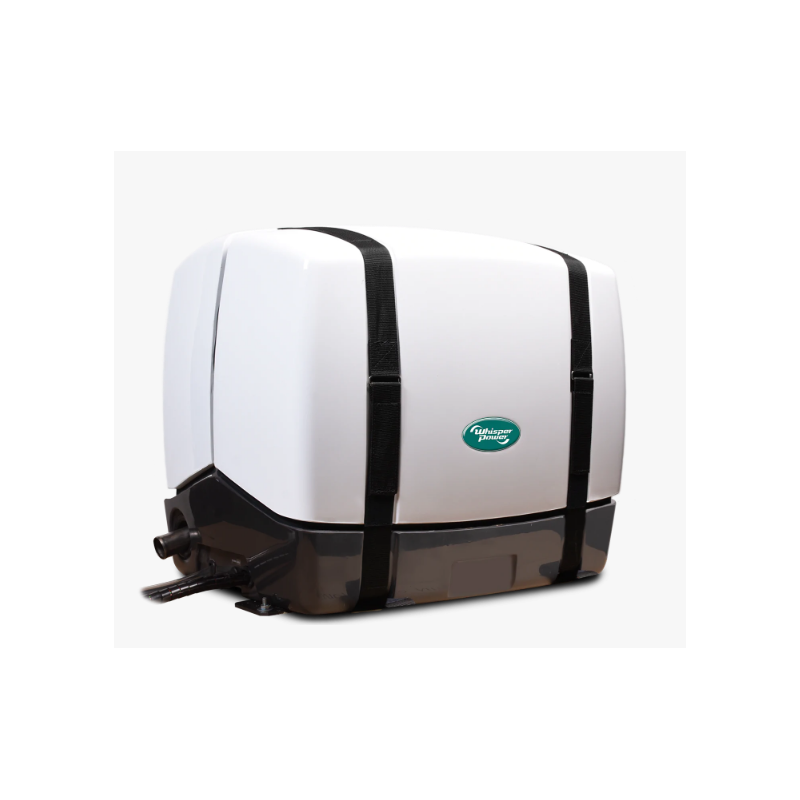

    WHISPER MARINE GENERATOR Piccolo GV3
    WHISPER MARINE GENERATOR Piccolo GV3
    WHISPER MARINE GENERATOR Piccolo GV3
    WHISPER MARINE GENERATOR Piccolo GV3

    WHISPER MARINE GENERATOR Piccolo GV3

    Continuous power: 8.6 kW at 24/48 VDC
    Number of DC PowerCubes: 2
    Nominal voltage/frequency: 24/48 VDC
    RPM range: 1500 ... 2500 rpm, adjustable
    Diesel engine:
    Model: Kubota D722
    Cylinder volume: 719 cc (three cylinders)
    Fuel consumption (empty - full load): 1.2-3 l/hour
    Length × width × height (cabinet): 740 × 550 × 622 mm
    Length × width × depth (DC PowerCube): 575 × 221 × 316 mm
    Dry weight (cabinet + DC PowerCube): 175 kg + DC PowerCube

    CONTROL PANEL Standard start / stop panel - DDC Optional 2nd start/stop panel, Touch panel 7 inch

    List price
    14,504.58 € tax incl.
    11,889.00 € tax excl.
    Discounted Price
    14,504.58 € tax incl.
    11,889.00 € tax excl.
    Shipping Free to Italy buy it today.
    Calculate Shipping Cost
    Custom Quote
    Product: WHISPER MARINE GENERATOR Piccolo GV3

    PERSONAL DATA


    Ask a question
    Product: WHISPER MARINE GENERATOR Piccolo GV3
    Offer on letterhead
    Product: WHISPER MARINE GENERATOR Piccolo GV3
    WHISPER POWER
    49001305

    Data sheet

    Continuous power single phase (KW)
    8
    Fuel
    Diesel
    Voltage (V)
    48
    Engine
    Kubota D722
    Engine rpm (rpm)
    1500 ... 2500 rpm, adjustable
    Engine capacity (cm³)
    719
    Number cylinders
    3
    Length (mm)
    740
    Width (mm)
    550
    Height (mm)
    622
    Dry weight (Kg)
    175
    Silenced
    Yes
    Product type
    Generator
    Engine manufacturer
    Kubota

    Specific References

    New

    WHISPER MARINE GENERATOR Piccolo GV 3

    The Piccolo GV 3 is not just a marine generator, it is a concentration of cutting-edge technology packed into a compact and silent design.

    Imagine sailing in silence, lulled by the roar of the waves, without the annoying rumble of a conventional generator.

    With the Piccolo GV 3 on board, the energy you need is always available, without sacrificing your comfort or your surroundings.

    Main features WHISPER MARINE GENERATOR Piccolo GV 3:

    Quiet, compact and lightweight: Ideal for smaller boats where space is an issue.

    Water-cooled indirect diesel engine: Reliable, efficient and durable.

    Adjustable speed: Allows you to optimise power delivery as required.

    Unique Genverter Technology: Offers the flexibility of combining DC PowerCube and AC PowerCube inverters for efficient energy management.

    Power and Performance:

    Continuous power: 8.6 kW at 24/48 VDC

    Number of DC PowerCubes: 2

    Rated voltage/frequency: 24/48 VDC

    RPM range: 1500 ... 2500 rpm, adjustable

    Diesel engine:

    Model: Kubota D722

    Cylinder volume: 719 cc (three cylinders)

    Fuel consumption (empty - full load): 1.2-3 l/hour

    Dimensions and weight:

    Length × width × height (cabinet): 740 × 550 × 622 mm

    Length × width × depth (DC PowerCube): 575 × 221 × 316 mm

    Dry weight (cabinet + DC PowerCube): 175 kg + DC PowerCube

    CONTROL PANEL Standard start / stop panel - DDC Optional 2nd start/stop panel, Touch panel 7 inch

    Advantages:

    High energy efficiency

    Quiet operation

    Easy installation and maintenance

    The Piccolo GV 3 is not just a generator, it is an investment in your peace of mind and comfort.

    If you are looking for a generator set or generator like the WHISPER PICCOLO10 MARINE then you can browse the entire catalogue of marine generators suitable for various types of vessels.

    Images and technical data are not binding.
