MASE VS 12.8 SINGLE PHASE MARINE GENERATOR 12KW EPA

Name: MASE VS 12.8 SINGLE PHASE MARINE GENERATOR 12KW EPA
Brand: MASE
SKU: VS 12.8
Price: 28426 EUR
Availability: InStock

Reference VS 12.8

Phase Type: Single Phase
Power continuous use: 12 KW
Fuel: Diesel
Voltage: 230 V / 240 V
Frequency: 50/60 Hz
Engine: YANMAR 3TNV74F
Mechanical power: 18,4 Hp
Number of cylinders: 3
Displacement: 993 cc
Emissions regulation: EPA
Speed governor: Electric with actuator
Engine rpm: 2100 ÷ 3150 rpm
Acoustic power: 55 dBA @ 7 m
Length: 800 mm
Width: 514 mm
Height: 587 mm
Weight: 195 Kg

Prezzo

23,300.00 € tax excl.

28,426.00 € tax incl.

Shipping from 97.60 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference VS 12.8

Data sheet

Phase: Single phase
Continuous power single phase (KW): 12
Fuel: Diesel
Frequency (Hz): 50 / 60
Voltage (V): 230 / 240
Engine: YANMAR 3TNV74F
Engine rpm (rpm): 2100 ÷ 3150
Speed governor: Electronic
Engine capacity (cm³): 993
Number cylinders: 3
Cooling: Air / water (Intercooler W/A)
Inyección: Indirect
Alternator: Permanent magnets
Lubrication: Forced
Acoustic pressure: 55 dB(A) at 7 m
Length (mm): 800
Width (mm): 514
Height (mm): 587
Dry weight (Kg): 195
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: No
Engine manufacturer: Kubota

Specific References

Condition New

MASE VS12,8 SINGLE-PHASE MARINE GENERATOR 12KW

Generator marine MASE VS12,8 equipped with a YANMAR 3TNV74F engine with Diesel power supply and variable speed regulation, capable of delivering a power of 12KW.

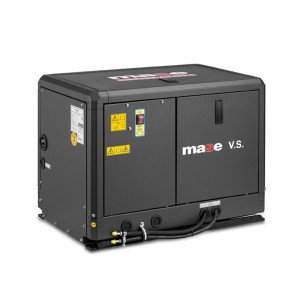

The MASE VS12,8 marine generator is designed with a soundproof cabin that makes it supersilenced. The marine generator is built with Kubota diesel-powered engine and permanent magnet alternator with air/water cooling. With its small size, it is also suitable on small boats.

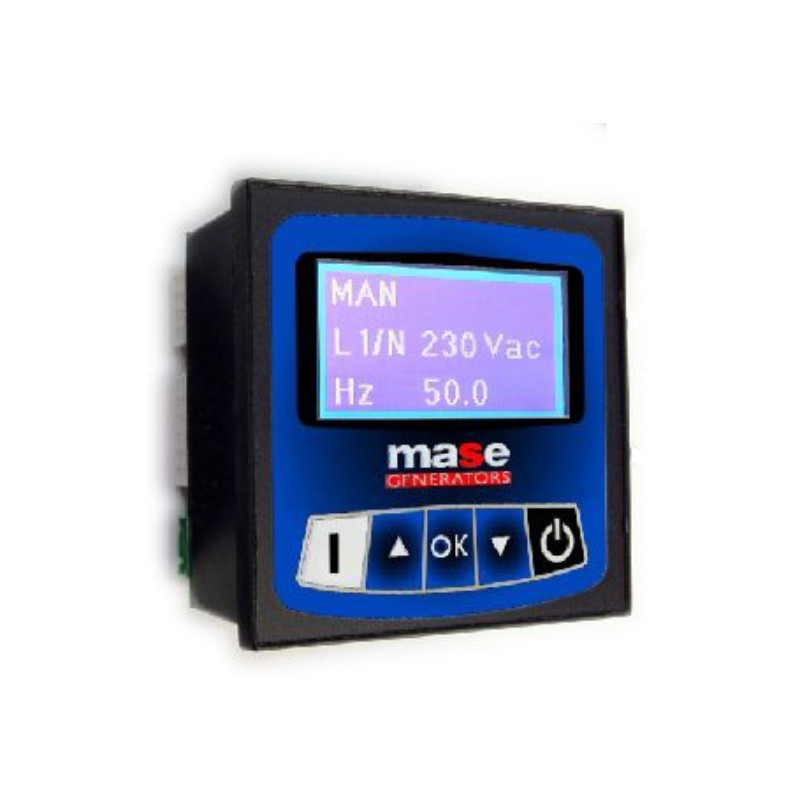

The MASE VS12,8 CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. MASTER CBU 93x93mm (3.66x3.66 in) very compact module, with multiple functions for complete monitoring of the marine generator MASE VS12,8:

- ON/OFF/START/STOP/MENU controls.
- Digital hour meter, Output voltage, Group battery voltage, External battery pack voltage, Frequency, Maintenance interval, Last 10 alarms list with time.
- 13 different alarm icons can be displayed.
- 485 Mod-Bus connector to monitor the group from the main control panel of the boat.

The sound-proof cabin of the MASE generator has been realized with painted marine aluminum panels, combining an innovative design with a very high resistance to external agents. Thanks to its structure, a low weight and an excellent accessibility to the internal compartment are guaranteed, making maintenance operations easy, even with installations carried out in narrow spaces.

TECHNICAL FEATURES MARINE GENERATOR MASE VS12,8

If you are looking for another generator like the MASE then you can browse the entire catalog of marine generators .

Images and technical data are not binding.
