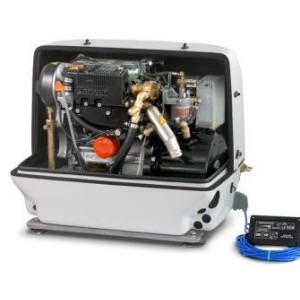

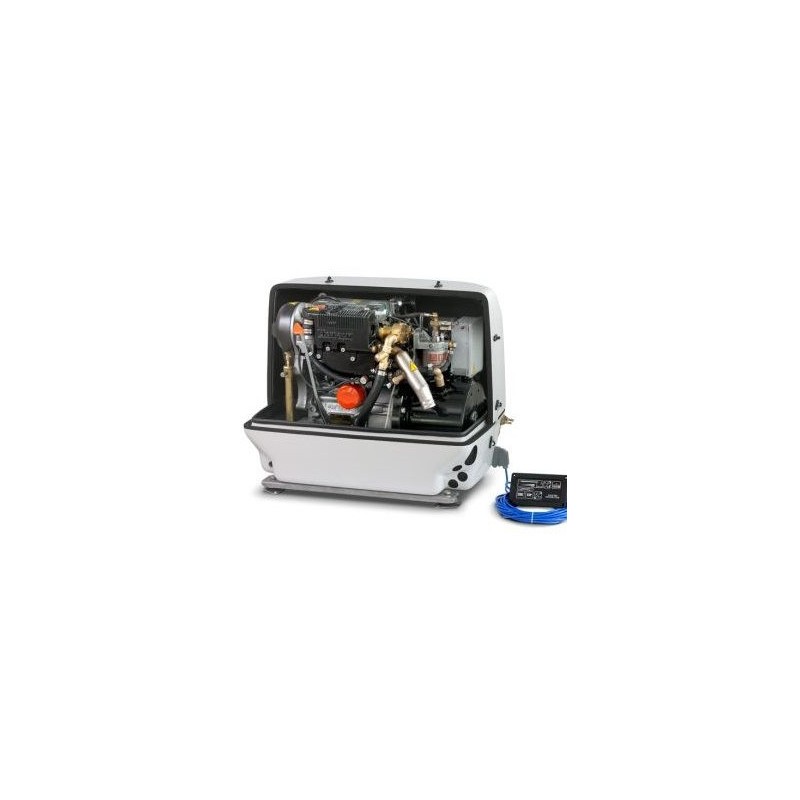

PAGURO9000 VTE 60 Hz super-silenced 10 KVA marine generator set

PAGURO9000 VTE 60 Hz super-silent 10 KVA marine generator set, with Lombardini diesel-powered 3000 rpm engine and water-cooled with stainless steel water/air heat exchanger.
All parts in contact with seawater are made of 316 L stainless steel.
Thanks to the water-cooling and dual anti-vibration system, vibrations are reduced to a minimum, making the PAGURO9000 60 Hz supersilenced and among the lowest noise-emitting marine generators in its class.
The compact and space-saving PAGURO9000 60 Hz marine generator is suitable for use on small boats, ready to give you all the power you need in complete peace of mind.

The Paguro9000 remote control consists of:
- Remote control with LCD display.
- Counter, load indicator, engine frequency/speed.
- Automatic shutdown for low oil pressure and/or over-temperature.
- Quick connector and 15 metres of cable.
- Automatic start.

Features Marine Paguro9000:
Fuel: Diesel
Engine revs (rpm): 3600
Phase type: Single-phase
Single-phase continuous power (KVA): 10
Frequency (Hz): 60
Voltage (V): 115
Engine: Lombardini LDW 702
Starter: Electric
Silenced: Supersilenced 52 dB(A)
Cooling: Fresh water with heat exchanger
Dry weight (kg): 170
Length (mm): 720
Width (mm): 460
Height (mm): 620

Engine
The Lombardini engine of the PAGURO9000 60 Hz super-silenced 10 KVA diesel-powered marine generator makes it efficient and reliable. Designed with stainless steel water/air heat exchanger.

Alternator
The alternator is synchronous, brushless and with class H insulation. The capacitor regulation makes the PAGURO9000 60 Hz super-silent 10 KVA Marine Generator excellent for powering sensitive electronic devices that fear voltage and current fluctuations.
It is also water-cooled via an AISI 316 L stainless steel heat exchanger.

Soundproofing capsule and double anti-vibration system
The Paguro9000 capsule is made of reinforced fibreglass with composite layering, and the high-density soundproofing material coating makes this marine generator one of the most silent compared to its competitors.
The capsule allows installation even in narrow spaces, thanks to its composition: two upper parts and one lower part.
Finally, the dual anti-vibration system, internal with 4 soft mounts and external with 4 semi-elastic mounts, makes the PAGURO9000 stable even in less calm waters and silenced, so you can enjoy sailing without any additional worries.

In addition to the PAGURO9000 60 Hz super-silenced 10 KVA generator you can find the complete range: click HERE. This range of marine generators from VTE are the market benchmark for the optimal ratio of performance, quietness and small size.

Non-binding images and technical data.
