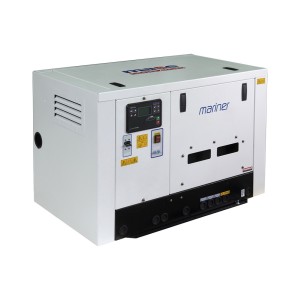

MASE MARINER 1900 S SINGLE PHASE SILENCED MARINE GENERATOR 18.4KW

Reference MARINER 1900 S

Phase Type: Single Phase
Maximum Power: 18.4 KW
Continuous Use Power: 16.7 Kw
Fuel: Diesel
Voltage: 120 - 240 V
Frequency: 60 Hz
Motor: YANMAR 4TNV88, 4 Stroke
Mechanical Power: 29. 4 Hp
Number of cylinders: 4
Displacement: 2190 cc
Engine speed: 1800 rpm
Fuel consumption: 6. 2 l/h
Sound pressure: 54 dB(A) @ 7 m
Alternator: Synchronous Brushless
Voltage regulator: Yes
Length: 1135 mm
Width: 631 mm
Height: 694 mm
Weight: 400 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MARINER 1900 S

Data sheet

Phase: Single phase
Maximum power single phase (KW): 18.4
Continuous power single phase (KW): 16.7
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 120 / 240
Engine: Yanmar 4TNV88, 4 stroke
Engine rpm (rpm): 1800
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 2190
Number cylinders: 4
Oil capacity (L): 7.4
Cooling: Air
Inyección: Direct
Alternator: Synchronous, self-excited
Poles: 4
Compression ratio: 19.1 : 1
Lubrication: Forced
Consumption (L/h): 6.2 at 100% of the load
Acoustic pressure: 54 dB(A)
Length (mm): 1135
Width (mm): 631
Height (mm): 694
Dry weight (Kg): 400
Inverter: No
AVR: Yes
Compound: No
Silenced: Yes
Super silenced: Yes

Specific References

MASE MARINER 1900 S SILENCED SINGLE-PHASE MARINE GENERATOR 18.4KW

MASE MARINER1900S single phase silenced marine generator is equipped with a YANMAR 4TNV88 diesel engine capable of delivering a maximum power of 18.4 KW at 1800 rpm.

The MASE MARINER1900S is built with and synchronous alternator, self-excited with air cooling, it is extremely compact and powerful, suitable even on small boats. The alternator is complete with a voltage regulator that ensures the stability of the voltage delivered by the generator, delivering current like at home.

The MASE MARINER1900S allows an easy access for the maintenance of the feeding and lubrication systems, of the sea water pump, of the air filter, of the oil filter and of the fuel. Moreover it is equipped with safety systems of auto stop for low oil pressure and for high temperature engine or exhaust gas.

The MASE MARINER1900S is equipped with a soundproof cabin that makes it super silent, with a sound emission of 54dB(A) at a distance of 7 m. The soundproof cabin in painted aluminum is extremely light and of very high resistance to external agents.

TECHNICAL FEATURES MASE MARINER1900S
