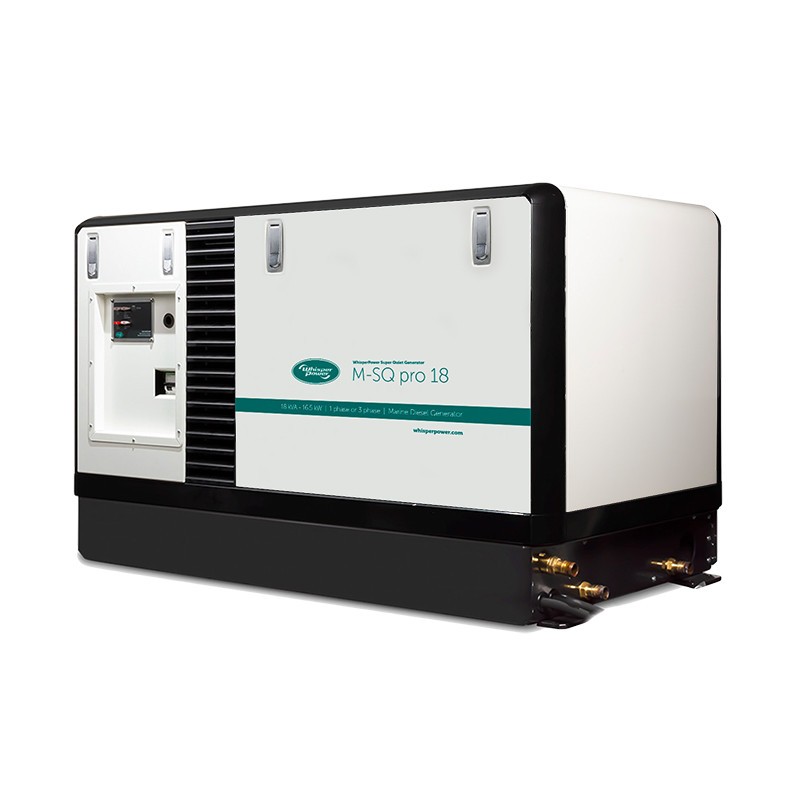

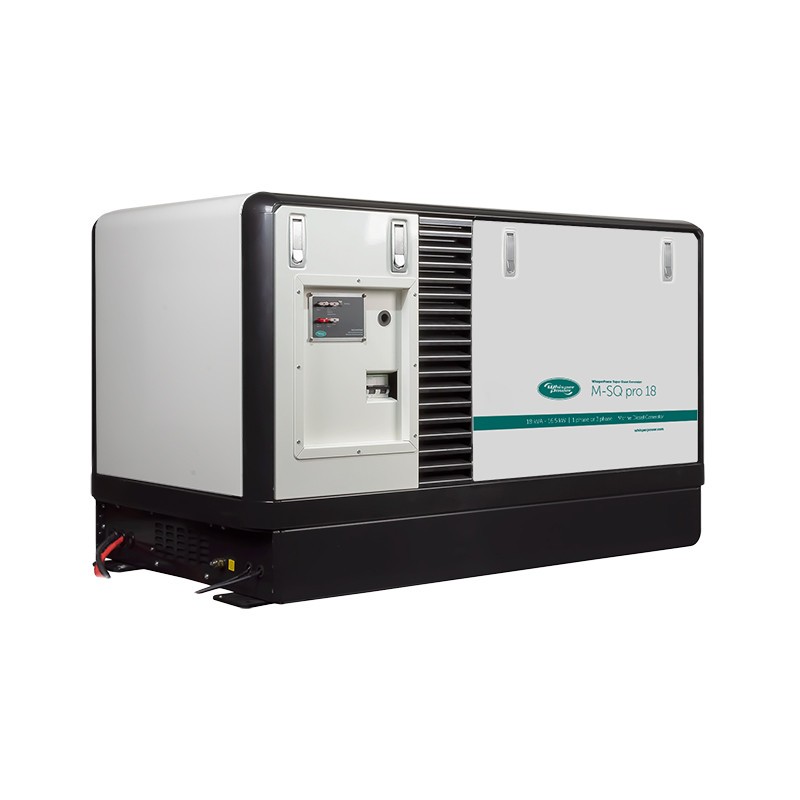

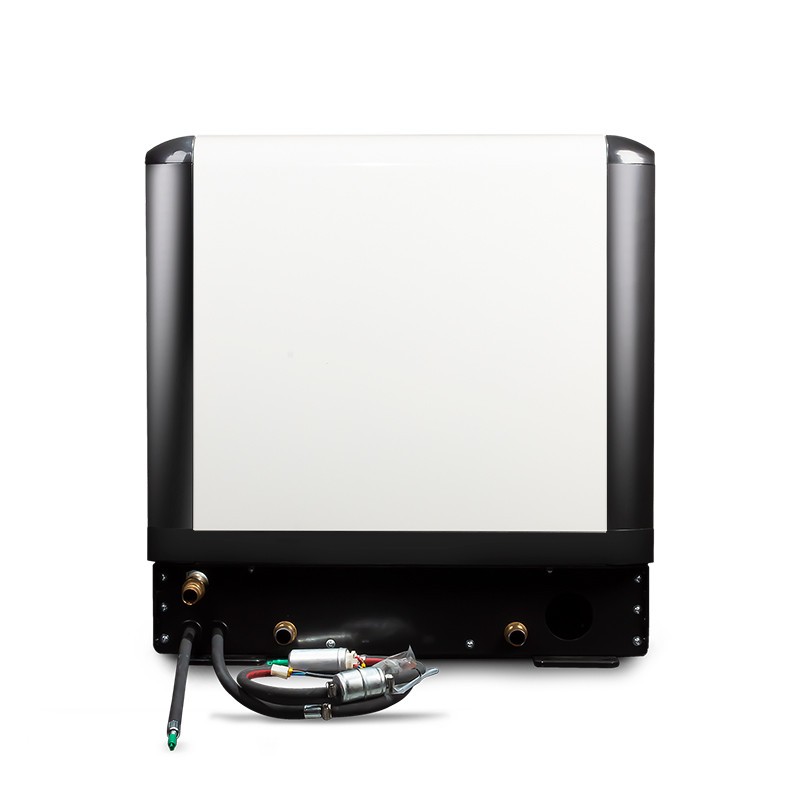

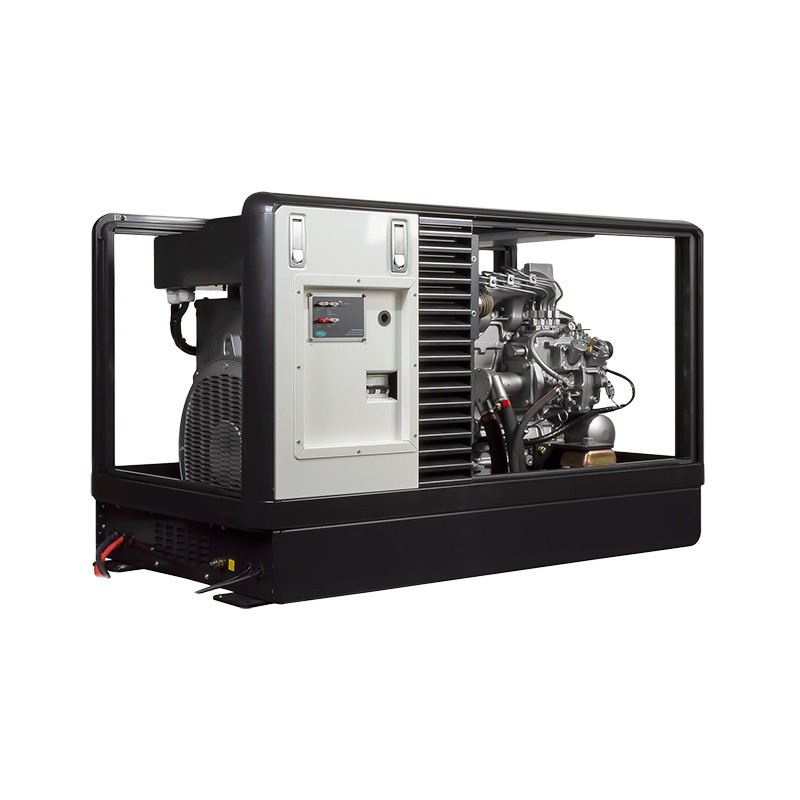

WHISPER M-SQ PRO 18 MARINE GENERATOR 18KVA SINGLE-PHASE / THREE-PHASE AVR

WHISPER M-SQ PRO18 MARINE GENERATOR 18KVA SINGLE/ THREE-PHASE AVR

WHISPER M-SQ PRO18 Single/three-phase marine generator with Kubota V2203 MBG diesel engine delivering 18KVA power, complete with AVR voltage regulator.

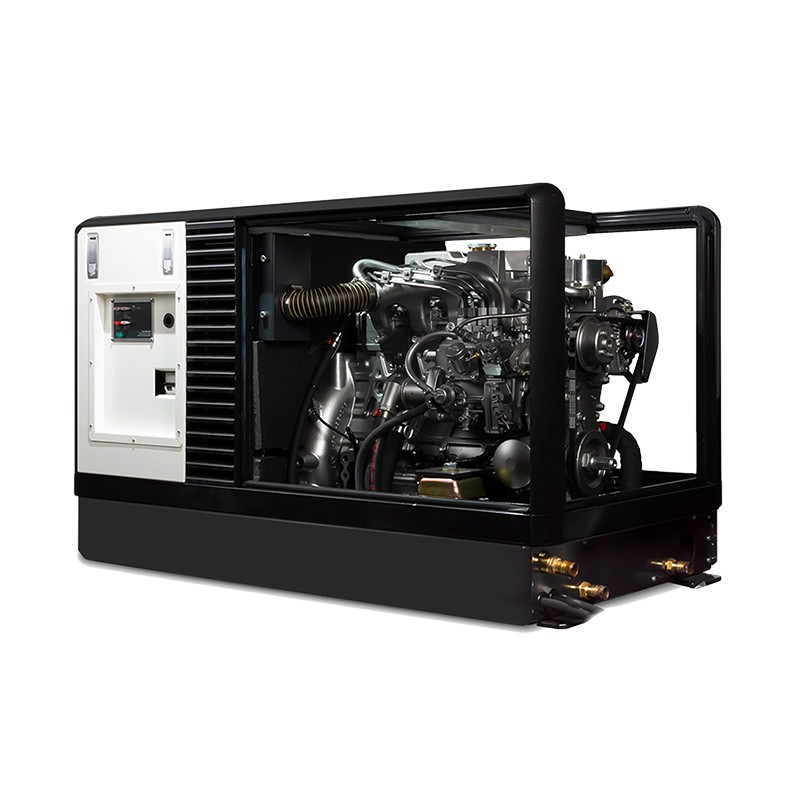

The WHISPER M-SQ PRO18 marine generator is equipped as standard with a robust acoustic capsule with anti-corrosion metal plating and insulating material for optimal sound reduction. The hearing protector features easy access to all sides of the marine generator and offers access to all maintenance-related components from one side only.

Thanks to the electrical stabilizer of AVR technology that works at very low distortion, WHISPER M-SQ PRO18 marine delivers constant current loads without peaks that could damage electrical and electronic devices. A further advantage of the inverter is that it works with variable motor revolutions, based on the need for the current to be supplied, optimizing fuel consumption, gas emissions and wear of the mechanical parts in the best possible way.

The Whisper M-SQ Pro18 is also designed to be easy to use and maintain. It has a range of accessibility features to simplify access and maintenance, and also features an overheating protection system and an automatic shutdown system in case of emergency, in order to ensure maximum safety.

An important feature of the WHISPER M-SQ18 range is the 7 inch color touch screen control which will be linked with WhisperCare. This allows for complete control of the system. A perfect solution for instant and/or historical information with an attractive display.

VOLTAGE REGULATOR

WHISPER M-SQ18 is equipped with AVR which, mounted on an alternator, allows a generator set or current generator to stabilize the output power and does not damage the connected sensitive electronic devices. In the modern market, inverters have made a huge step forward in terms of technology and performance; for this reason the best brands of generator sets and alternators in the world are moving along this line of thought.

DeepSea Control Features (Optional)

• Group parallel functionality included (ask for more details)
• Provides secure and easy offsite monitoring (optional)
• Allows you to quickly resolve fault conditions and provide instant system information to aid in preventive maintenance
• Graphic displays showing, graphs, meters, power display, graphs and engine status information
• The information is displayed clearly and in a universal format for all users
• Language of your choice

Technical characteristics WHISPER M-SQ PRO18 marine generator:

Phase type: Single-phase / Three-phase
Maximum power: 18.5 KVA / 16.5 KW
Continuous power: 18 KVA / 16 KW
Fuel: Diesel
Voltage: 230 / 400 V
Frequency: 50 Hz (60 Hz)

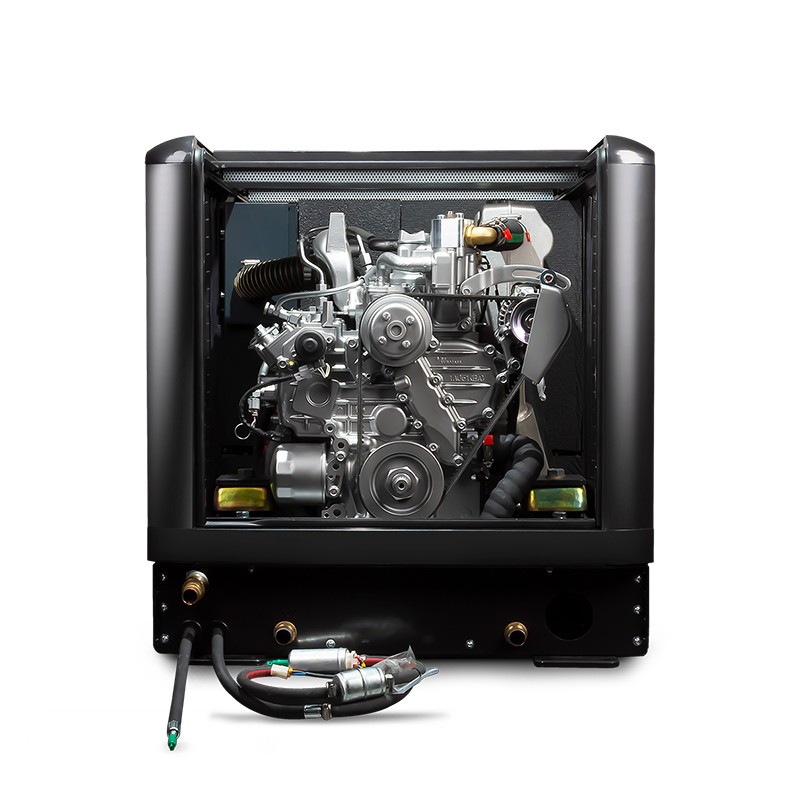

Engine: Kubota V2203 M BG
Emissions standard: Not Emissions
Number of cylinders: 4
Engine speed: 1500 rpm
Acoustic power: 55 dBA
Voltage regulator: AVR
Length: 1220 mm
Depth: 719 mm
Height: 754 mm
Net weight: 495 Kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to WHISPER vehicle generators or other specialized brands.

Non-binding images and technical data.
