MASE MARINER2400 SINGLE-PHASE MARINE GENERATOR 26KW

MASE MARINER2400 single phase marine generator is equipped with a YANMAR 4TNV98 diesel engine capable of delivering a maximum power of 26 KW complete with AVR voltage regulator.

The MASE MARINER2400 marine generator is built with and air-cooled, self-excited synchronous alternator, it is extremely compact and powerful, suitable for small boats as well.

The alternator of the MASE MARINER2400 is synchronous 4-pole, self-regulated, self-excited, brushless, which in conjunction with the powerful YANMAR engine can deliver a maximum power of 26KW. The rotor and the stator are coated with epoxy paint to prevent the attack of atmospheric agents, in addition it is equipped with safety systems of auto stop in case of high temperatures detected on the windings.

The MASE MARINER2400 is built with synchronous alternator, self-excited without brushes with air cooling, it is extremely compact and powerful, suitable also for small boats. The alternator is complete with AVR voltage regulator that ensures the stability of the voltage delivered by the generator, delivering current like the one at home.

TECHNICAL FEATURES MASE MARINER2400

Phase Type: Single Phase
Maximum Power: 26 KW
Continuous Use Power: 24 KW
Fuel: Diesel
Voltage: 115 - 230 V
Frequency: 50 Hz
Alternator: Synchronous, 4-pole Brushless
Voltage Regulator: AVR
Engine: YANMAR 4TNV98, 4 Stroke
Mechanical Power: 47 Hp
Number of Cylinders: 4
Displacement: 3319 cc
RPM Regulator: Mechanical Centrifugal
Engine RPM: 1500 rpm
Fuel Consumption: 7. 6 l/h

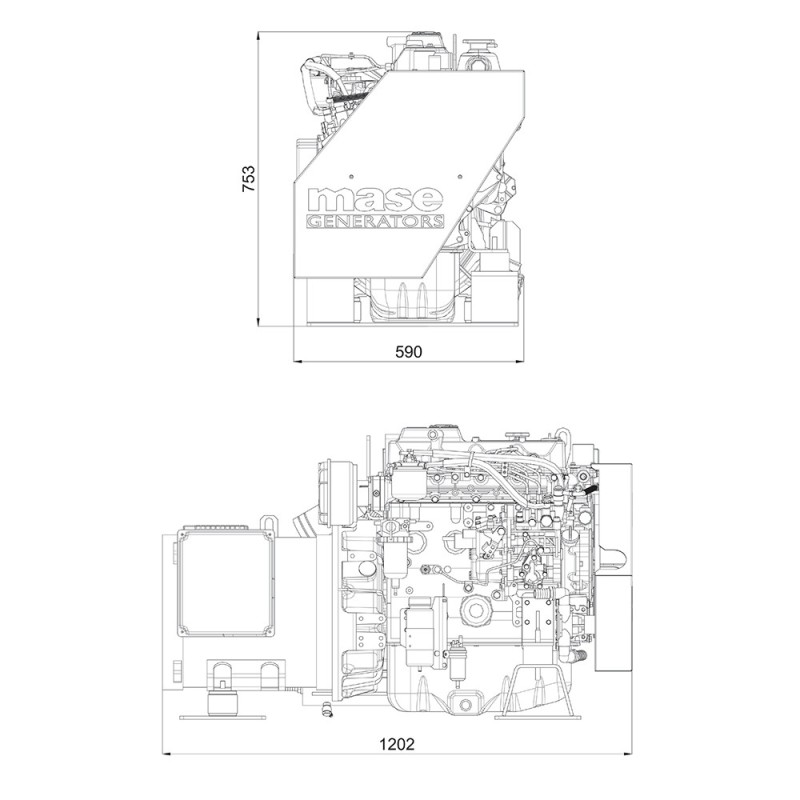

Length: 1202 mm
Width: 590 mm
Height: 753 mm
Weight: 565 Kg

If you are looking for another marine generator then you can browse the entire catalog of marine generators.

Images and technical data are not binding.
