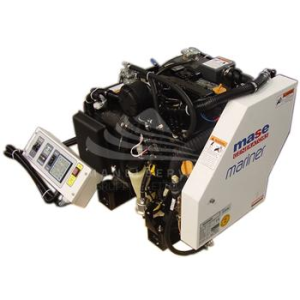

MASE MARINER 1200 SINGLE PHASE MARINE GENERATOR 11.2KW

Name: MASE MARINER 1200 SINGLE PHASE MARINE GENERATOR 11.2KW
Brand: MASE
SKU: MARINER 1200
Price: 22204 EUR
Availability: InStock

Reference MARINER 1200

Phase Type: Single Phase
Maximum Power: 11.2 KW
Continuous Use Power: 10.2 KW
Fuel: Diesel
Voltage: 115 - 230 V
Frequency: 50 Hz
Alternator: Synchronous, 4-pole Brushless
Voltage Regulator: AVR
Motor: YANMAR 3TNV88, 4 Stroke
Mechanical Power: 18. 4 Hp
Number of cylinders: 3
Displacement: 1642 cc
RPM controller: Centrifugal mechanical
Engine speed: 1500 rpm
Fuel consumption: 4 l/h
Length: 875 mm
Width: 570 mm
Height: 664 mm
Weight: 294 Kg

Prezzo

18,200.00 € tax excl.

22,204.00 € tax incl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MARINER 1200

Data sheet

Phase: Single phase
Maximum power single phase (KW): 11.2
Continuous power single phase (KW): 10.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine: Yanmar 3TNV88, 4 stroke
Engine rpm (rpm): 1500
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 1642
Number cylinders: 3
Oil capacity (L): 6.7
Cooling: Air
Inyección: Indirect
Alternator: Synchronous, self-excited
Poles: 4
Lubrication: Forced
Consumption (L/h): 4 at 100% of the load
Length (mm): 875
Width (mm): 570
Height (mm): 664
Dry weight (Kg): 294
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

Condition New

MASE MARINER 1200 SINGLE PHASE MARINE GENERATOR 11.2KW

MASE MARINER1200 single phase marine generator is equipped with a YANMAR 3TNV88 diesel engine capable of delivering a maximum power of 11.2KW at 1500 rpm complete with AVR voltage regulator.

The alternator of the MASE MARINER1200is synchronous 4-pole, self-regulated, self-excited, brushless, which in conjunction with the powerful YANMAR engine can deliver a maximum power of 11.2 kW. The rotor and the stator are coated with epoxy paint to prevent the attack of atmospheric agents, in addition it is equipped with safety systems of auto stop in case of high temperatures detected on the windings.

The CBU control module of the MASE MARINER1200 has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; degree of protection IP54. Very compact, 86x124mm and equipped with shielded cable 10mts, the CBU module has multiple functions for a complete monitoring of the marine generator MASE MARINER1200:

- ON/OFF/START/STOP/MENU controls.
- Digital hour meter, Output voltage, Group batter, External battery pack, Frequency, Maintenance interval, List of last 10 alarms with time.
- 13 different alarm icons can be displayed.
- 485 Mod-Bus connector to monitor the group from the main control panel of the boat.
