MASE MARINER 1460 K SINGLE PHASE MARINE GENERATOR 14.6KW

Reference MARINER 1460 K

Phase Type: Single Phase
Maximum Power: 14.6 KW
Fuel: Diesel
Voltage: 120 - 240 V
Frequency: 60 Hz
Alternator: Synchronous, 4 Poles Brushless
Voltage Regulator: AVR
Engine: KUBOTA D1703, 4 Stroke
Mechanical Power: 24. 3 Hp
Number of Cylinders: 3
Displacement: 1500 cc
Rev Regulator: Mechanical Centrifugal
Engine RPM: 1800 rpm
Fuel Consumption: 4.5 l/h
Length: 887 mm
Width: 551 mm
Height: 682 mm
Dry Weight: 340 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MARINER 1460 K

Data sheet

Phase: Single phase
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 120 / 240
Engine: KUBOTA D1703
Engine rpm (rpm): 1800
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 1500
Number cylinders: 3
Inyección: Indirect
Alternator: Synchronous, self-excited
Poles: 4
Lubrication: Forced
Consumption (L/h): 4.5
Length (mm): 887
Width (mm): 551
Height (mm): 682
Dry weight (Kg): 340
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No

Specific References

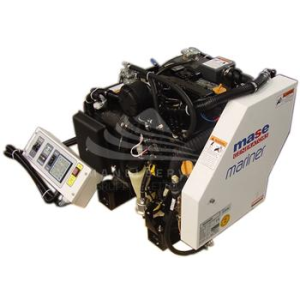

MASE MARINER1460K SINGLE-PHASE MARINE GENERATOR 14.6KW

MASE MARINER1460K single-phase marine generator is equipped with a KUBOTA D1703, diesel powered capable of delivering a maximum power of 14.6 KW at 1800 rpm.

The marine generator MASE MARINER1460K is built with and synchronous alternator, self-excited with air cooling, it is extremely compact and powerful, suitable even on small boats.

The MASE MARINER1460K alternator is a 4-pole synchronous, self-regulated, self-excited, brushless, which in conjunction with the powerful KUBOTA engine can deliver a maximum power of 14.6KW. The rotor and the stator are coated with epoxy paint to prevent the attack of atmospheric agents, in addition it is equipped with safety systems of auto stop in case of high temperatures detected on the windings.

The cooling of the engine of the generator MASE MARINER1460K occurs through the circulation of coolant in a closed circuit. The system is composed of a cupronickel exchanger, inside which there is a heat exchange between coolant and sea water. Two separate pumps provide for the circulation of the coolant and seawater in the generator MASE MARINER1460K .

TECHNICAL FEATURES MASE MARINER1460K

dapibus ultrices. Aenean vulputate massa non dui mattis, vitae posuere nisi semper. In at tellus a dolor interdum fringilla. Vestibulum euismod pharetra pharetra. Mauris lacus massa, fringilla ac porttitor id, accumsan vitae odio. Aliquam semper urna id diam luctus, sit amet pellentesque felis ultrices. Pellentesque sed rhoncus lacus. Integer auctor turpis vitae mauris lacinia faucibus. Donec eget lacus venenatis, dignissim orci eget, vulputate mauris. Maecenas sagittis dignissim mauris, non suscipit metus venenatis quis. Phasellus non

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
