MASE IS 34 T MARINE GENERATOR THREE-PHASE 36.2KVA

002079
      MASE IS 34 T MARINE GENERATOR THREE-PHASE 36.2KVA
      MASE IS 34 T MARINE GENERATOR THREE-PHASE 36.2KVA
      MASE IS 34 T MARINE GENERATOR THREE-PHASE 36.2KVA

      Phase Type: Three Phase
      Continuous Use Power: 33.7KVA
      Maximum Power: 36. 2KVA
      Fuel: Diesel
      Voltage: 400 V
      Frequency: 50 Hz
      Engine: Yanmar 4TNV98, 4 Stroke
      Mechanical Power: 47 Hp
      Number of Cylinders: 4
      Displacement: 3319 cc
      RPM Regulator: Centrifugal, mechanical
      Engine RPM: 1500 rpm
      Acoustic power: 54 dBA @ 7 m

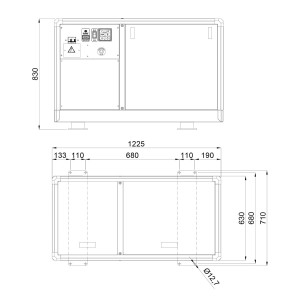

      Length: 1225 mm
      Width: 630 mm
      Height: 830 mm
      Weight: 625 Kg

      Prezzo
      35,000.00 € tax excl.
      42,700.00 € tax incl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      002079

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      29
      Continuous power three phase (KW)
      27
      Maximum power three phase (KVA)
      36.2
      Continuous power three phase (KVA)
      33.7
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine
      Yanmar 3TNV98, 4 stroke
      Engine rpm (rpm)
      1500
      Speed governor
      Centrifugal, mechanical
      Engine capacity (cm³)
      3319
      Number cylinders
      4
      Oil capacity (L)
      10.5
      Cooling
      Air / water (Intercooler W/A)
      Inyección
      Direct
      Alternator
      Synchronous, self-excited
      Poles
      4
      Compression ratio
      18 : 1
      Lubrication
      Forced
      Consumption (L/h)
      10.8 at 100% of the load
      Acoustic pressure
      54 dB(A) at 7 m
      Length (mm)
      1225
      Width (mm)
      630
      Height (mm)
      830
      Dry weight (Kg)
      625
      Inverter
      No
      AVR
      Yes
      Compound
      No
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      AVR
      Engine manufacturer
      Yanmar

      Specific References

      New

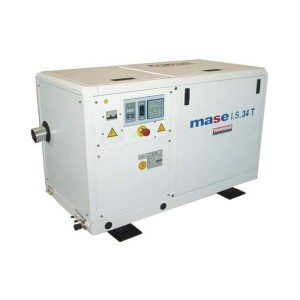

      MASE IS 34 T THREE PHASE MARINE GENERATOR 36.2KVA

      MASE IS34T marine generator Three-phase with Yanmar 4TNV98 engine with diesel power supply at 1500 rpm capable of delivering a power of 36.2KVA.

      The MASE IS34T marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS34T is built with a Yanmar diesel-powered engine and synchronous alternator, self-excited with air/water cooling. With its small size, it is also suitable on small boats.

      The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS34T.

      The soundproof cabin of the MASE IS34T consists of a load-bearing structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

      Technical Features:
      Phase Type: Three Phase
      Continuous Use Power: 33.7KVA
      Maximum Power: 36. 2KVA
      Fuel: Diesel
      Voltage: 400 V
      Frequency: 50 Hz
      Engine: Yanmar 4TNV98, 4 Stroke
      Length: 1225 mm
      Width: 630 mm
      Height: 830 mm
      Weight: 625 Kg

      If you are looking for another generator as the MASE IS34T then you can see the entire catalog of marine generator sets.

      Images and technical data are not binding.

      Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed lobortis urna at mollis dapibus. Nam enim lorem, pellentesque nec dolor nec, laoreet bibendum leo. Nulla eu tortor suscipit, gravida dolor ac, aliquet arcu. Maecenas iaculis ac tortor eu lobortis. Quisque dignissim posuere mauris sed laoreet. Mauris elementum ante finibus nibh bibendum, sodales mollis sem dignissim. Aenean pharetra luctus quam,.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
