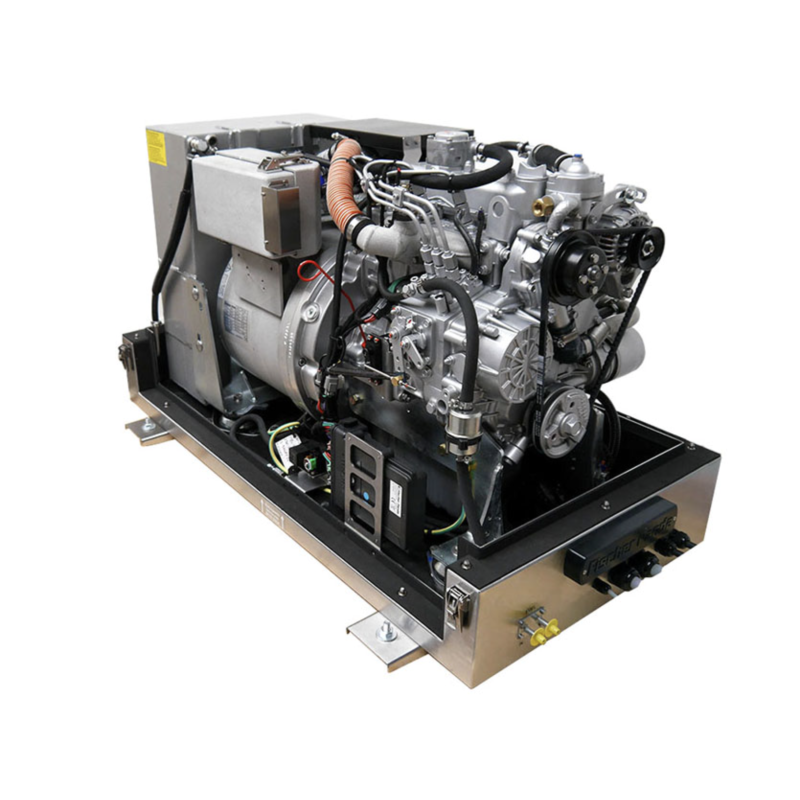

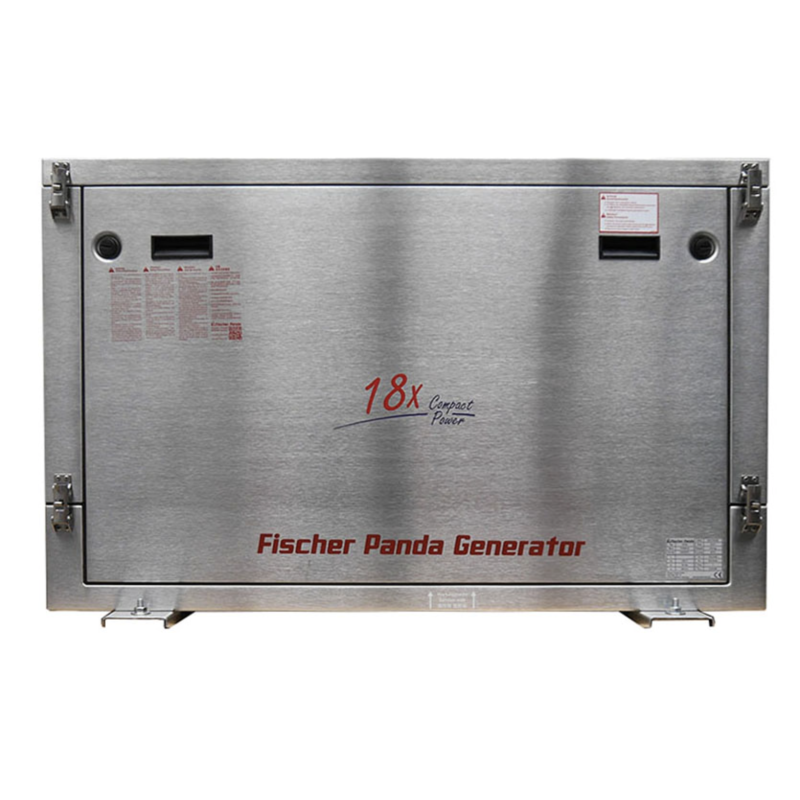

FISCHER PANDA 18x PVMV-N Single-Phase Vehicle Generator 18 kVA 15.3 kW

FISCHER PANDA 18x PVMV-N Single-Phase Vehicle Generator 18 kVA 15.3 kW is a robust and reliable generator set, designed for vehicle applications. Powered by Diesel, it offers a maximum single-phase power of 15.3 KW (corresponding to 18 KVA) and a continuous power of 13.8 KW (16.2 KVA). It operates at a frequency of 50 Hz with a voltage of 230 V.

The heart of this generator is the Kubota D1105 engine, a 3-cylinder unit with a displacement of 1123 cm³, which operates at 3000 rpm. The starter is electric, ensuring ease of use.

Regarding dimensions and weight, the generator has a length of 1100 mm, a width of 540 mm and a height of 680 mm, with a dry weight of 415 kg. The engine insulation class is H, indicating excellent resistance to high temperatures. The engine brand is, as specified, Kubota.

Technical Features:

Phase type: Single phase
Maximum single phase power (KW): 15.3
Continuous single phase power (KW): 13.8
Maximum single phase power (KVA): 18
Continuous single phase power (KVA): 16.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Kubota D1105 engine
Engine rpm (rpm): 3000
Starter: Electric
Displacement (cm³): 1123
Number of cylinders: 3
Length (mm): 1100
Width (mm): 540
Height (mm): 680
Dry weight (kg): 415
Engine insulation class: H
Product type: Generator
Engine brand: Kubota

Are you looking for a marine generator like the FISCHER PANDA 18x but with different features? You can browse the entire catalog HERE.

Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer.
