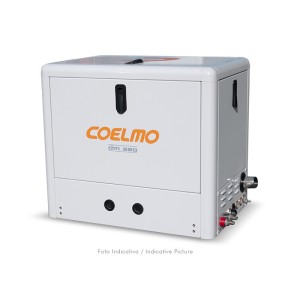

COELMO DM320 MARINE DIESEL GENERATOR 3.2KVA SIlenced

Reference 08DM320-C

Inlet seawater
Drain
Fuel supply and return
12V power supply
Remote connection to EOS panel
415 V output power supply
Main features:
Engine: Yanmar L70 5N
Maximum power 3.2 KvA
Height: 525 mm
Length: 580 mm
Width: 425 mm
Power: 4.9 kWm (6.6 hp) at 3000 rpm
Diesel 4-stroke
Naturally aspirated
Direct injection
Liquid cooling by seawater intercooler
Wet exhaust system
12 VDC electrical system (starter motor, alternator and wiring harness)
COELMO C32 20 compliant with IEC34-1 and BS4999-5000
Power factor: 1.0
Degree of protection: IP23
Overtemperature class: H
Single-phase 230V
Insulation class: H
Liquid Cooling
At 3000rpm
50Hz
Self-excited
Self-regulated via capacitive system
Brushless
Noise:54 dB(A) @ 7 Meters
Fuel consumption:1.30 l/h

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Product Details
Description

Reference 08DM320-C

Data sheet

Phase: Single phase
Maximum power single phase (KW): 3.2
Maximum power single phase (KVA): 3.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Yanmar L70N, 4 stroke
Engine rpm (rpm): 3000
Starting system: Electric
Number cylinders: 1
Cooling: Coolant Liquid
Alternator: Self-excited, self-regulated via capacitive system, no vacuum cleaner
Consumption (L/h): 1.3
Acoustic pressure: 54 dB(A) at 7 m
Length (mm): 580
Width (mm): 425
Height (mm): 525
Silenced: Yes
Weight (Kg): 99

Specific References

Condition New

COELMO DM320 DIESEL MARINE GENERATOR 3.2kVA

COELMO DM320: Power and Quietness for Your Boating Needs.

Looking for a compact, powerful and quiet marine generator set for your boat? The COELMO DM320 is the ideal solution.

Equipped with a 4.9 kWm Yanmar L70 5N engine and a 3.2 kVA COELMO C32 20 alternator, the COELMO DM320 offers high performance and clean, reliable power generation.

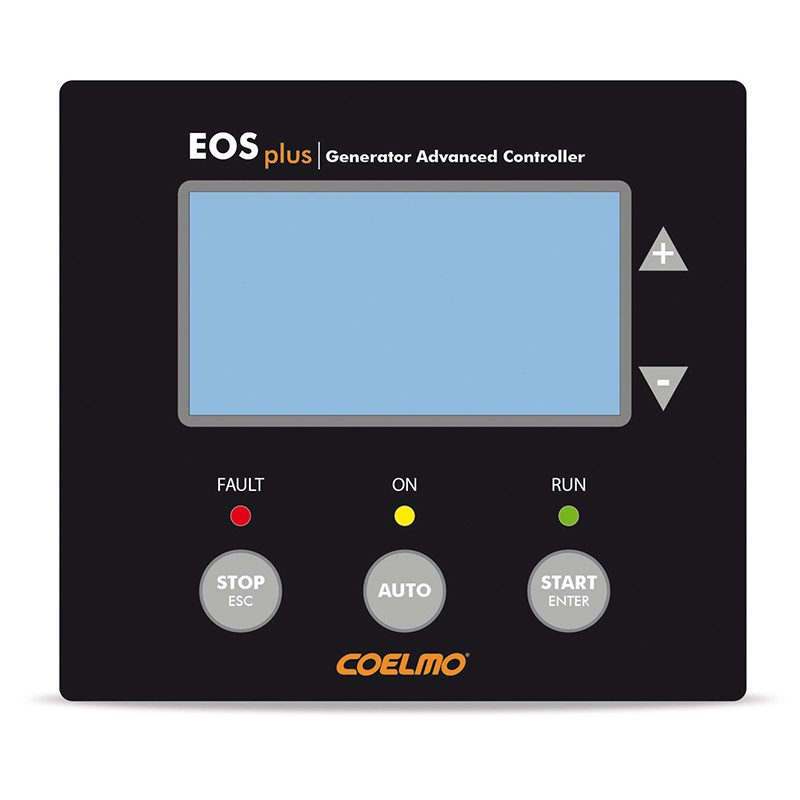

he EOS control panel also provides real-time data on engine operating hours, number of starts, maintenance reminders, and lists of any faults that may occur.

All connection points located outside the cabin are easily accessible including:

Other features:

Pre-painted galvanized iron plate base, made by press-folding, with anti-vibration system

Marine aluminum cabin for soundproof version made of powder-coated ALLOY 5754 H111
Semi-automatic control panel with COELMO EOS Plus
Protection by manual circuit breaker

If you are looking for a product with similar features click HERE.

Images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
