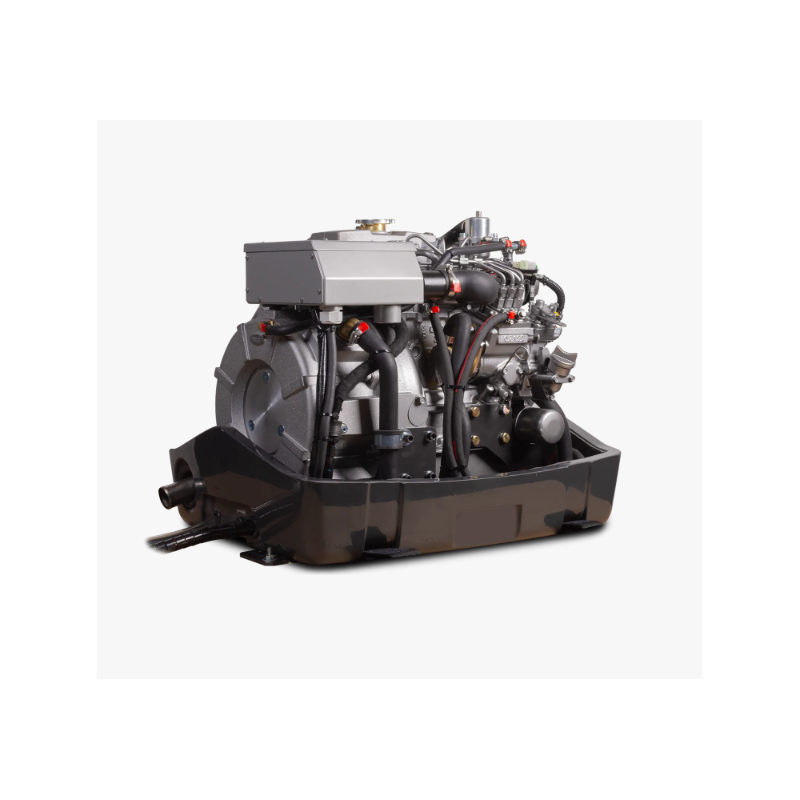

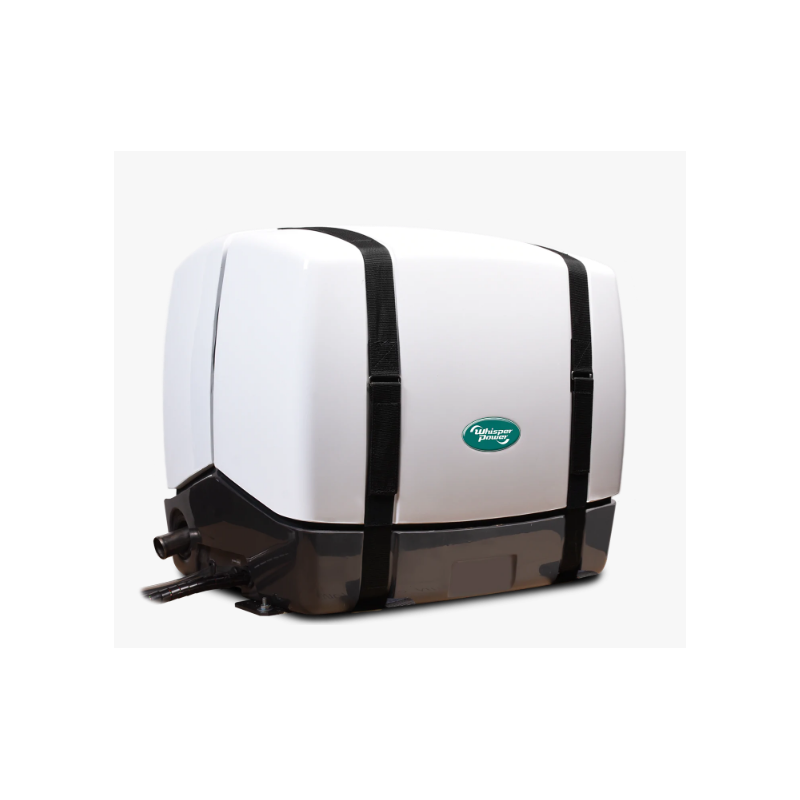

WHISPER Piccolo GV3K Plus MARINE GENERATOR

The WHISPER Piccolo GV/3K Plus MARINE GENERATOR is a concentrate of state-of-the-art technology and engineering, designed to provide clean, quiet power to boats, yachts and ships of all sizes.

With a continuous output of 12 kW and the ability to connect up to 3 DC PowerCubes, the Piccolo GV/3K Plus offers a versatile and scalable solution to meet the needs of any on-board electrical system.

Here are some of the advantages that make the WHISPER GENERATOR MARINE Piccolo GV/3K Plus the ideal choice for your boat:

Three-cylinder Kubota D1105 diesel engine: reliable, efficient and quiet for a relaxed boating experience.

Indirect cooling system: keeps the engine at optimal temperatures, minimising noise.

Permanent magnet alternator (PMA): generates clean power with an exceptionally low noise level.

Efficiency and reliability:

Unique Genverter technology: adjusts engine speed according to load, optimising fuel consumption and efficiency.

Compliant with IMO Tier II emissions regulations: minimises environmental impact.

Automatic start system: ensures immediate and uninterrupted power delivery.

Versatility and flexibility:

Adjustable 12 kW power: adapts power delivery to your specific needs.

Compatible with a wide range of batteries: choose the one you want.

choose the most suitable solution for your electrical system.

Wide range of accessories available: customise the system to suit your needs.

The WHISPER MARINE GENERATOR Piccolo GV/3K Plus is the ideal choice for anyone looking for a reliable, quiet and versatile marine generator.

With its high power, efficiency and ease of installation, the Piccolo GV/3K Plus will provide you with peace of mind while you sail.

For more information, visit the Whisper Power website or contact an authorised dealer.

Power and Performance:

Continuous power (24/48 VDC): 12 kW

Number of DC PowerCubes: 3

Nominal voltage/frequency: 24/48 VDC

Charging characteristics: bulk, absorption, float

Noise level:

Noise level: 54 dB(A) at 7 m, 65 dB(A) at 1 m

Motor Type: Permanent magnet generator (PMA)

Diesel engine: Kubota D1105

Cylinder volume: 1,123 cc (three cylinders)

Bore and stroke: 87 × 78.4 mm

Air consumption: < 1.43 m3/min

Cooling system: indirect

Fuel consumption (no load - full load): 1.5-4 l/hour

Starter battery: 12 VDC / 40 A

Dimensions and Weight:

Length × width × height (cabinet): 875 × 570 × 690 mm

Length × width × depth (DC PowerCube): 575 × 221 × 316 mm

Dry weight (cabinet + DC PowerCube): 210 kg + DC PowerCube

Discharge:

Dry drain / wet drain: Ø 1 inch BSP / Ø 40 mm

Oil level dipstick:

Position: Top and side

Maximum operating angle:

25o in all directions

Control panel:

Standard start/stop panel: DDC

Optional: 2nd start/stop panel, 7-inch touch panel

If you are looking for a generator set or generator like the WHISPER PICCOLO10 MARINE then you can browse the entire catalogue of marine generators suitable for various types of vessels.

Images and technical data are not binding.
