MASE VS6,6 SINGLE-PHASE MARINE GENERATOR 6KW EPA

Generator marine MASE VS6,6 equipped with a Kubota Z482 EPA engine with Diesel power supply and variable speed regulation, capable of delivering a power of 6KW.

The MASE VS6,6 marine generator is designed with a soundproof cabin that makes it supersilenced. The marine generator is built with Kubota diesel-powered engine and permanent magnet alternator with air/water cooling. With its small size, it is also suitable on small boats.

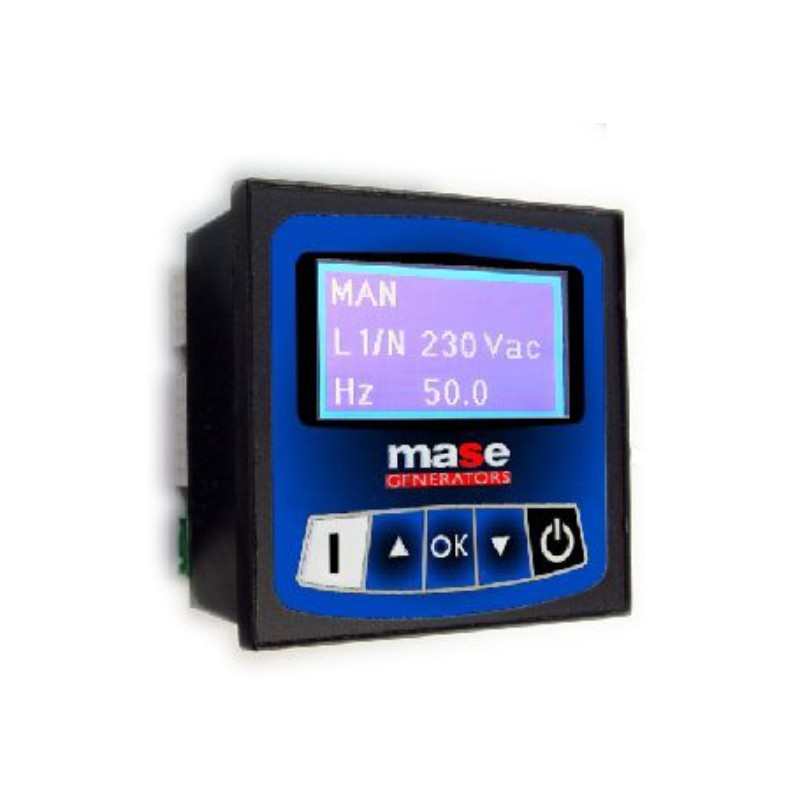

The MASE VS6,6 CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. MASTER CBU 93x93mm (3.66x3.66 in) very compact module, with multiple functions for complete monitoring of the marine generator MASE VS6,6:

- ON/OFF/START/STOP/MENU controls.
- Digital hour meter, Output voltage, Group battery voltage, External battery pack voltage, Frequency, Maintenance interval, Last 10 alarms list with time.
- 13 different alarm icons can be displayed.
- 485 Mod-Bus connector to monitor the group from the main control panel of the boat.

The sound-proof cabin of the MASE generator has been realized with painted marine aluminum panels, combining an innovative design with a very high resistance to external agents. Thanks to its structure, a low weight and an excellent accessibility to the internal compartment are guaranteed, making maintenance operations easy, even with installations carried out in narrow spaces.

TECHNICAL FEATURES MARINE GENERATOR MASE VS6,6

Phase Type: Single Phase
Power continuous use: 6 KW
Fuel: Diesel
Voltage: 230 V / 240 V
Frequency: 50/60 Hz
Engine: Kubota Z482, 4 Strokes
Mechanical power: 11,5 Hp
Displacement: 479 cc
Number of cylinders: 2
Emissions regulation: EPA
Speed governor: Electric with actuator
Engine rpm: 2100 ÷ 3150 rpm
Acoustic power: 54 dBA @ 7 m

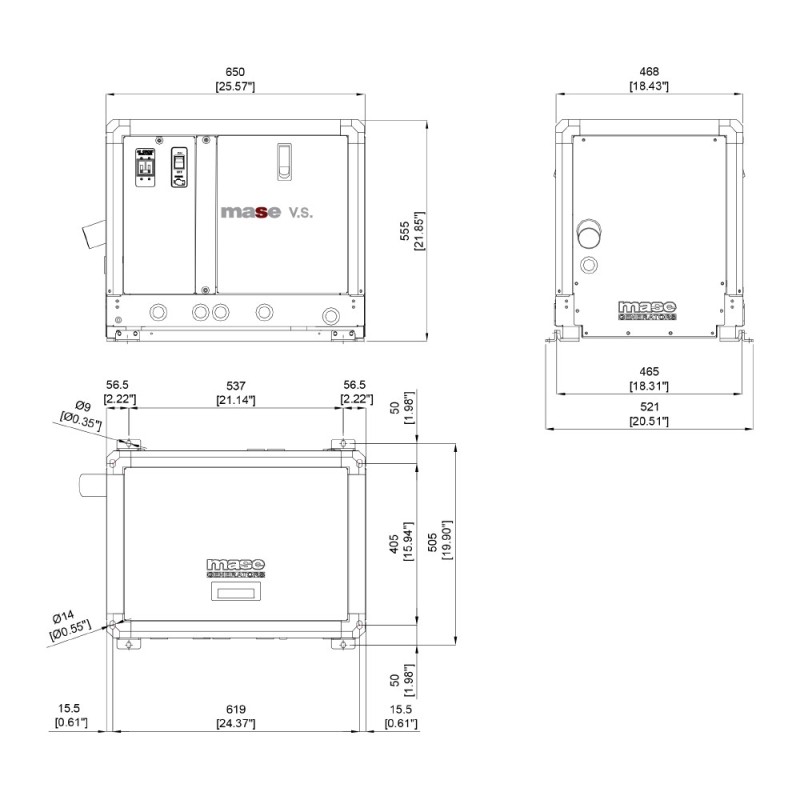

Length: 650 mm
Width: 468 mm
Height: 555 mm
Weight: 165 Kg

If you are looking for another generator like the MASE then you can browse the entire catalog of marine generators.

Images and technical data are not binding.
