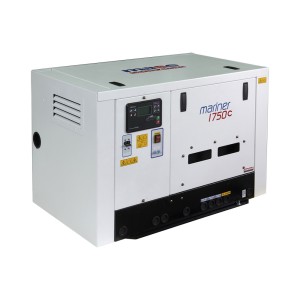

MASE MARINER 1750 KS SILENCED SINGLE-PHASE MARINE GENERATOR 17.5 KW

MASE MARINER1750KS single phase silenced marine generator is equipped with a Kubota V2203 diesel engine capable of delivering a maximum power of 17.5 KW at 1500 rpm.

The MASE MARINER1750KS is built with and synchronous alternator, self-excited with air cooling, is extremely compact and powerful, also suitable on small boats.

The MASE MARINER1750KS allows easy access for maintenance of the fuel and lubrication systems, sea water pump, air filter, oil filter and fuel. It is also equipped with safety systems of auto shutdown for low oil pressure and high engine temperature or exhaust gas.

The alternator of the MASE MARINER1750KSis synchronous with 4 poles, self-regulated, self-excited, brushless, which in coupling with the powerful KUBOTA engine can deliver a maximum power of 17.5 KW. The alternator is complete with AVR voltage regulator that ensures the stability of the voltage delivered by the generator, delivering current like the one at home.

The MASE MARINER1750KS marine generator is equipped with a soundproof cabin that makes it super quiet, with a sound emission of 49 dB(A) at a distance of 7 m. The soundproof cabin in painted aluminum is extremely lightweight and of very high resistance to external agents.

TECHNICAL FEATURES MASE MARINER1750KS

Phase Type: Single Phase
Maximum Power: 17.5 KW
Continuous Use Power: 15.6 KW
Fuel: Diesel
Voltage: 115 - 230 V
Frequency: 50 Hz
Motor: Kubota V2203, 4 Stroke
Mechanical Power: 27. 3 Hp
Number of Cylinders: 4
Displacement: 2197 cc
RPM Regulator: Mechanical Centrifugal
Engine RPM: 1500 rpm
Fuel Consumption: 6. 1 l/h
Sound pressure: 49 dB(A) @ 7 m
Alternator: Synchronous Brushless
Voltage regulator: AVR
Length: 1135 mm
Width: 631 mm
Height: 694 mm
Weight: 465 Kg

If you are looking for another marine generator then you can browse the entire catalog of marine generators.

Images and technical data are not binding.
