MASE MARINER 805 SINGLE PHASE MARINE GENERATOR 8KW

Name: MASE MARINER 805 SINGLE PHASE MARINE GENERATOR 8KW
Brand: MASE
SKU: MARINER 805
Price: 19642 EUR
Availability: InStock

Reference MARINER 805

Phase Type: Single Phase
Maximum Power: 8 KW
Continuous Use Power: 7.5 KW
Fuel: Diesel
Voltage: 115 - 230 V
Frequency: 50 Hz
Alternator: Synchronous, 4-pole Brushless
Voltage Regulator: AVR
Motor: YANMAR 3TNV80F, 4 Stroke
Mechanical Power: 12. 74 Hp
Number of Cylinders: 3
Displacement: 1267 cc
RPM Regulator: Mechanical Centrifugal
Engine RPM: 1500 rpm
Fuel Consumption: 2. 9 l/h
Length: 764 mm
Width: 520 mm
Height: 626 mm
Weight: 255 Kg

Prezzo

16,100.00 € tax excl.

19,642.00 € tax incl.

Shipping from 97.60 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MARINER 805

Data sheet

Phase: Single phase
Maximum power single phase (KW): 8
Continuous power single phase (KW): 7.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine: YANMAR 3TNV80F, 4 Tempi
Engine rpm (rpm): 1500
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 1267
Number cylinders: 3
Cooling: Air
Inyección: Indirect
Alternator: Synchronous, self-excited
Poles: 4
Lubrication: Forced
Consumption (L/h): 2.9 at 100% of the load
Length (mm): 764
Width (mm): 520
Height (mm): 626
Dry weight (Kg): 255
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Product type: Generator
Engine manufacturer: Yanmar

Specific References

Condition New

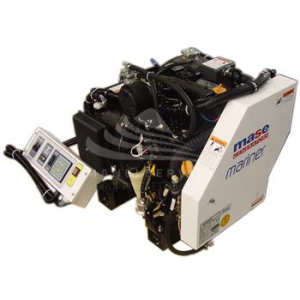

MASE MARINER 805 SINGLE-PHASE MARINE GENERATOR 8KW

MASE MARINER805 single phase marine generator is equipped with a YANMAR 3TNV80F diesel engine capable of delivering a maximum power of 8KW at 1500 rpm complete with AVR voltage regulator.

The alternator of the MASE MARINER805 is synchronous 4-pole, self-regulated, self-excited, brushless, which in conjunction with the powerful YANMAR engine can deliver a maximum power of 8KW. The rotor and the stator are coated with epoxy paint to prevent the attack of atmospheric agents, in addition it is equipped with safety systems of auto stop in case of high temperatures detected on the windings.

The CBU control module of the MASE MARINER805 has a new design, the latest technologies, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection degree. Very compact, 86x124mm and equipped with a shielded cable 10mts, the CBU module has multiple functions for a complete monitoring of the marine generator MASE MARINER805 :

- ON/OFF/START/STOP/MENU controls.
- Digital hour meter, Output voltage, Group battery, External battery pack, Frequency, Maintenance interval, List of last 10 alarms with time.
- 13 different alarm icons can be displayed.
- 485 Mod-Bus connector to monitor the group from the main control panel of the boat.

TECHNICAL FEATURES MASE MARINER805

Cras et mi quis nulla aliquam sollicitudin in vitae lorem. Nullam est purus, ullamcorper ut lacinia at, sollicitudin ac felis. Aenean in lacus nec orci vehicula ullamcorper. Nunc ullamcorper magna eget augue fermentum accumsan. Maecenas id augue at dui laoreet iaculis. Aliquam vitae scelerisque enim. Mauris tortor magna, sodales a egestas vel, convallis ac massa. Ut porttitor nisl diam, in faucibus velit blandit quis.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
