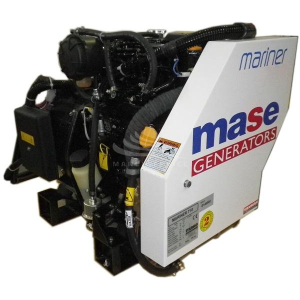

MASE MARINER 960 SINGLE PHASE MARINE GENERATOR 9,6KW EPA

MARINER 960 EPA
      MASE MARINER 960 SINGLE PHASE MARINE GENERATOR 9,6KW EPA
      MASE MARINER 960 SINGLE PHASE MARINE GENERATOR 9,6KW EPA

      Phase Type: Single Phase
      Maximum Power: 9.6KW
      Fuel: Diesel
      Voltage: 120 - 240 V
      Frequency: 60 Hz
      Engine: KUBOTA D722, 4 Stroke
      Emission Standard: EPA
      Mechanical Power: 20 Hp
      Number of Cylinders: 3
      Displacement: 719 cc
      RPM Regulator: Mechanical Centrifugal
      Engine RPM: 3600 rpm
      Boosting: Electric
      Fuel Consumption: 3. 9 l/h
      Length: 728 mm
      Width: 527 mm
      Height: 549 mm
      Weight: 135 Kg

      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      MARINER 960 EPA

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      9.6
      Fuel
      Diesel
      Frequency (Hz)
      60
      Voltage (V)
      120 / 240
      Engine
      KUBOTA D722, 4 stroke
      Emissions Regulations
      MASE
      Engine rpm (rpm)
      3600
      Speed governor
      Centrifugal, mechanical
      Engine capacity (cm³)
      719
      Number cylinders
      3
      Cooling
      Air
      Inyección
      Indirect
      Alternator
      Synchronous, self-excited
      Poles
      4
      Lubrication
      Forced
      Length (mm)
      728
      Width (mm)
      527
      Height (mm)
      549
      Dry weight (Kg)
      135
      Inverter
      No
      AVR
      No
      Compound
      No
      Silenced
      No
      Super silenced
      No
      Product type
      Generator
      Engine manufacturer
      Kubota

      Specific References

      MASE MARINER960 9,6KW marine generator

      MASE MARINER960 single-phase marine generator is equipped with a KUBOTA D722 diesel engine capable of delivering a maximum power of 9.6KW at 3600 rpm.

      The marine generator MASE MARINER960 is built with and synchronous alternator, self-excited with air cooling, is extremely compact and powerful, suitable even on small boats.

      The alternator of the MASE MARINER960 is synchronous 2-pole, self-regulated, self-excited, brushless, which in conjunction with the powerful engine KUBOTA can deliver a maximum power of 9.6KW. The rotor and the stator are coated with epoxy paint to prevent the attack of atmospheric agents, in addition it is equipped with safety systems of auto stop in case of high temperatures detected on the windings.

      The CBU control module of the marine generator MASE MARINER960 has a new design, the latest technologies, a large display and micro-buttons for quick navigation of menus, start and stop procedures; protection degree IP54. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for a complete monitoring of the marine generator MASE MARINER610:

      - ON/OFF/START/STOP/MENU controls.
      - Digital hour meter, Output voltage, Group battery voltage, External battery pack voltage, Frequency, Maintenance interval, Last 10 alarms list with time.
      - 13 different alarm icons can be displayed.
      - 485 Mod-Bus connector to monitor the group from the main control panel of the boat.

      The MASE MARINER960 marine generator has EPA certification valid only for the American market.

      TECHNICAL FEATURES MASE MARINER960

      Phase Type: Single Phase
      Maximum Power: 9.6KW
      Fuel: Diesel
      Voltage: 120 - 240 V
      Frequency: 60 Hz
      Engine: KUBOTA D722, 4 Stroke
      Emission Standard: EPA
      Mechanical Power: 20 Hp
      Number of Cylinders: 3
      Displacement: 719 cc
      RPM Regulator: Mechanical Centrifugal
      Engine RPM: 3600 rpm
      Boosting: Electric
      Fuel Consumption: 3. 9 l/h
      Length: 728 mm
      Width: 527 mm
      Height: 549 mm
      Weight: 135 Kg

      If you are looking for another MASE marine generator then you can browse the entire catalog of marine gensets.

      Images and technical data are not binding.

      Nunc mattis malesuada diam sed tristique. Nulla non pretium libero. Aliquam fermentum posuere leo, sit amet lobortis ligula laoreet id. Donec metus dolor, suscipit et mi quis, placerat eleifend est. Sed commodo quis augue sed consequat. Cras id lacus eget mi pellentesque fringilla quis rutrum nisi. Nullam lectus tortor, ornare a neque ut, pretium scelerisque arcu. Phasellus molestie nisi

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
