MASE MARINER 2400 S SINGLE PHASE SILENCED MARINE GENERATOR 26 KW

002584
      MASE MARINER 2400 S SINGLE PHASE SILENCED MARINE GENERATOR 26 KW
      MASE MARINER 2400 S SINGLE PHASE SILENCED MARINE GENERATOR 26 KW

      Phase Type: Single Phase
      Maximum Power: 26 KW
      Continuous Use Power: 24 KW
      Fuel: Diesel
      Voltage: 115 - 230 V
      Frequency: 50 Hz
      Engine: Yanmar 4TNV98, 4 Stroke
      Mechanical Power: 47 Hp
      Number of Cylinders: 4
      Displacement: 3319 cc
      Engine RPM: 1500 rpm
      Fuel Consumption: 6. 4 l/h
      Sound pressure: 54 dB(A) @ 7 m
      Alternator: Synchronous Brushless
      Voltage regulator: AVR
      Length: 1295 mm
      Width: 630 mm
      Height: 810 mm
      Weight: 595 Kg

      Prezzo
      29,500.00 € tax excl.
      35,990.00 € tax incl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      002584

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      26
      Continuous power single phase (KW)
      24
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      115 / 230
      Engine
      Yanmar 4TNV98, 4 stroke
      Engine rpm (rpm)
      1500
      Speed governor
      Centrifugal, mechanical
      Engine capacity (cm³)
      3319
      Number cylinders
      4
      Oil capacity (L)
      10.5
      Cooling
      Air
      Inyección
      Direct
      Alternator
      Synchronous, self-excited
      Poles
      4
      Compression ratio
      18 : 1
      Lubrication
      Forced
      Consumption (L/h)
      6.4
      Acoustic pressure
      54 dB(A) at 7 m
      Length (mm)
      1295
      Width (mm)
      630
      Height (mm)
      810
      Dry weight (Kg)
      595
      Inverter
      No
      AVR
      Yes
      Compound
      No
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      AVR
      Engine manufacturer
      Yanmar

      Specific References

      New

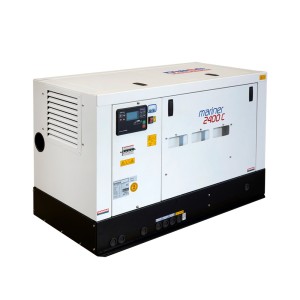

      MASE MARINER 2400 S SILENCED SINGLE-PHASE MARINE GENERATOR 26 KW

      MASE MARINER2400S single phase silenced marine generator is equipped with a Yanmar 4TNV98 diesel engine capable of delivering a maximum power of 26 KW at 1500 rpm.

      The MASE MARINER2400S is built with and synchronous alternator, self-excited with air cooling, is extremely compact and powerful, also suitable on small boats.

      The MASE MARINER2400S allows easy access for maintenance of the fuel and lubrication systems, sea water pump, air filter, oil filter and fuel. It is also equipped with safety systems of auto stop for low oil pressure and high engine temperature or exhaust gas.

      The alternator of the MASE MARINER2400S is synchronous with 4 poles, self-regulated, self-excited, brushless, which in conjunction with the powerful Yanmar engine can deliver a maximum power of 26 KW. The alternator is complete with AVR voltage regulator that ensures the stability of the voltage delivered by the generator, delivering current as the home.

      The MASE MARINER2400S marine generator is equipped with a soundproof cabin that makes it super quiet, with a sound emission of 54 dB(A) at a distance of 7 m. The soundproof cabin in painted aluminum is extremely lightweight and of very high resistance to external agents.

      TECHNICAL FEATURES MASE MARINER2400S

      Phase Type: Single Phase
      Maximum output: 26 KW
      Continuous Use output: 24 KW
      Fuel: Diesel
      Voltage: 115 - 230 V
      Frequency: 50 Hz
      Engine: Yanmar 4TNV98, 4 Stroke
      Mechanical Power: 47 Hp
      Number of Cylinders: 4
      Displacement: 3319 cc
      Engine RPM: 1500 rpm
      Fuel Consumption: 6. 4 l/h
      Sound pressure: 54 dB(A) @ 7 m
      Alternator: Synchronous Brushless
      Voltage regulator: AVR
      Length: 1295 mm
      Width: 630 mm
      Height: 810 mm
      Weight: 595 Kg

      If you are looking for another marine generator then you can browse the entire catalog of marine generators.

      Images and technical data are not binding.

      Nam nec dui condimentum, aliquam dolor at, fermentum risus. Nullam pellentesque lacus ut pharetra condimentum. Sed sed luctus nunc, eu commodo neque. Quisque quis finibus nibh. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Nam tempor elementum dui a convallis. Aliquam tellus felis, convallis quis ultrices id, sollicitudin vitae leo. Aliquam pellentesque vehicula ipsum vel condimentum. Duis odio metus, consectetur vitae massa ac, cursus ullamcorper purus. Sed at pulvinar

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
