MARINE GENERATOR MASE IS 25 T - THREE-PHASE 28KVA

Name: MARINE GENERATOR MASE IS 25 T - THREE-PHASE 28KVA
Brand: MASE
SKU: MASE IS 25 T
Price: 36966 EUR
Availability: InStock

Reference MASE IS 25 T

Phase Type: Three Phase
Maximum Power: 28KVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV84, 4 Stroke
Mechanical Power: 47 Hp
Number of Cylinders: 4
Displacement: 3319 cc
RPM Regulator: Centrifugal, Mechanical
Engine RPM: 1500 rpm
Acoustic Power: 52 dBA @ 7 m
Length: 1225 mm
Width: 630 mm
Height: 830 mm
Weight: 625 Kg

Prezzo

30,300.00 € tax excl.

36,966.00 € tax incl.

Shipping from 262.30 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MASE IS 25 T

Data sheet

Phase: Three phase
Maximum power three phase (KVA): 28
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: Yanmar 4TNV84 TURBO, 4 stroke
Engine rpm (rpm): 1500
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Air / water (Intercooler W/A)
Inyección: Direct
Alternator: Synchronous, self-excited
Poles: 4
Lubrication: Forced
Consumption (L/h): 8.9
Acoustic pressure: 53 dB(A) at 7 m
Length (mm): 1225
Width (mm): 630
Height (mm): 830
Dry weight (Kg): 625
Inverter: No
AVR: Yes
Compound: No
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

Condition New

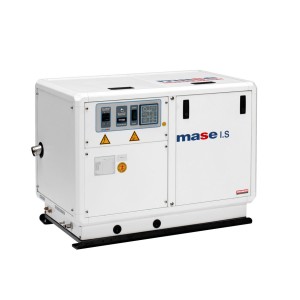

MASE IS 25 T THREE PHASE MARINE GENERATOR 28KVA

MARINE GENERATOR MASE IS25T three-phase marine generator with Yanmar 4TNV84 engine with diesel power supply at 1500 rpm capable of delivering a power of 28KVA.

The MASE IS25T marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS25T marine generator is built with a Yanmar diesel-powered engine and synchronous alternator, self-excited with air/water cooling. With its small size, it is also suitable on small boats.

The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS25T.

The soundproof cabin of the MASE IS25T consists of a load-bearing structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

Technical Features:
Maximum Power: 28KVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV84, 4 Strokes
Length: 1225 mm
Width: 630 mm
Height: 830 mm
Weight: 625 Kg

If you are looking for another generator as the MASE IS25T then you can see the entire catalog of marine generators .

Images and technical data are not binding.
