MASE IS 13.04 MARINE GENERATOR SINGLE-PHASE 12KW EPA

Reference MASE IS 13.04

Phase Type: Single Phase
Continuous Use Power: 11.5KW
Maximum Power: 12KW
Fuel: Diesel
Voltage: 120 / 240 V
Frequency: 60 Hz
Engine: Yanmar 3TNM88F, 4 Stroke
Mechanical Power: 20. 4 Hp
Number of cylinders: 3
Displacement: 993 cc
RPM controller: Centrifugal, mechanical
Engine speed: 1800 rpm
Acoustic power: 50 dBA @ 7 m
Length: 985 mm
Width: 585 mm
Height: 730 mm
Weight: 344Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MASE IS 13.04

Data sheet

Phase: Single phase
Maximum power single phase (KW): 12
Continuous power single phase (KW): 11.5
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 120 / 240
Engine: Yanmar 3TNV88, 4 stroke
Engine rpm (rpm): 1800
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 993
Number cylinders: 3
Cooling: Air / water (Intercooler W/A)
Inyección: Indirect
Alternator: Synchronous, self-excited
Poles: 4
Compression ratio: 23.5 : 1
Lubrication: Forced
Consumption (L/h): 4.8 at 100% of the load
Acoustic pressure: 50 dB(A) at 7 m
Length (mm): 985
Width (mm): 585
Height (mm): 730
Dry weight (Kg): 344
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: Yes

Specific References

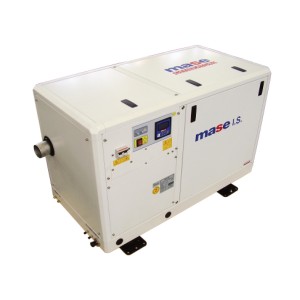

MASE IS 13.04 SINGLE PHASE MARINE GENERATOR 12KW EPA

MASE IS13,04 single phase marine generator with Yanmar 3TNM88F engine with diesel power supply at 1800 rpm capable of delivering a power of 12KW.

The MASE IS13,04 marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS13,04 is built with a diesel-powered Yanmar engine and synchronous, self-excited alternator with air/water cooling. With its small size, it is also suitable on small boats.

The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS13,04.

The soundproof cabin of the MASE IS13,04 is constituted by a bearing structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and of very high resistance to the external agents. The excellent accessibility to the internal compartment makes maintenance operations easier, even when the generator set is installed in narrow spaces.

The MASE IS13,04 marine generator has EPA certification valid only for the U.S. market.

Technical Features:
Phase Type: Single Phase
Continuous Use Power: 11. 5KW
Maximum Power: 12KW
Fuel: Diesel
Voltage: 120 / 240 V
Frequency: 60 Hz
Engine: Yanmar 3TNM88F, 4 Stroke
Length: 985 mm
Width: 585 mm
Height: 730 mm
Weight: 344Kg

If you are looking for another generator as the MASE IS13.04 then you can see the entire catalog of marine generators .

Images and technical data are not binding.
