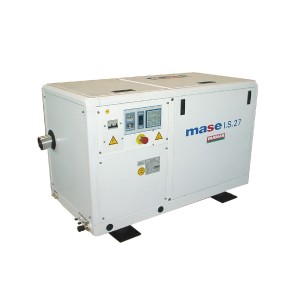

MASE IS 27 K MARINE GENERATOR SINGLE-PHASE 29KW

MASE IS 27 K
      MASE IS 27 K MARINE GENERATOR SINGLE-PHASE 29KW
      MASE IS 27 K MARINE GENERATOR SINGLE-PHASE 29KW

      Phase Type: Single Phase
      Continuous Use Power: 27KW
      Maximum Power: 29KW
      Fuel: Diesel
      Voltage: 115 / 230 V
      Frequency: 50 Hz
      Engine: KUBOTA V3300, 4 Stroke
      Mechanical Power: 38. 8 Hp
      Number of cylinders: 4
      Displacement: 3318 cc
      RPM controller: Electronic
      Engine speed: 1500 rpm
      Acoustic power: 52 dBA @ 7 m
      Length: 1260 mm
      Width: 640 mm
      Height: 830 mm
      Weight: 630 Kg

      Prezzo
      36,700.00 € tax excl.
      44,774.00 € tax incl.
      Shipping from 229.36 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      MASE IS 27 K

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      29
      Continuous power single phase (KW)
      27
      Maximum power single phase (KVA)
      29
      Continuous power single phase (KVA)
      27
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      115 / 230
      Engine
      KUBOTA V3300-BG
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Engine capacity (cm³)
      3318
      Number cylinders
      4
      Oil capacity (L)
      10.5
      Cooling
      Air / water (Intercooler W/A)
      Inyección
      Direct
      Alternator
      Synchronous, self-excited
      Poles
      4
      Compression ratio
      18 : 1
      Lubrication
      Forced
      Consumption (L/h)
      11 at 100% of the load
      Acoustic pressure
      52 dB(A) at 7 m
      Length (mm)
      1260
      Width (mm)
      640
      Height (mm)
      830
      Dry weight (Kg)
      630
      Inverter
      No
      AVR
      Yes
      Compound
      No
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      AVR
      Engine manufacturer
      Kubota

      Specific References

      MASE IS 27 K SINGLE PHASE MARINE GENERATOR 29KW

      MASE IS27K single-phase marine generator with KUBOTA V3300 engine with diesel power supply at 1500 rpm capable of delivering a power of 29KW.

      The MASE IS27K marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS27K marine generator is built with a KUBOTA diesel-powered engine and synchronous alternator, self-excited with air/water cooling. With its small size, it is also suitable on small boats.

      The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS27K.

      The soundproof cabin of the MASE IS27K consists of a load-bearing structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

      Technical Features:
      Phase Type: Single Phase
      Continuous Use Power: 27KW
      Maximum Power: 29KW
      Fuel: Diesel
      Voltage: 115 / 230 V
      Frequency: 50 Hz
      Engine: KUBOTA V3300, 4 Stroke
      Length: 1260 mm
      Width: 640 mm
      Height: 830 mm
      Weight: 630 Kg

      If you are looking for another generator as the MASE IS27K then you can see the entire catalog of marine generator sets.

      Images and technical data are not binding.
