CUMMINS MARINE GENERATOR  ONAN MDKDV SINGLE PHASE SET 19 KW AVR
      CUMMINS MARINE GENERATOR  ONAN MDKDV SINGLE PHASE SET 19 KW AVR
      CUMMINS MARINE GENERATOR  ONAN MDKDV SINGLE PHASE SET 19 KW AVR

      CUMMINS MARINE GENERATOR ONAN MDKDV SINGLE PHASE SET 19 KW AVR

      A047L461

      Phase Type: Single-Phase
      Power Supply: Diesel
      Single-Phase Power: 19 KW
      Single-Phase Power: 19 KVA
      Voltage: 115V/230V
      Amps: 82.6A at 230 V, 165. 2A at 115 V
      Frequency: 50 Hz
      Rpm: 1500 rpm
      Cooling: Liquid
      Cylinders: 4
      Bore x Stroke: 87x102.4 mm
      Displacement: 2434 c.c
      Compression Ratio: 24.3:1
      Boosting: Electric 12V
      Fuel Consumption: 5. 2 Lt/h at 75% load
      Voltage regulator: digital AVR
      Insulation class: H
      Length: 1127 mm
      Width: 602 mm
      Height: 698 mm
      Weight: 422 Kg
      Super-silenced
      65 dB(A) at 1 meter

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      CUMMINS ONAN
      A047L461

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      19
      Continuous power single phase (KW)
      19
      Maximum power single phase (KVA)
      19
      Continuous power single phase (KVA)
      19
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      115 / 230
      Engine
      Cummins, 4 tempi
      Engine rpm (rpm)
      1500
      Starting system
      Elettrico
      Engine capacity (cm³)
      2434
      Number cylinders
      4
      Oil capacity (L)
      7.6
      Cooling
      Water
      Poles
      4
      Bore x stroke (mm)
      87 x 102
      Consumption (L/h)
      5.2 @ 75%
      Acoustic pressure
      65 dB(A)
      Length (mm)
      1127
      Width (mm)
      602
      Height (mm)
      698
      Dry weight (Kg)
      422
      Silenced
      Yes
      Super silenced
      Yes
      Compression ratio
      24.3 : 1
      Product type
      Generator
      ATS Switch device
      No
      Voltage regulator
      AVR
      Engine manufacturer
      Cummins

      Specific References

      New

      Super-silenced CUMMINS ONAN MARINE GENERATOR ONAN MDKDV  19 KW AVR

      CUMMINS ONAN MDKDV single phase 19 KW marine generator with 1500 rpm motor. The CUMMINS ONAN MDKDV is designed with a soundproof enclosure that makes it supersilenced. The CUMMINS ONAN MDKDV marine generator is built with a Cummins 4-stroke diesel powered engine. The alternator of the CUMMINS ONAN MDKDV is 4-pole with insulation class H and AVR voltage regulator.

      The AVR is an electronic device that regulates the alternating current coming from the alternator and transforms it into direct current.

      So, by means of a voltage regulator, it is possible to convert the alternating current with time-varying frequency and voltage into direct current with constant voltage and thus allows to avoid and current surges.

      Technical Specifications of CUMMINS MARINE GENERATOR ONAN MDKDV :
      Phase Type: Single-Phase
      Power Supply: Diesel
      Single-Phase Power: 19 KW
      Single-Phase Power: 19 KVA
      Voltage: 115V/230V
      Amps: 82.6A at 230 V, 165. 2A at 115 V
      Frequency: 50 Hz
      Rpm: 1500 rpm
      Cooling: Liquid
      Cylinders: 4
      Bore x Stroke: 87x102.4 mm
      Displacement: 2434 c.c
      Compression Ratio: 24.3:1
      Boosting: Electric 12V
      Fuel Consumption: 5. 2 Lt/h at 75% load
      Voltage regulator: digital AVR
      Insulation class: H
      Length: 1127 mm
      Width: 602 mm
      Height: 698 mm
      Weight: 422 Kg
      Super-silenced
      65 dB(A) at 1 meter
      Includes soundproofing booth, 12V electrical system, negative ground.

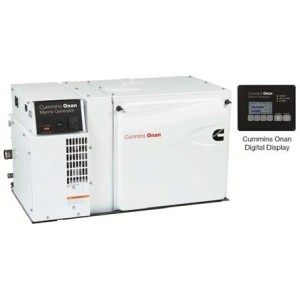

      - The CUMMINS MARINE GENERATOR optional digital display offers user-friendly diagnostics including detailed engine and alternator information, self-diagnostic functions and text displays.
      - Marine generators like the CUMMINS with advanced design and development processes use technology to reduce noise and vibration. Acoustic shields minimize noise and provide better sound quality output. Optimized mounting system greatly reduces vibration.
      - Certified by the U.S. Environmental Protection Agency. (EPA) (60 Hz models only).

      If you're looking for a boat product like the MDKDV marine generator, but with different technical features, then you can browse the entire catalog of marine generators.

      Non-binding images and technical data.

      ""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
