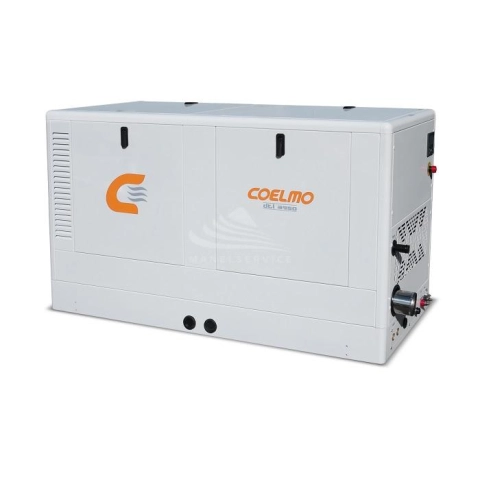

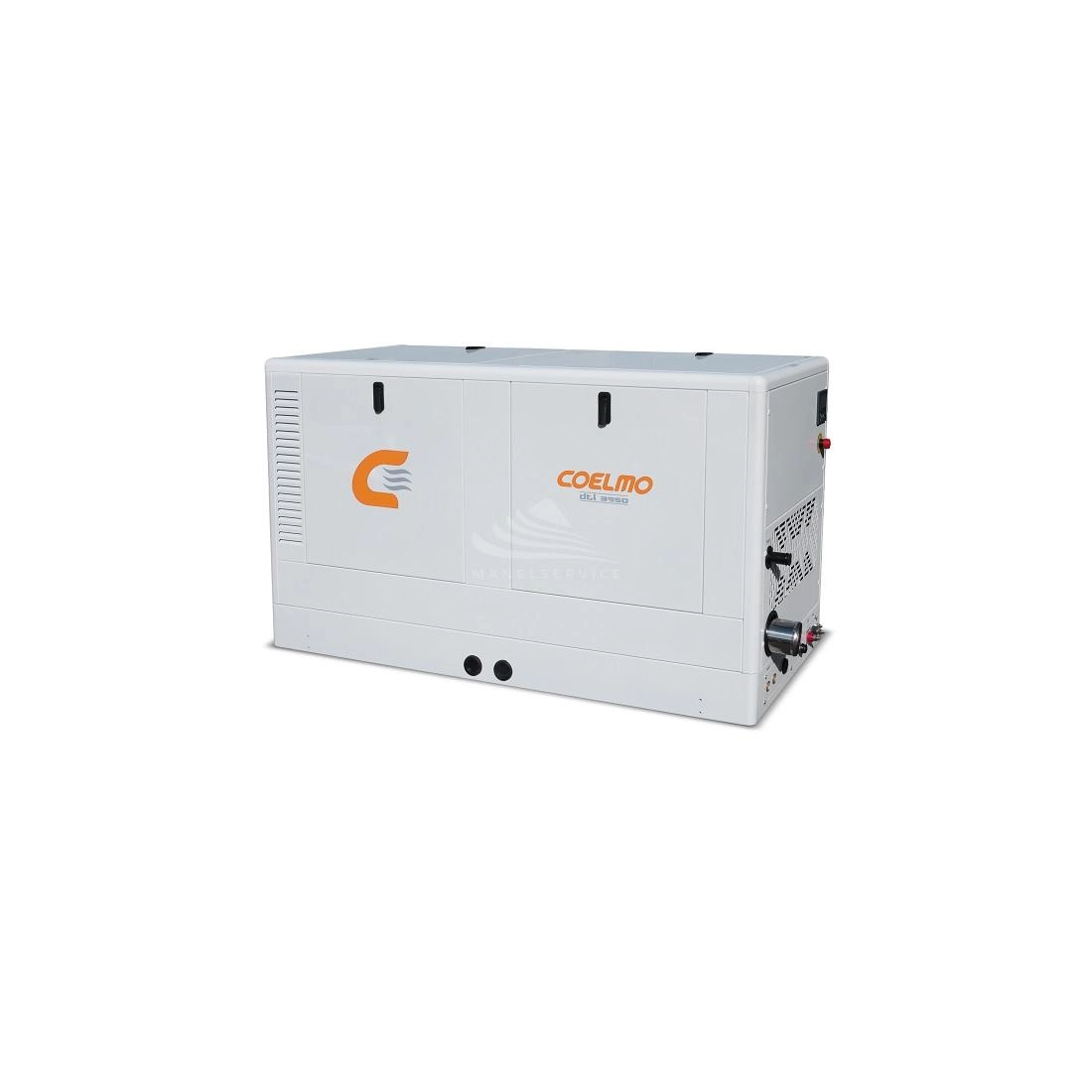

COELMO DTL3950 FIDIO MARINE DIESEL GENERATOR 39.5 KVA

Reference DTL3950 FIDIO

Download Scheda tecnica DTL3950 Download Technical data DTL3950 Download Manuale DTL3950 Download Manual DTL3950

Product Details
Description

Phase: Three phase
Poles: 4
Cooling: With exchanger
Engine: KUBOTA V3300T-BG
Compression ratio: 21.8 : 1
Maximum power three phase (KW): 31.6
Continuous power three phase (KW): 28.7
Maximum power three phase (KVA): 39.5
Continuous power three phase (KVA): 35.9
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3318
Number cylinders: 4
Oil capacity (L): 13.2
Alternator: Synchronous, single bearing, self-regulated, self-excited, brushless, with electronic voltage regulator
Bore x stroke (mm): 98 x 110
Consumption (L/h): 5.7 at 50% of the load / 9.1 at 100% of the load
Acoustic pressure: 54 dB(A) at 7 m
Length (mm): 1590
Width (mm): 700
Height (mm): 900
Dry weight (Kg): 680
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: Yes

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
