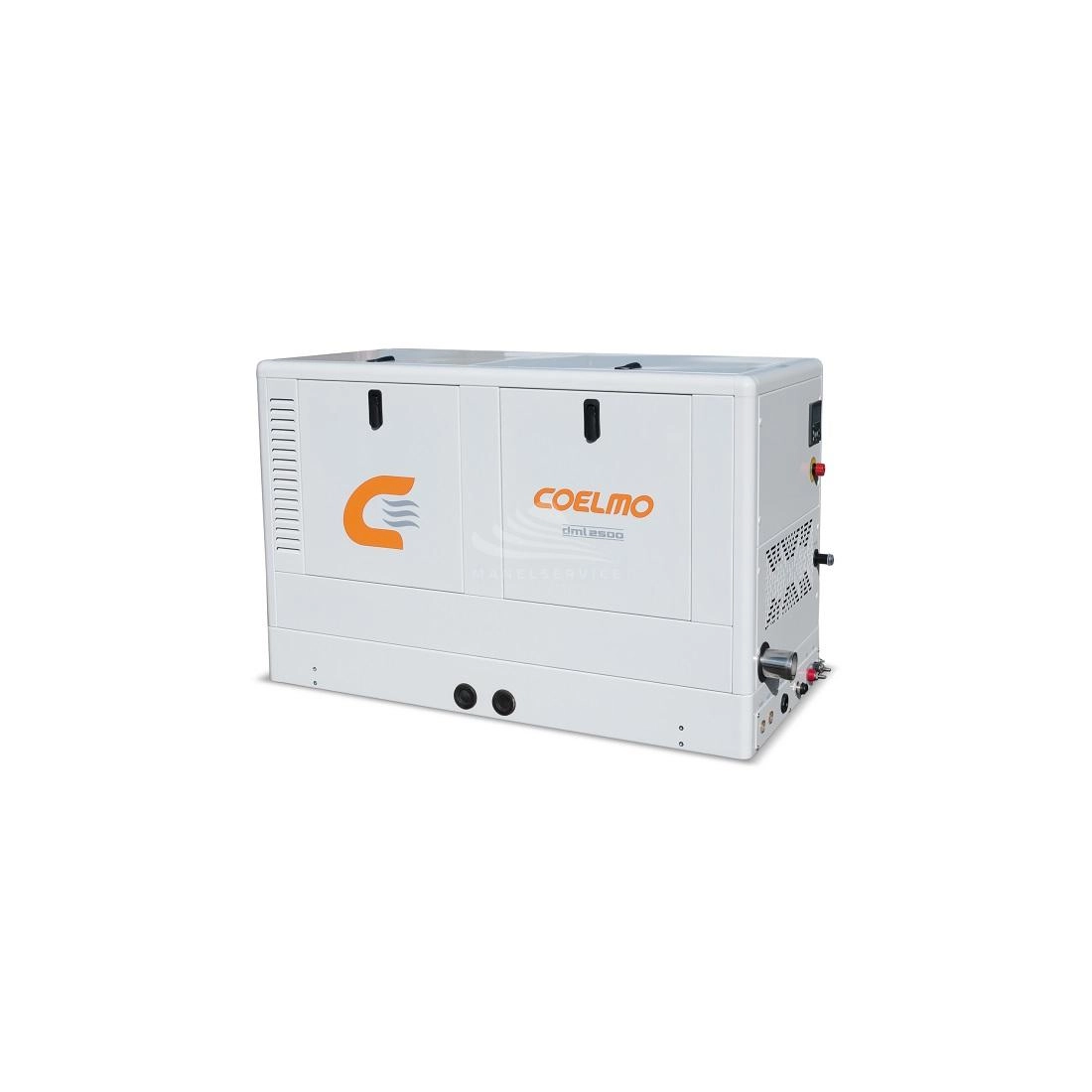

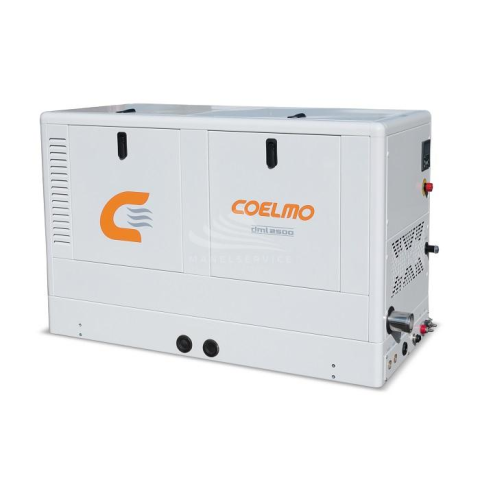

COELMO DML2500 FIDIO MARINE DIESEL GENERATOR 25 KVA


Phase
Single phase
Height (mm)
730
Length (mm)
1130
Starting system
Electric
Width (mm)
600
Inverter
No
Engine
KUBOTA V2403-BG
Poles
4
Cooling
With exchanger
Compression ratio
23.2 : 1
Maximum power single phase (KW)
20
Continuous power single phase (KW)
18
Maximum power single phase (KVA)
25
Continuous power single phase (KVA)
22.7
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
2434
Number cylinders
4
Oil capacity (L)
8
Alternator
Synchronous, single bearing, self-regulated, self-excited, brushless, with electronic voltage regulator
Bore x stroke (mm)
87 x 102
Consumption (L/h)
3.4 at 50% of the load / 6.1 at 100% of the load
Acoustic pressure
54 dB(A) at 7 m
Dry weight (Kg)
448
AVR
No
Compound
No
Silenced
Yes
Super silenced
Yes
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
