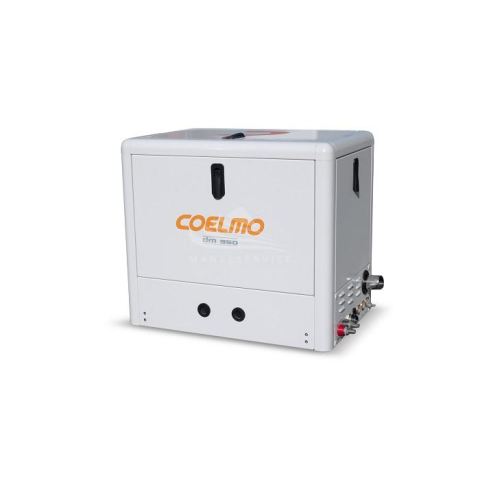

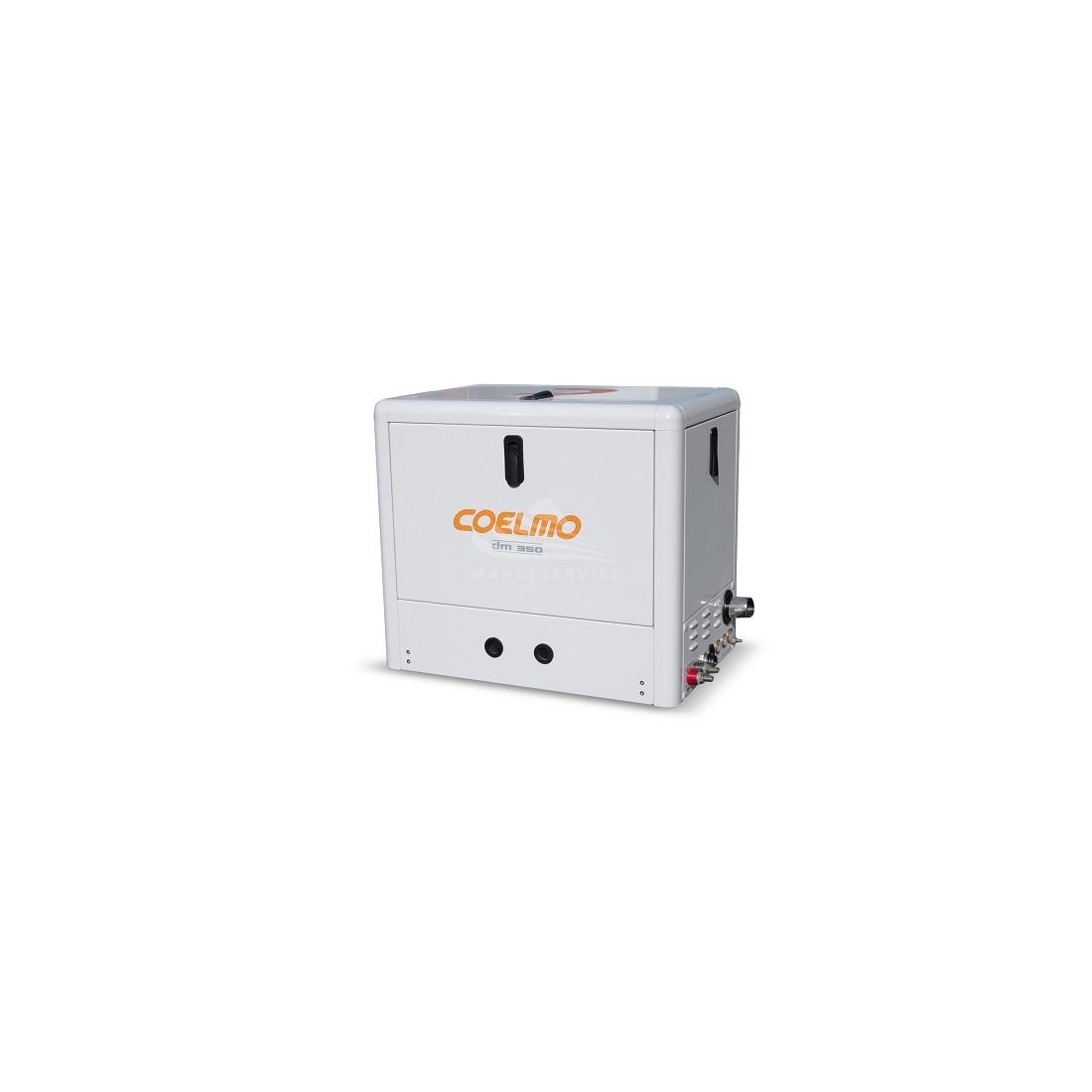

COELMO DM350 EOS MARINE DIESEL GENERATOR 3.5 KVA


Phase
Single phase
Height (mm)
515
Length (mm)
590
Starting system
Electric
Width (mm)
405
Inverter
No
Engine
Farymann 18W
Poles
2
Cooling
Seawater
Compression ratio
20 : 1
Maximum power single phase (KW)
3.5
Continuous power single phase (KW)
3.2
Maximum power single phase (KVA)
3.5
Continuous power single phase (KVA)
3.2
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Speed governor
Mechanical
Engine capacity (cm³)
290
Number cylinders
1
Oil capacity (L)
1.2
Alternator
Synchronous, single bearing, brushless, cooled sea water
Bore x stroke (mm)
82 x 55
Consumption (L/h)
0.9 at 50% of the load / 1.5 at 100% of the load
Acoustic pressure
52 dB(A) at 7 m
Dry weight (Kg)
105
AVR
No
Compound
No
Silenced
Yes
Super silenced
Yes
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
