Drive: Manual
Operator type: Pedestrian
Load capacity: 2000 Kg
Quantity rear wheels: 4
Quantity front wheels: 2
Lift height: 115 mm
Overall lenght: 1596 mm
Overall width: 555 mm
Width fork: 180 mm
Lenght fork: 1185 mm
Distance between fork arms: 555 mm
Aisle width: 1851 mm
Turning radius: 1426 mm
The scale trucks range are equipped with a functional and precise weighing device with several operating options, suitable for lifting heavy loads.
Display

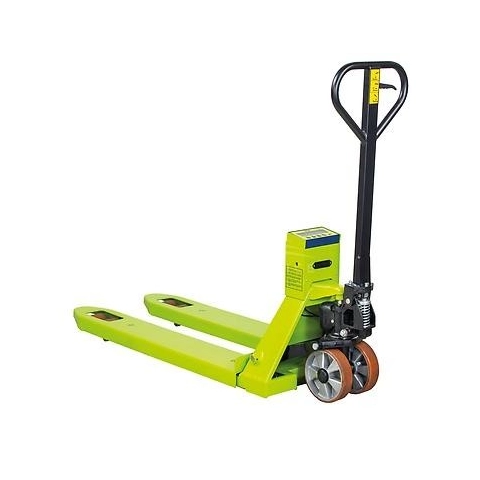

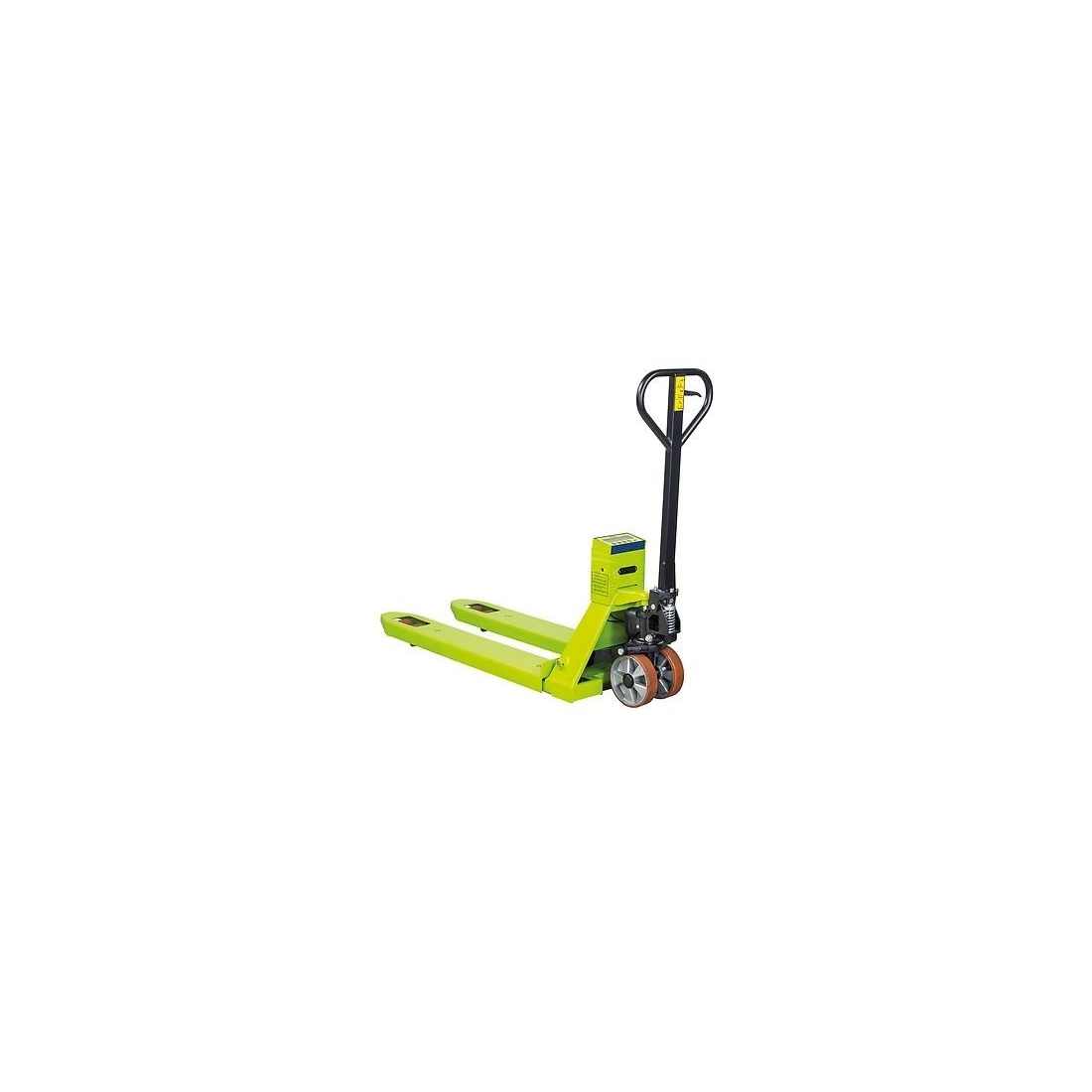

The PX20 pallet truck is a simple, economical and robust tool to be used for the weighing of transported loads. Its large-sized LCD display allows for easy reading of weight and the setting of tare simply and immediately.
Frame structure
The structure is made up of a double frame and a lower fork on which a counter fork is placed; both forks house four load cells that allow for a uniform load distribution, thus keeping weighing precision even in case of collision and unbalanced load.
The images are purely indicative.
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
