CGM 15DW - HOOD WITH AUTOMATIC CONTROL UNIT

CGM 15DW - COVERED WITH AUTOMATIC CONTROL UNIT

These generating sets are equipped with Lombardini / Kohler diesel engines with electric start (with key and battery).

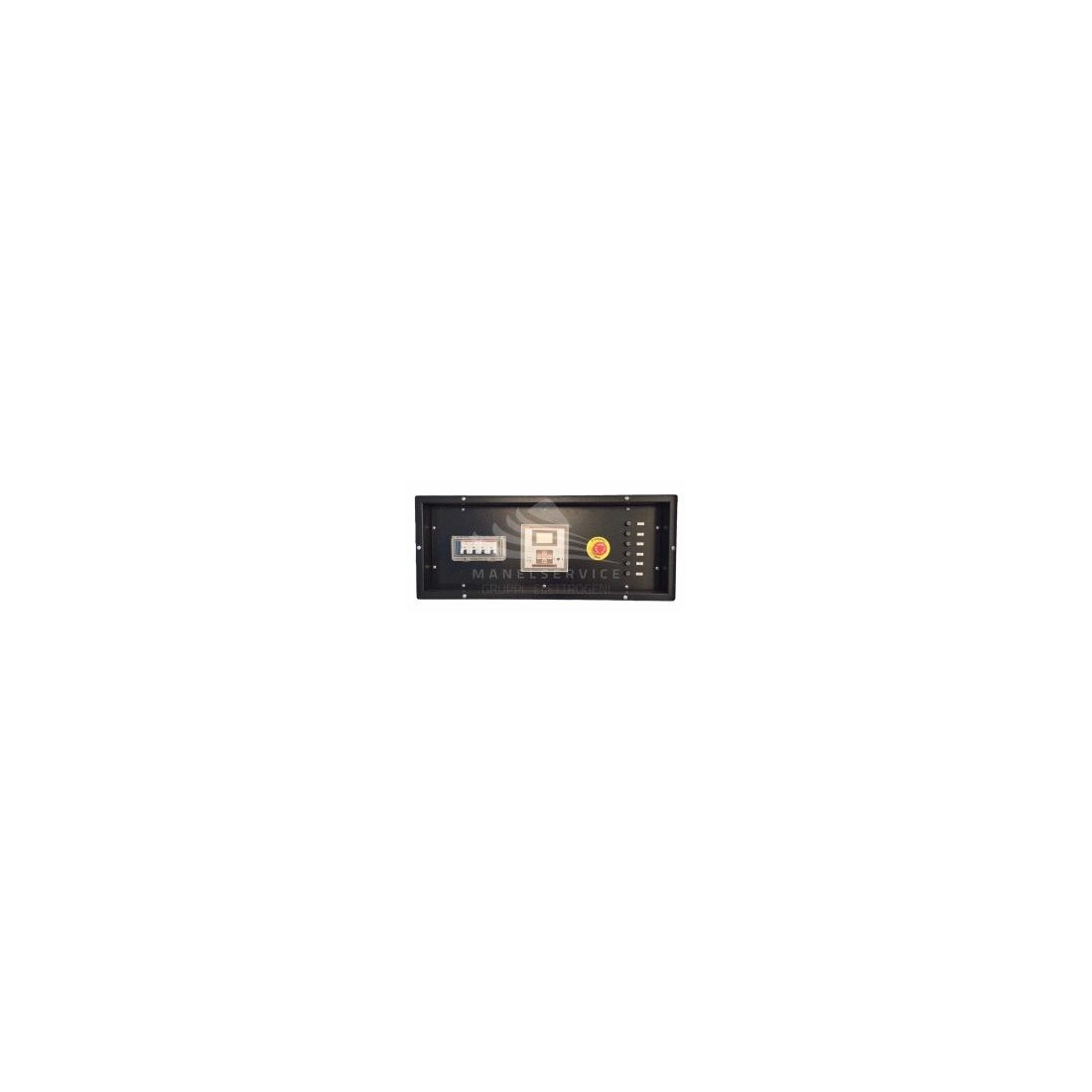

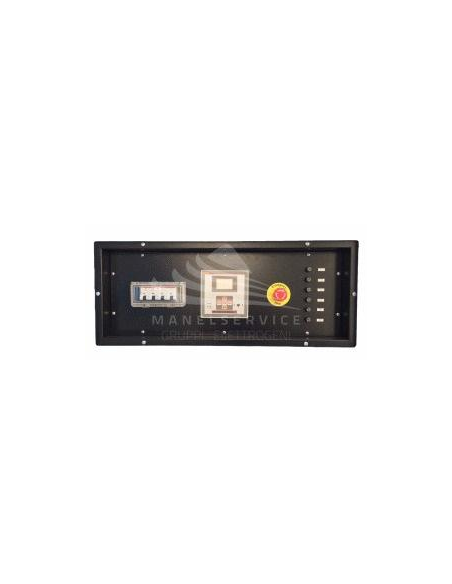

Alternator with 400 Volt Three-phase with accessible neutral or 230 Volt Single-phase - 50 Hz mounted on the base frame. Electric panel for manual control fixed on the unit.
Main applications: isolated villas, campsites, mountain huts, small construction sites, restaurants, farms, artisan industries, sports centers, service stations, etc.
The groups at 3000 rpm they are suitable for non-continuous emergency use, it is not recommended to use them for more than 6 continuous hours and for more than 500 Hr / year.

Technical characteristics CGM 15DW

Maximum three-phase power: 13.2 KW
Continuous three-phase power: 12 KW
Maximum three-phase power: 16.5 KVA
Continuous three-phase power: 15 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Electrical protection: IP44
Motor: LOMBARDINI LDW 1003
Displacement cc: 686
Engine revolutions: 3000 rpm
Bore x stroke: 75 x 77.6
Aspiration: Natural
Speed ??regulator: Mechanical
Number and arrangement of cylinders: 3 in line
Cooling system: Water
Starting: Electric
Alternator: Linz, with brushes
Poles: 2
Voltage regulator system: Compound
Consumption: 3.8 Lt / h at 75% of the load
Tank capacity: 50 Lt
Autonomy: 13.2 h at 75% of the load
Length: 1600 mm
Width: 700 mm
Height: 1050 mm
Weight : 350 Kg

Are you looking for a product with different technical characteristics? HERE you can find the full range of CGM generators and other specialized brands.

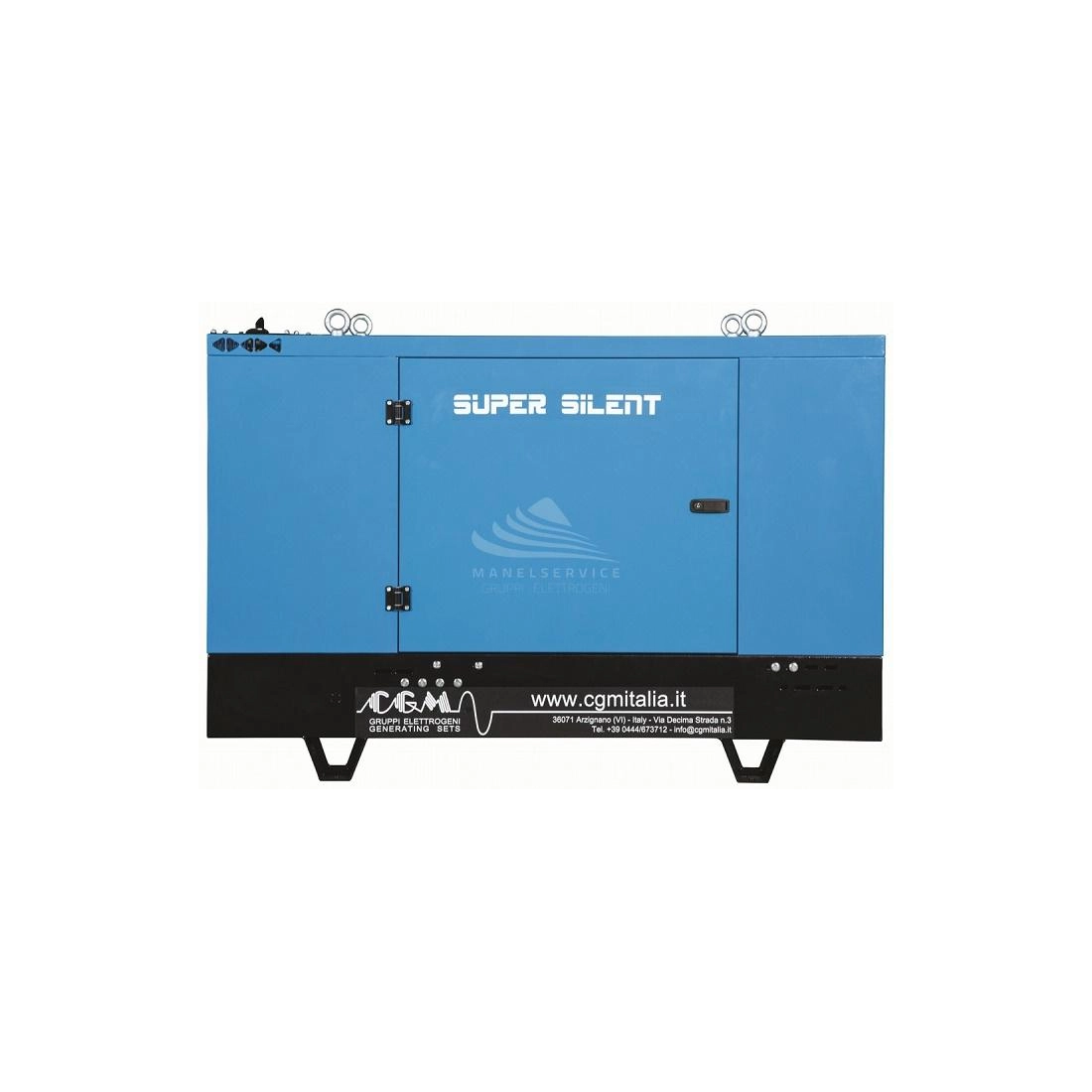

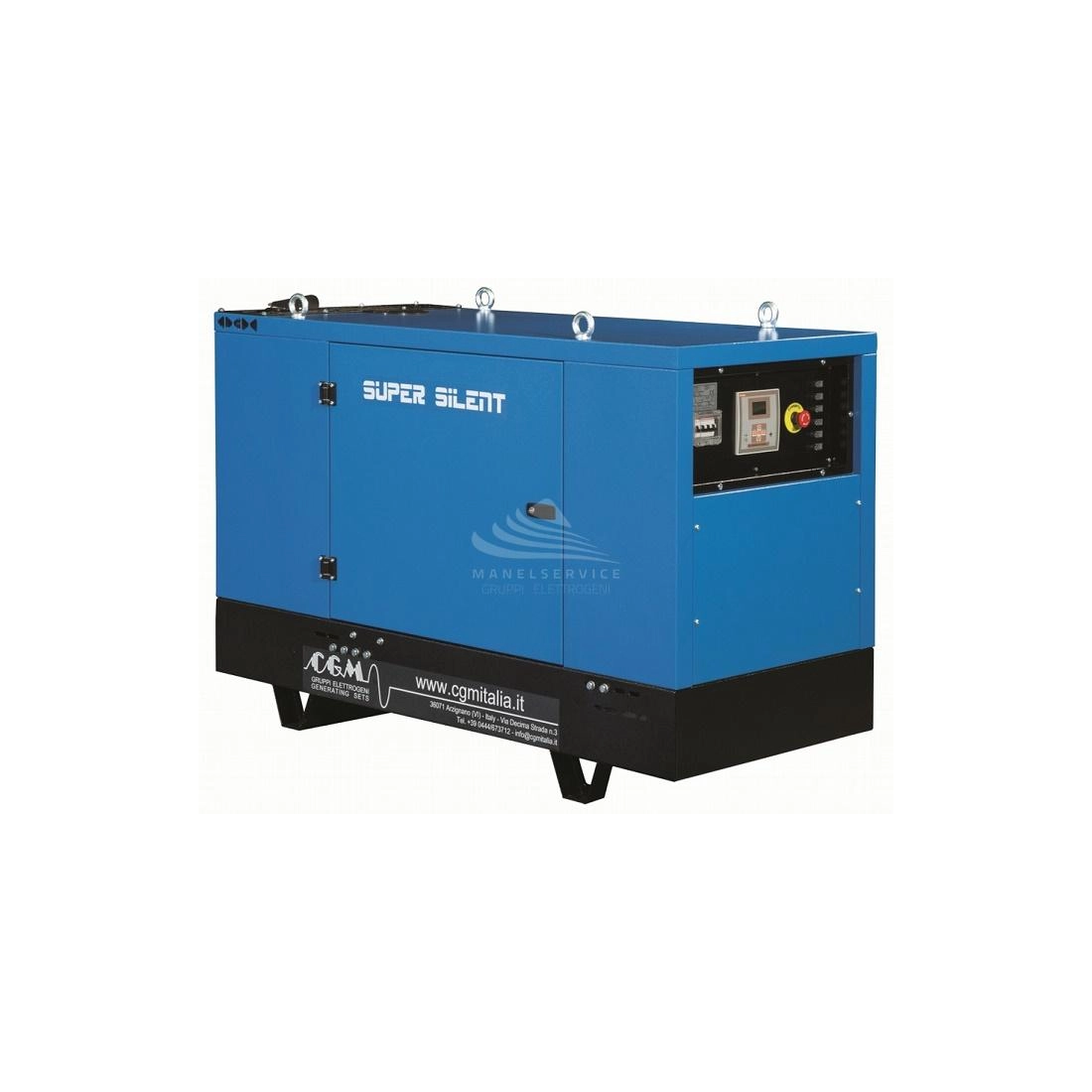

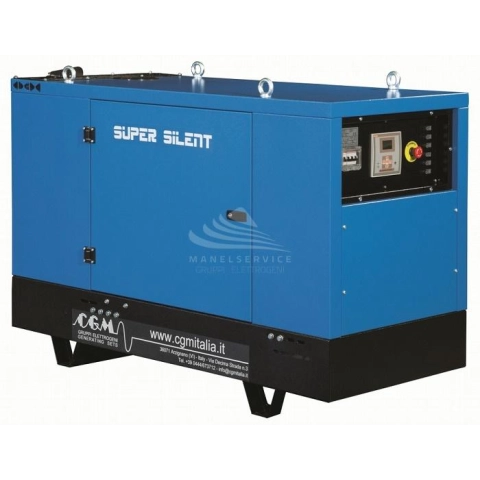

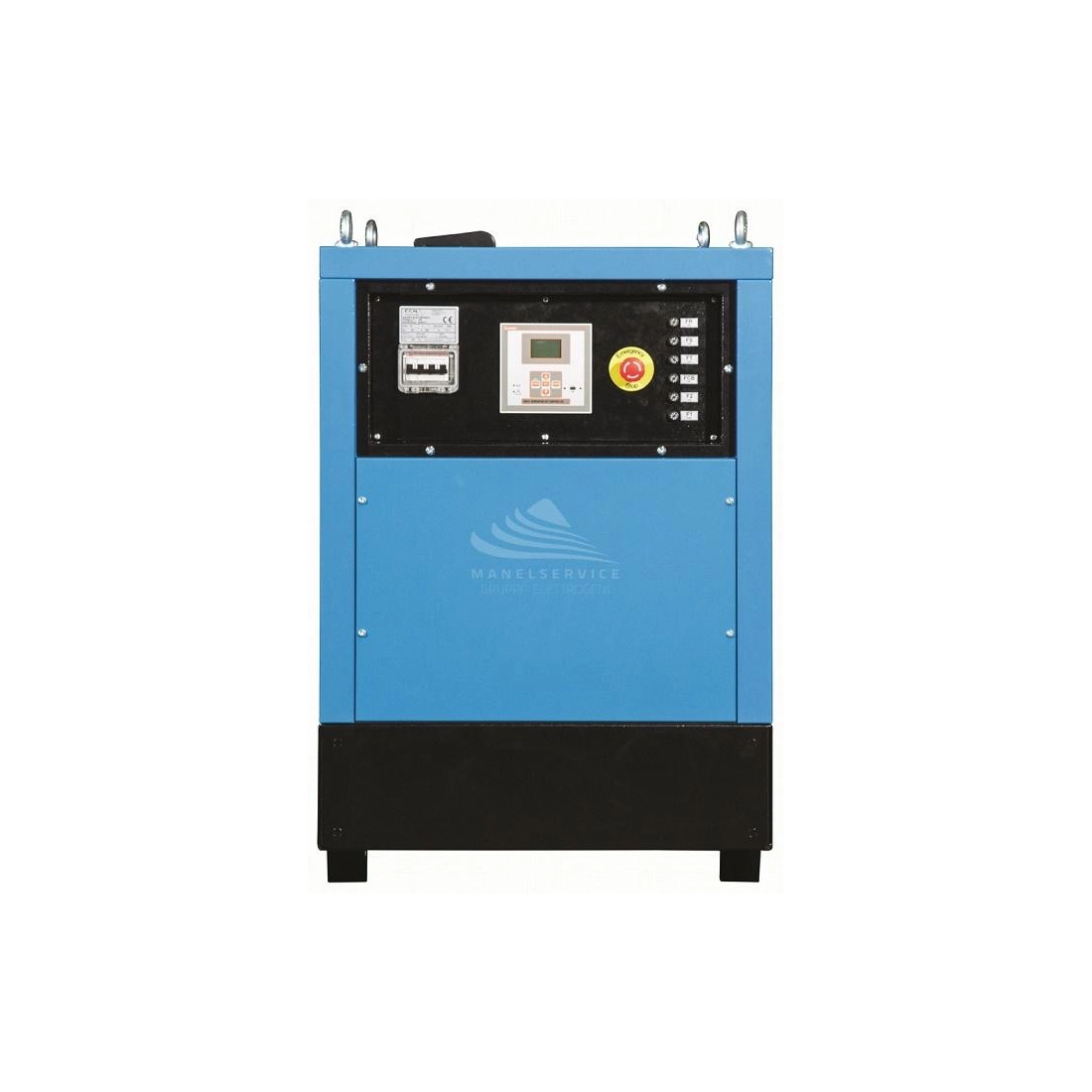

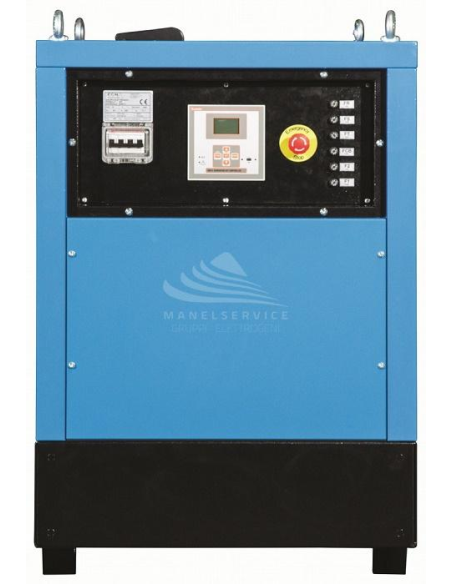

The image is purely indicative.
