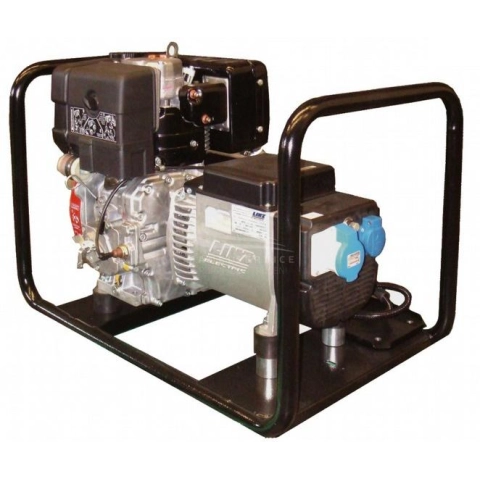

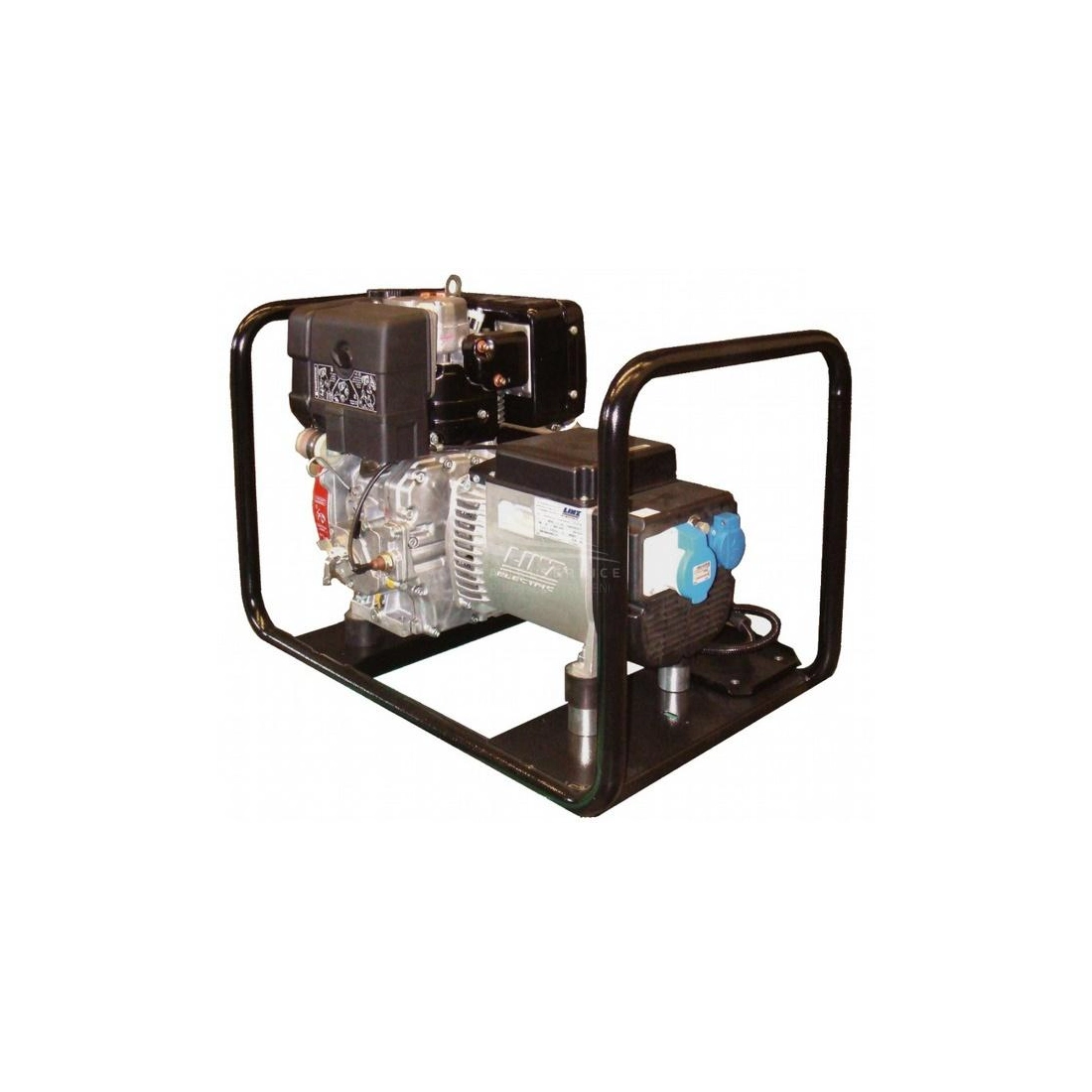

CGM 10DET - APERTO CON CENTRALINA MANUALE

CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 10DET APERTO MANUALE /

OUT OF PRODUCTION

Download Technical data sheet CGM 10DET

Phase
Single phase / Three phase
Height (mm)
700
Length (mm)
900
Starting system
Electric
Width (mm)
600
Engine manufacturer
Kohler
Engine
KOHLER 25LD 330/2
Poles
2
Sockets configuration
1 CEE 5P 400V 16A + 1 CEE 3P 230V 16A
Cooling
Air
Maximum power three phase (KW)
8.8
Continuous power three phase (KW)
8
Maximum power three phase (KVA)
11
Continuous power three phase (KVA)
10
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Engine capacity (cm³)
654
Number cylinders
2
Oil capacity (L)
1.5
Alternator
With brushes
Fuel tank capacity (L)
4
Consumption (L/h)
2 at 75% of the load
Running time (h)
2 al 75% del carico
Acoustic pressure
77 dB(A) at 7 m
Dry weight (Kg)
135
Silenced
No
Super silenced
No
ATS Switch device
No ATS
Voltage regulator
Compound
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
