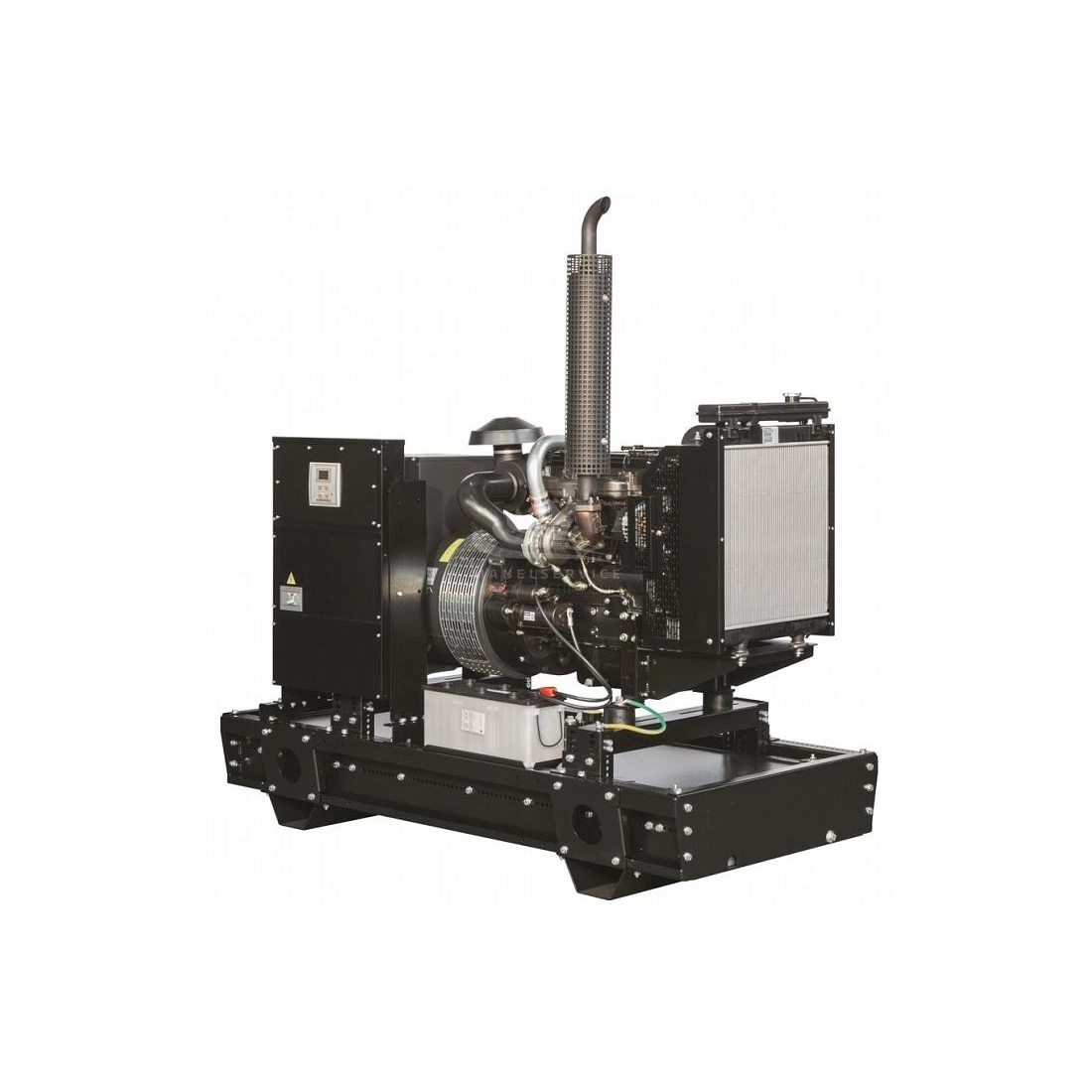

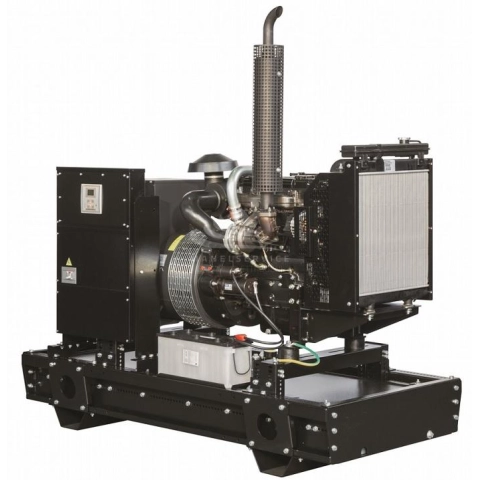

CGM 100DZ - APERTO CON CENTRALINA MANUALE
CGM 100DZ APERTO MANUALE
- Phase
- Three phase
- Protection degree
- IP44
- Height (mm)
- Length (mm)
- 2100
- Starting system
- Elettrico
- Width (mm)
- 1000
- Engine manufacturer
- Deutz
- Engine
- Deutz BF4M1013EC, turbo intercooler
- Poles
- 4
- Cooling
- Water
- Maximum power three phase (KW)
- 88
- Continuous power three phase (KW)
- 80
- Maximum power three phase (KVA)
- 110
- Continuous power three phase (KVA)
- 100
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1500
- Speed governor
- Mechanical
- Engine capacity (cm³)
- Number cylinders
- 4
- Cylinders' position
- In line
- Alternator
- Marelli, brushless
- Bore x stroke (mm)
- 108 x 130
- Fuel tank capacity (L)
- 120
- Consumption (L/h)
- 16.5
- Running time (h)
- 7.3
- Dry weight (Kg)
- 1150
- Silenced
- No
- Super silenced
- No
- ATS Switch device
- No ATS
- Voltage regulator
- AVR
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
