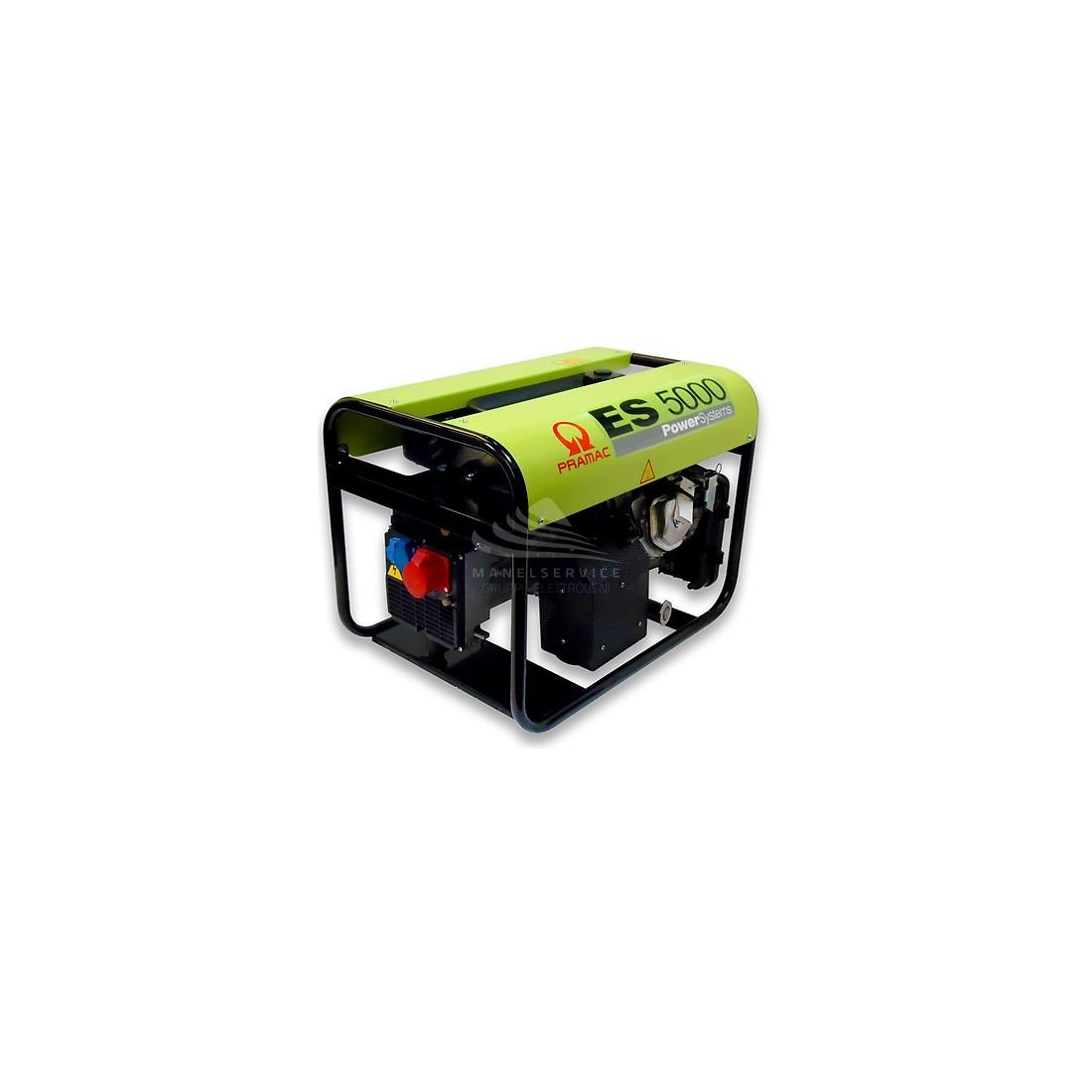

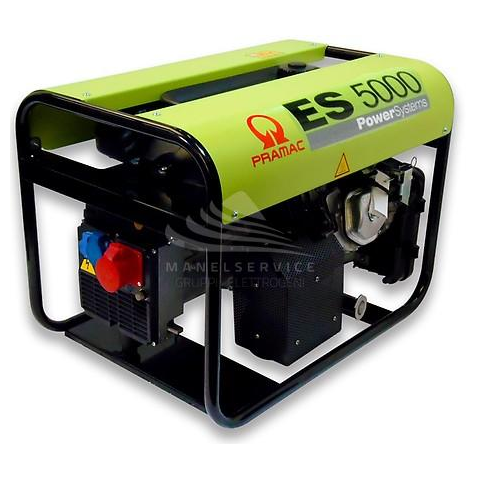

PRAMAC ES5000 THREE PHASE

Reference PE532TH1000

Maximum power Single-phase: 3.04 KW
Power continuous use Single-phase: 2.8 KW
Maximum power Three-phase: 5 KW
Power continuous use Three-phase: 4.3 KW
Fuel: Gasoline
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX270 Recoil
Starting: Tear-off
Consumption: 2.2 Lt/h at 100% of load
Length: 729 mm
Width: 500 mm
Height: 536 mm
Weight: 75 Kg
Compound

Download Scheda tecnica ES5000 Download Technical data ES5000

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.04
Continuous power single phase (KW): 2.8
Maximum power single phase (KVA): 3.8
Continuous power single phase (KVA): 3.5
Maximum power three phase (KW): 5
Continuous power three phase (KW): 4.3
Maximum power three phase (KVA)
Continuous power three phase (KVA): 5.4
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE IP44 - 1 x 230V 16A SCHUKO IP54 - 1 x 230V 16A 2P+T CEE IP44
Engine: Honda GX270 Recoil, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Ignition: Recoil
Starting system: Pull starter
Engine capacity (cm³): 270
Oil capacity (L): 1.1
Cooling: Air
Alternator: With brushes
Poles: 2
Fuel tank capacity (L): 11
Consumption (L/h): 1.6 at 75% of the load / 2.2 at 100% of the load
Running time (h): 6.6 at 75% of the load / 5 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 69 dB(A) at 7 m
Length (mm): 729
Width (mm): 500
Height (mm): 536
Dry weight (Kg): 75
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: Compound
Engine manufacturer: Honda

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
