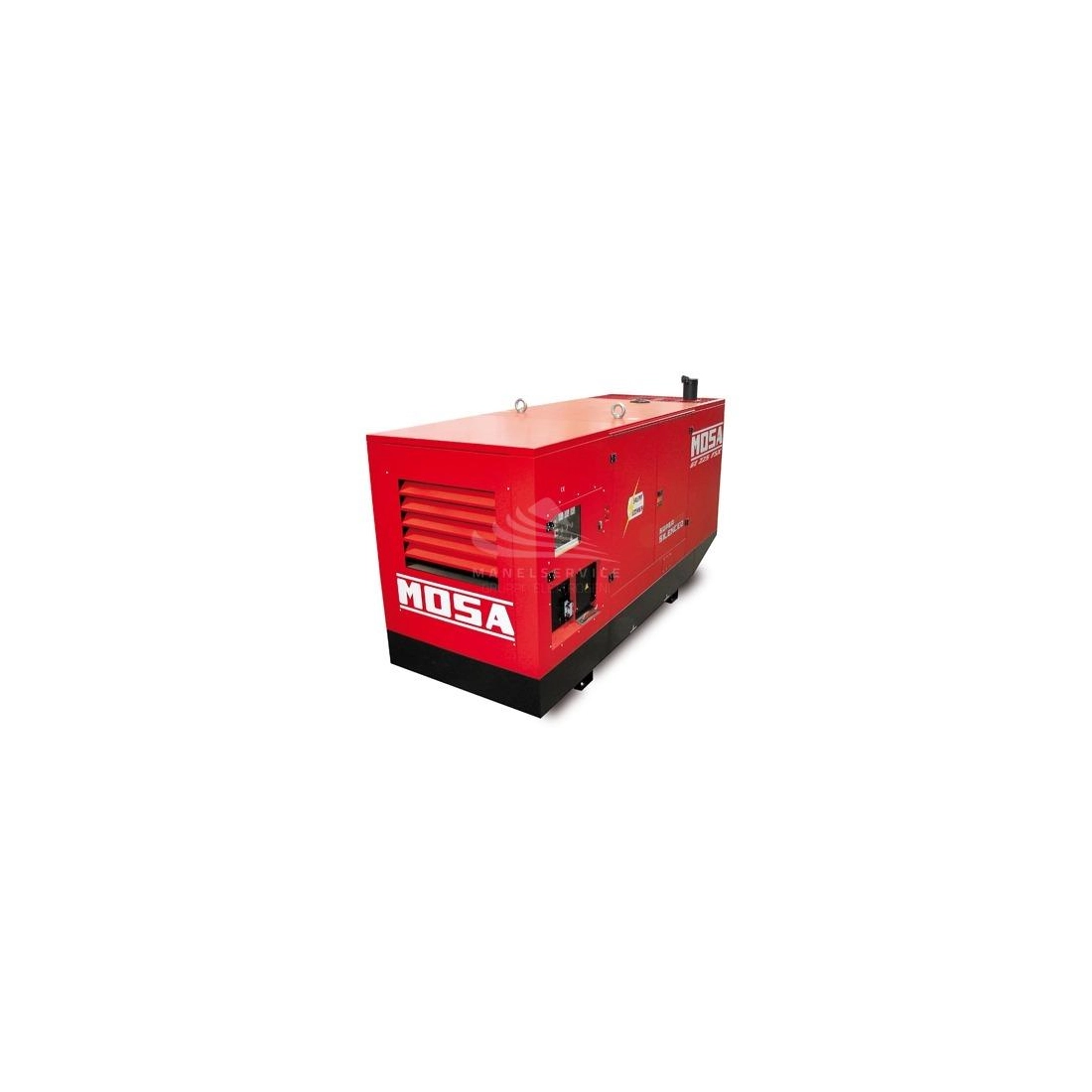

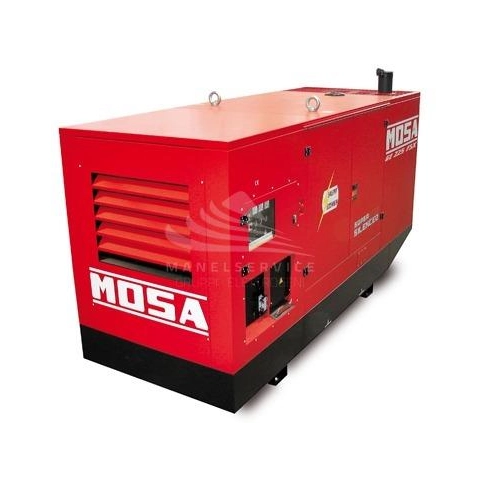

MOSA GE 225 FSX IVECO FPT NEF 67 TM7

Reference MOSA - Morsettiera-GE 225 FSX IVECO FPT

OUT OF PRODUCTION

Maximum three-phase power: 180 KW
Three-phase continuous use power: 163 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: IVECO FPT NEF 67 TM7
Starting: Electric
Consumption: 37 Lt/h at 75% load
Length: 3750 mm
Width: 1400 mm
Height: 2030 mm
Weight: 3220 Kg
AVR

Download Scheda tecnica GE 225 FSX Download Technical data GE 225 FSX Download Manuale GE 225 FSX Download Manual GE 225 FSX

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 180
Continuous power three phase (KW): 163
Maximum power three phase (KVA): 225
Continuous power three phase (KVA): 206
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 125A 3P+N+T - 1 x 400V 63A 3P+N+T - 1 x 400V 32A 3P+N+T - 1 x 400V 16A 3P+N+T - 1 x 230V 16A 2P+T o 1 x 230V 16A 2P+T SCHUKO
Engine: IVECO FPT NEF 67 TM7
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 6
Number cylinders: 6
Cooling: Water
Inyección: Direct
Alternator: Sincrono trifase, autoeccitato, autoregolato, senza spazzole
Fuel tank capacity (L): 425
Consumption (L/h): 37 at 75% of the load
Running time (h): 11.5 at 75% of the load
Acoustic power: 95 dB(A)
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 3750
Width (mm): 1400
Height (mm): 2030
Dry weight (Kg): 3220
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Brand

Super silenziato. Motore Diesel. Motore turbo aftercooler con regolazione elettronica di giri. Recupero interno fumi olio motore sistema blow-by chiuso. Protezione motore EP6. Alternatore sincrono trifase. Relè differenziale elettronico di serie. Interruttore magnetotermico quadripolare. Pompa estrazione olio. Basamento a tenuta liquidi con tappo di drenaggio. Due ganci centrali di sollevamento. Predisposto per uso con Quadro Automatico. Secondo direttive CE per rumore e sicurezza

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
