GREEN POWER GP 12000 ST/KG-A

Reference GP 12000 ST/KG-A

DISCONTINUED PRODUCT

Maximum three-phase power: 11 KVA NG / 12.1 KVA LPG

Maximum power Three-phase: 9.8 KW NG / 9.7 KW LPG

Fuel: Natural gas/LPG

Voltage: 230/400 V

Motor: KOHLER CH740

Starter: Automatic

Length: 940 mm

Width: 650 mm

Height: 900 mm

Weight: 255 Kg

AVRre

Download Scheda Tecnica GP 12000 ST/KG-A Download Technical Data GP 12000 ST/KG-A

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 9.8 NG / 9.7 GPL
Continuous power three phase (KW): 8 NG / 8.8 GPL
Maximum power three phase (KVA): 11 NG / 12.1 GPL
Continuous power three phase (KVA): 10 NG / 11 GPL
Fuel: LPG / Natural Gas
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: KOHLER CH740
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Automatico
Engine capacity (cm³): 725
Number cylinders: 2
Cooling: Air
Alternator: MECC ALTE ET20FS-160A
Poles: 4
Consumption (L/h): 3,3 m3/h NG / 5.2 L/h GPL
Acoustic pressure: 68 dB(A) at 7 m
Length (mm): 940
Width (mm): 650
Height (mm): 900
Dry weight (Kg): 255
Inverter: No
AVR: Yes
Compound: No
Silenced: Yes
Super silenced: Yes

Brand

GREEN POWER GP 12000 ST/KG-A

Model: supersilenced 68dB(A)±3 at 7mt

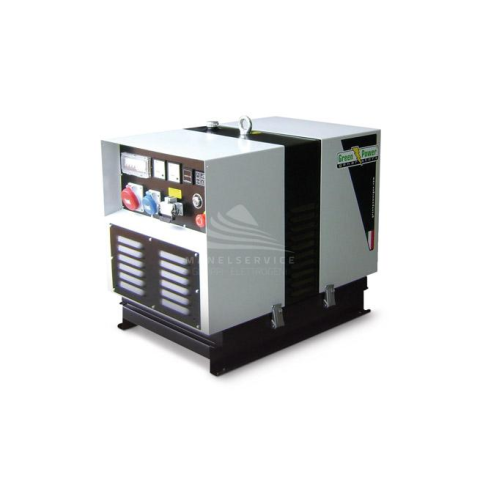

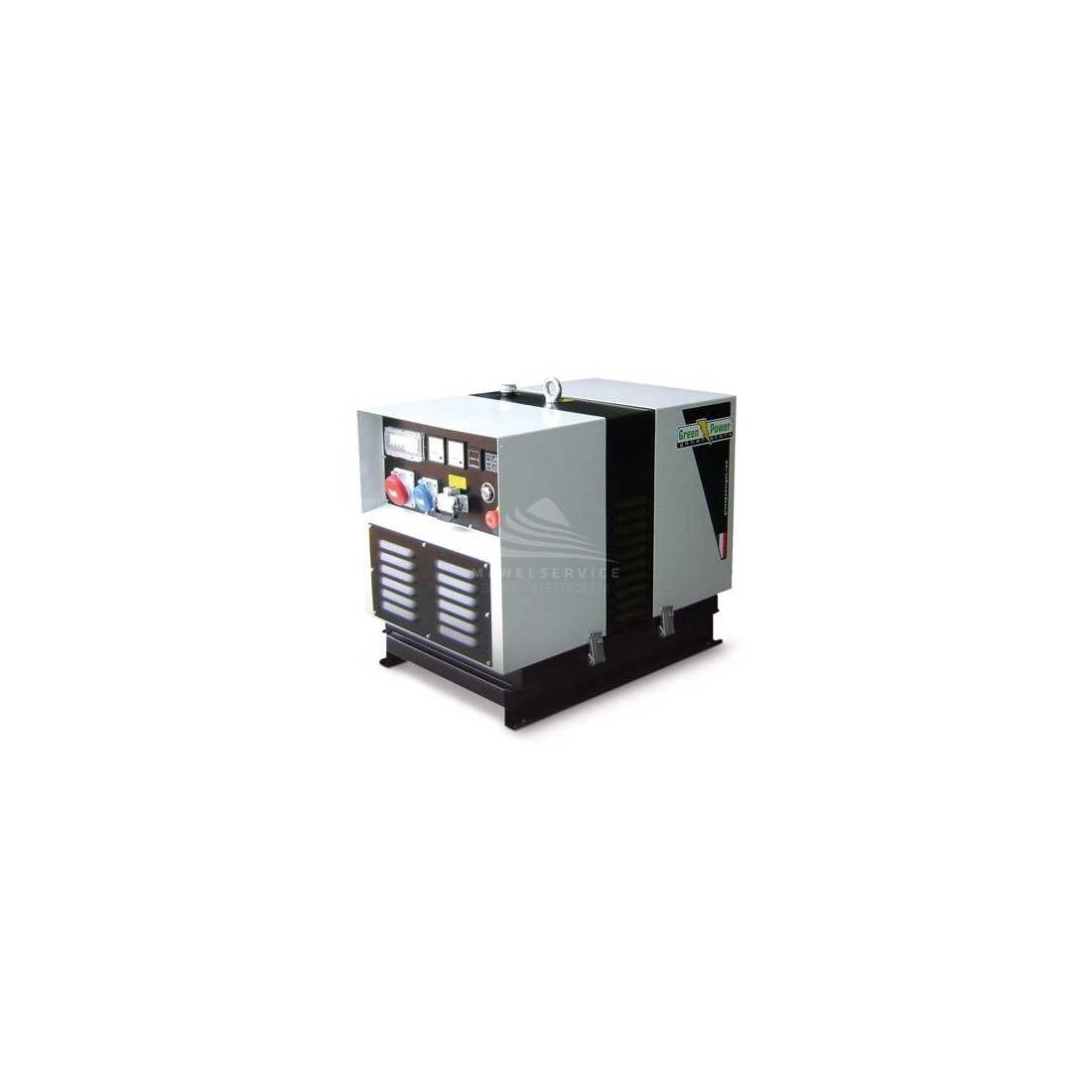

RAL7035 Engine/alternator monoblock unit coupled through monosupport couplings, installed on a welded steel baseframe,complete with antivibration mountings. Soundproof canopy that can be opened in two section, made of 20/10 sheet steel, soundproof material, internal silencer, handles and stay.

Electronic control unit and a programmable microprocessor, LCD display with backlight OFF/AUTO/TEST/MAN controls, Display of all parameters of the engine and alternator. Diagnostic information of the gen set, Automatic and manual control of the contactors, Mains voltage (on 3 phases), gen set voltage (on 3 phases), 3 gen set current, mains and gen set frequency, RPM counter, Vdc Battery, D+Voltage, kVA. 84 alarm messages available. Alarm history, Overvoltage / under voltage shutdown, overfrequency shutdown, overload shutdown. Serial interface RS 232 for PC.

Technical data for GREEN POWER GP 12000 ST/KG-A

Maximum three-phase power: 11 KVA NG / 12.1 KVA LPG

Maximum power Three-phase: 9.8 KW NG / 9.7 KW LPG

Fuel: Natural gas/LPG

Voltage: 230/400 V

Motor: KOHLER CH740

Starter: Automatic

Length: 940 mm

Width: 650 mm

Height: 900 mm

Weight: 255 Kg

AVRre

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
